Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BODY GROUND)

Disconnect the transmission control switch connector of shift lever assy.
Measure the resistance according to the value (s) in the table below.

Fig 1: Identifying Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

TESTER CONNECTION RESISTANCE SPECIFICATION

Tester Connection	Specified Condition
4-Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
OK: GO TO NEXT STEP.

INSPECT TRANSMISSION CONTROL SWITCH
1. Measure the resistance according to the value (s) in the table below.
Standard:

Fig 3: Resistance Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE TRANSMISSION CONTROL SWITCH
2. OK: GO TO NEXT STEP.

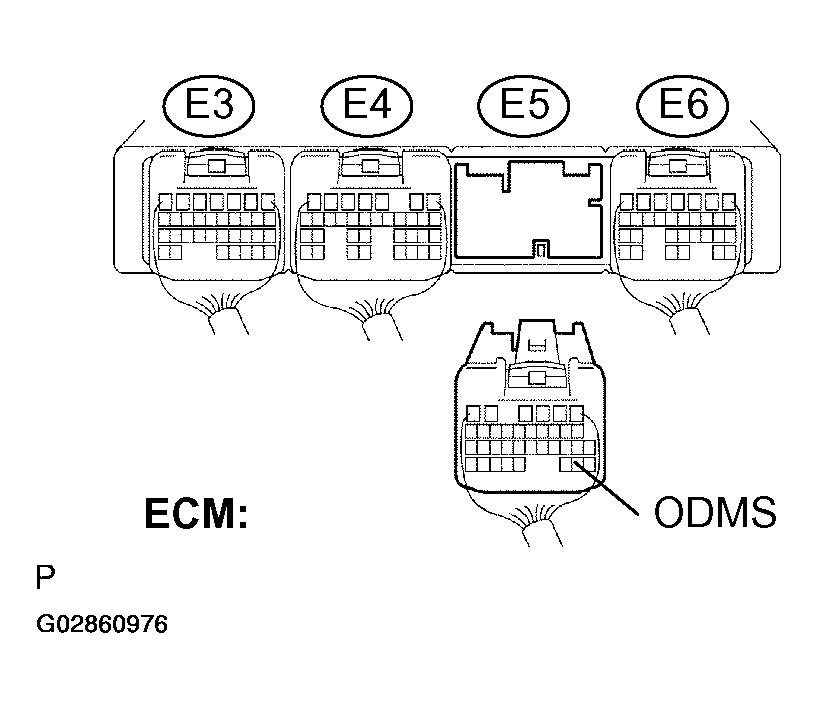

CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH-ECM)
1. Connect the transmission control switch connector of shift lever assy.
2. Disconnect the ECM connector.
3. Measure the resistance according to the value (s) in the table below.
Standard:

Fig 5: Resistance Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
