Electronic Controlled Automatic Transaxle [ECT] (APR., 2003): Location

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

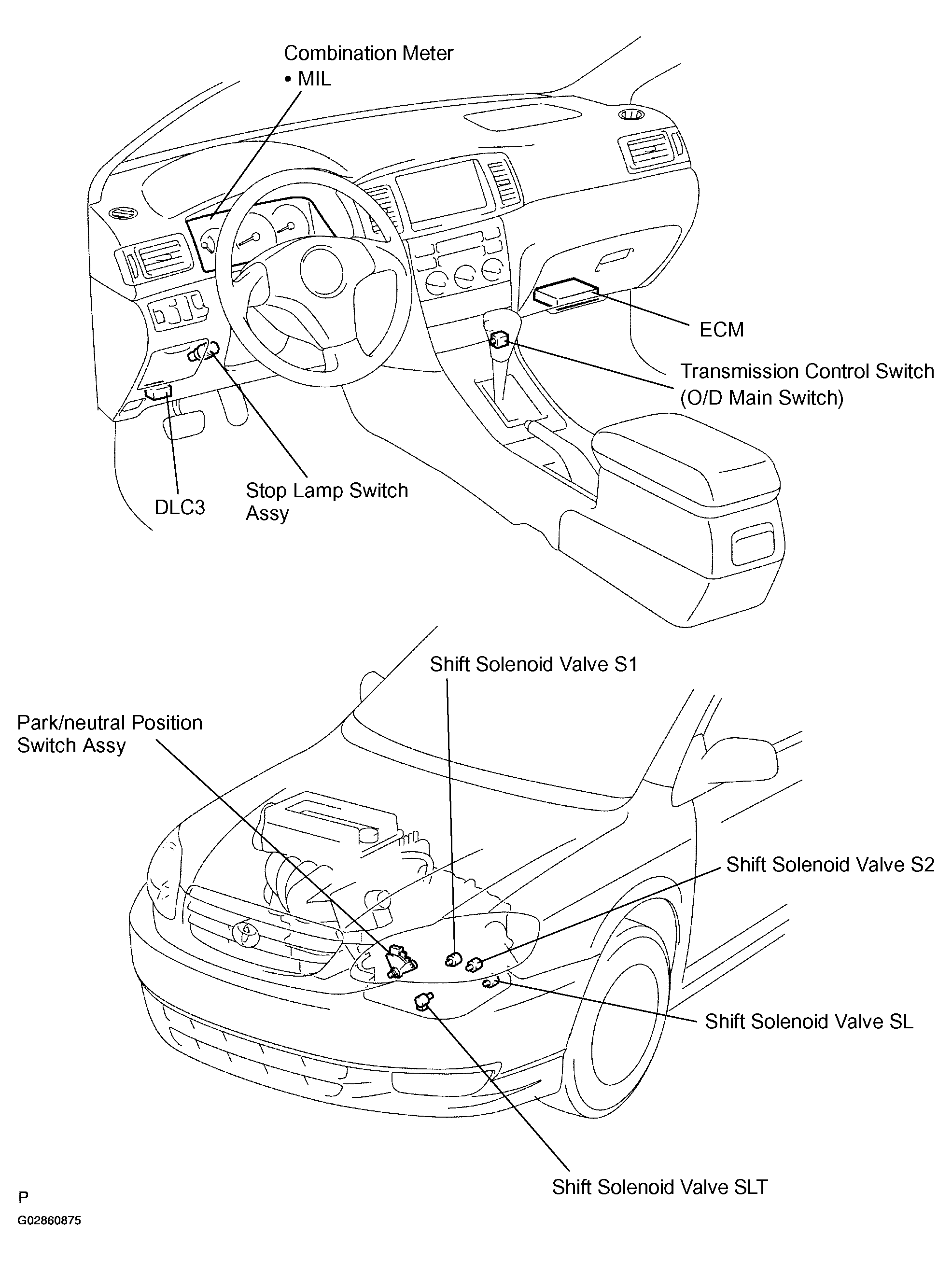

Fig 1: Identifying Component Location Of Electronic Controlled Automatic Transaxle
G02860875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
