Electronic Controlled Automatic Transaxle [ECT] (APR., 2003): Initialization

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. RESET MEMORY
    CAUTION: Perform the RESET MEMORY (AT initialization) when replacing the automatic transaxle assy, engine assy or ECM.
    NOTE: Hand-held tester only
    1. Turn the ignition switch off.
    2. Connect the hand-held tester to the DLC3.
    3. Turn the ignition switch to the ON position.
    4. Perform the reset memory procedure from the ENGINE menu.
    CAUTION: After performing the RESET MEMORY, be sure to perform the ROAD TEST described earlier.

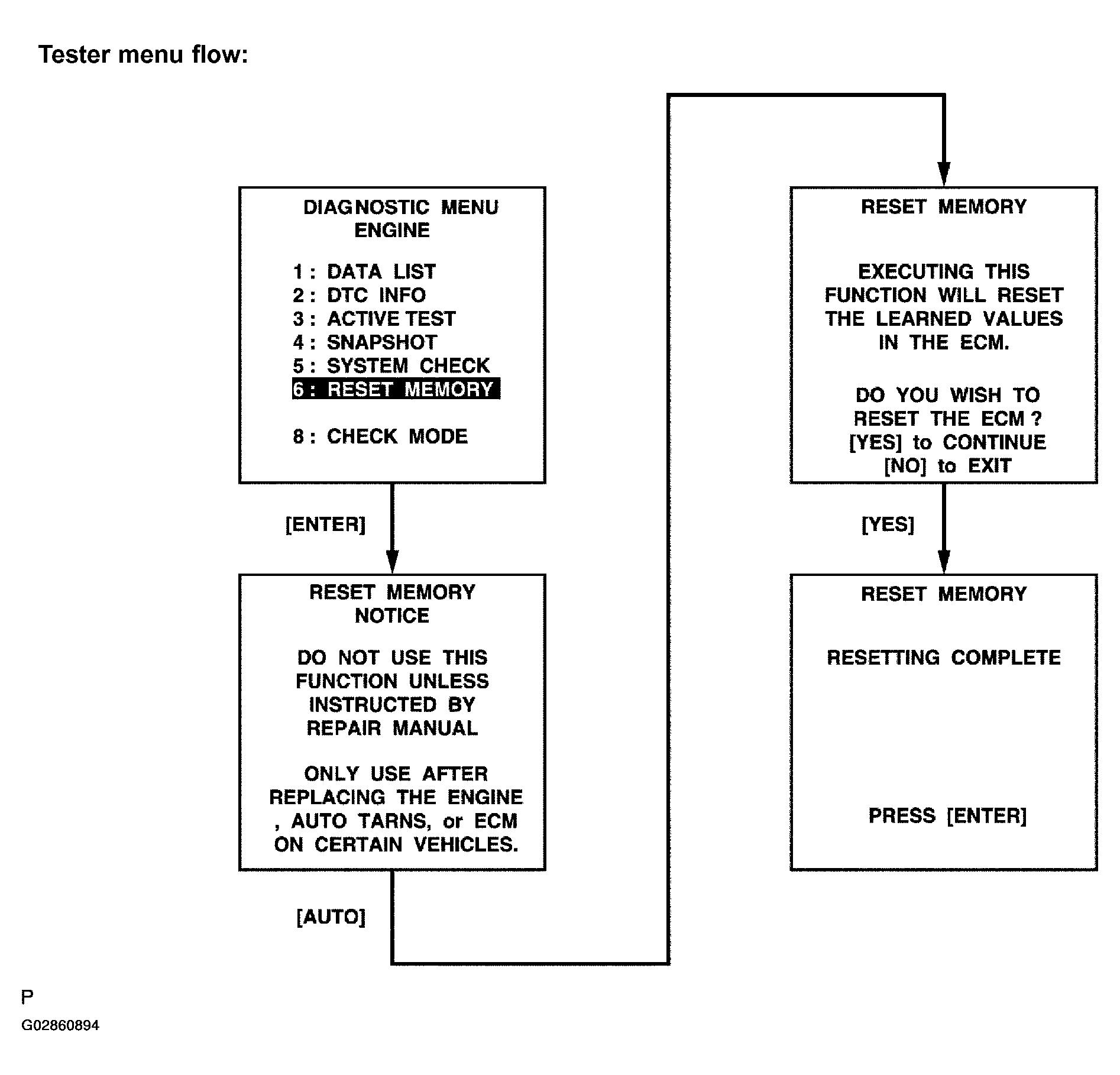

    Fig 1: Tester Menu Flow Chart
    G02860894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
