Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

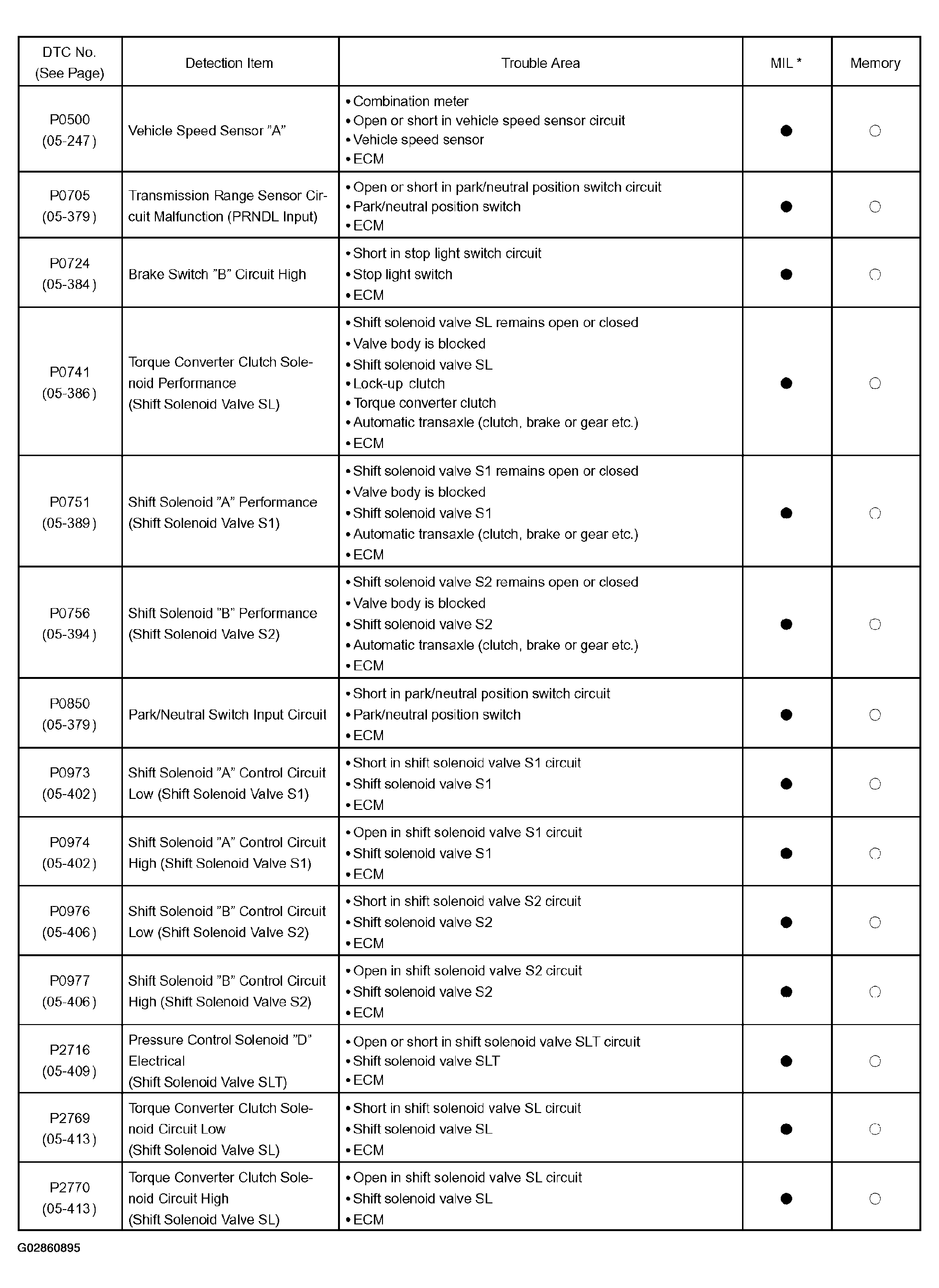

If a DTC is displayed during the DTC check, check the circuit listed in the table below and proceed to the page given.
*:Black Dot...MIL light up
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC P0705, P0850 | TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT) & PARK/NEUTRAL SWITCH INPUT CIRCUIT |
| DTC P0724 | BRAKE SWITCH "B" CIRCUIT HIGH |
| DTC P0741 | TORQUE CONVERTER CLUTCH SOLENOID PERFORMANCE (SHIFT SOLENOID VALVE SL) |
| DTC P0751 | SHIFT SOLENOID "A" PERFORMANCE (SHIFT SOLENOID VALVE S1) |
| DTC P0756 | SHIFT SOLENOID "B" PERFORMANCE (SHIFT SOLENOID VALVE S2) |
| DTC P0973, P0974 | SHIFT SOLENOID "A" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE S1) |
| DTC P0976, P0977 | SHIFT SOLENOID "B" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE S2) |
| DTC P2716 | PRESSURE CONTROL SOLENOID "D" ELECTRICAL (SHIFT SOLENOID SLT) |
| DTC P2769, P2770 | TORQUE CONVERTER CLUTCH SOLENOID CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE SL) |
