Typical Malfunction Thresholds

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

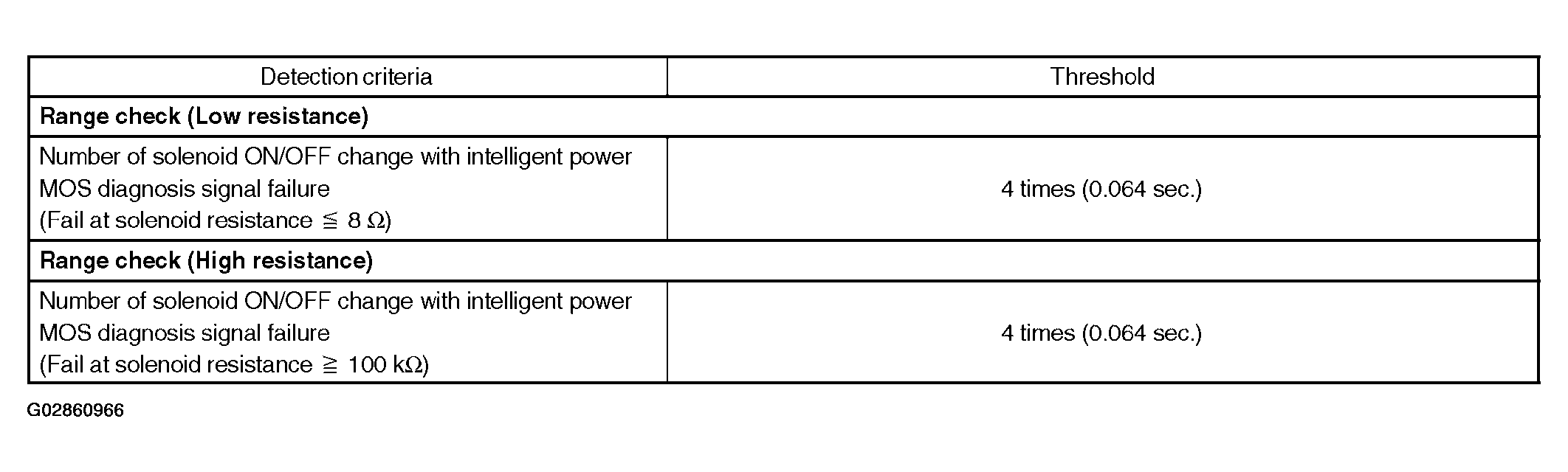

Fig 1: Typical Malfunction Thresholds Chart
G02860966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
