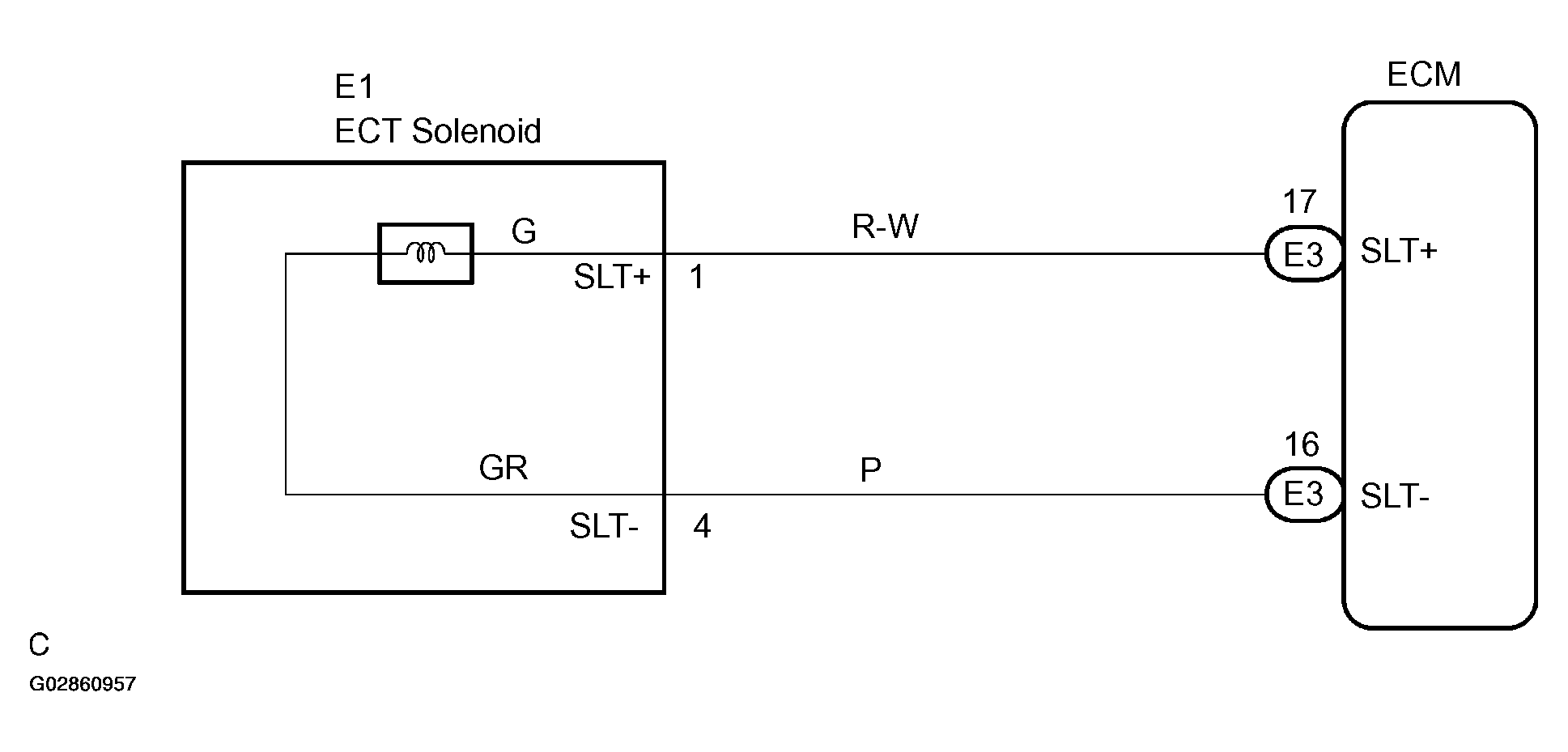

DTC P2716: Pressure Control Solenoid "D" Electrical (Shift Solenoid SLT): Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
