Circuit Description

The throttle pressure that is applied to the primary regulator valve (which modulates the line pressure) causes the solenoid valve SLT, under electronic control, to precisely and minutely modulate and generate the line pressure according the extent of the accelerator pedal depressed or the output of engine power.

Fig 1: Line And Control Pressure Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This controls the line pressure and provides smooth shifting. Upon receiving a signal of the throttle valve opening angle, the ECM controls the line pressure by sending a predetermined (*) duty ratio to the solenoid valve, modulating the line pressure and generating throttle pressure.

(*): Duty Ratio

The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non-continuity, then

Duty Ratio=A/(A+B) x 100 (%)

Fig 2: Duty Ratio Cycle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

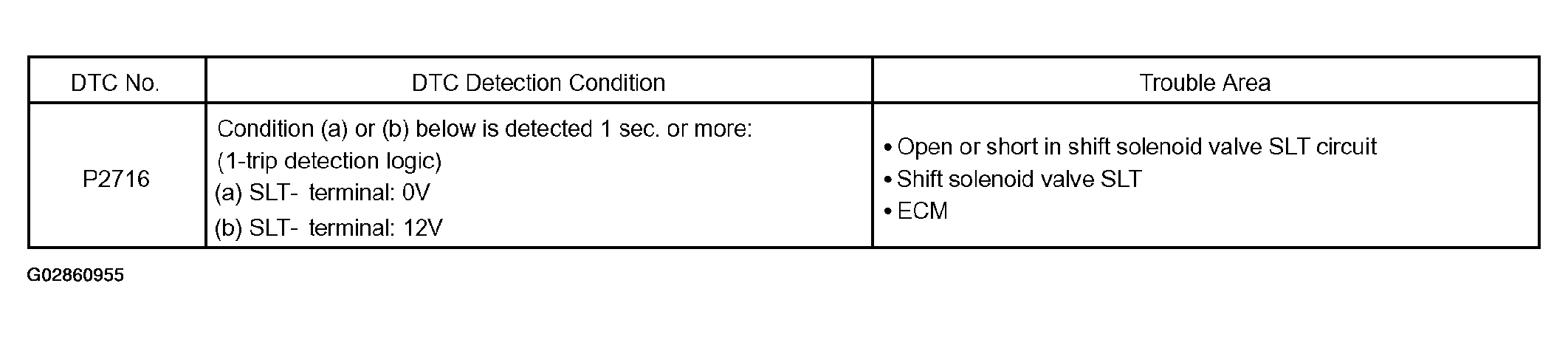

Fig 3: DTC Condition Detection Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
