Section 465 (Automatic Transmission Electronic Controlled (ECT) - Diagnostics)
>>
Electronic Controlled Automatic Transaxle [ECT] (APR., 2003)
>>
DTC P0756: Shift Solenoid "B" Performance (Shift Solenoid Valve S2)
>>
Typical Malfunction Thresholds
Typical Malfunction Thresholds
WARNING:
This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

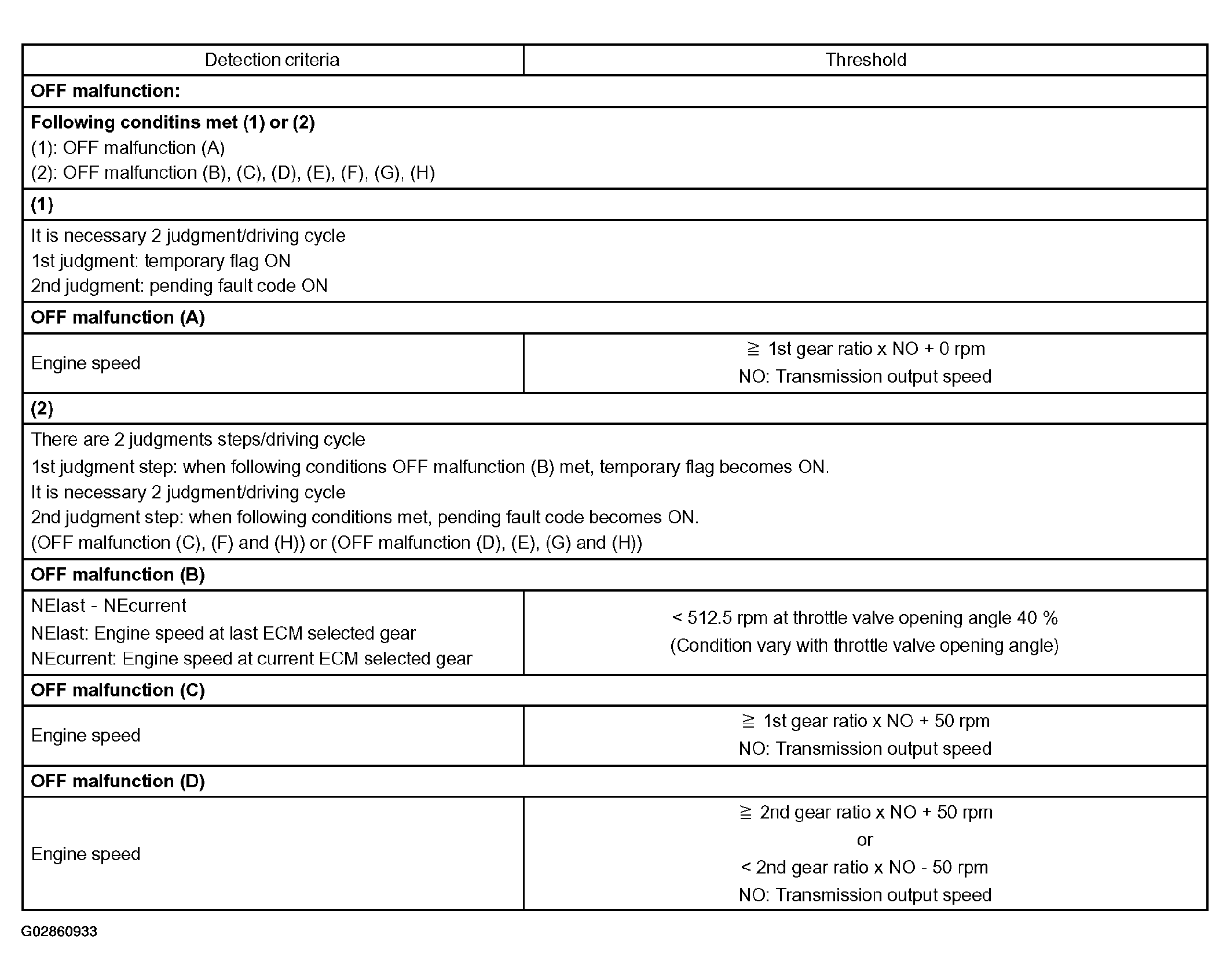

Fig 1: Typical Malfunction Thresholds Chart (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

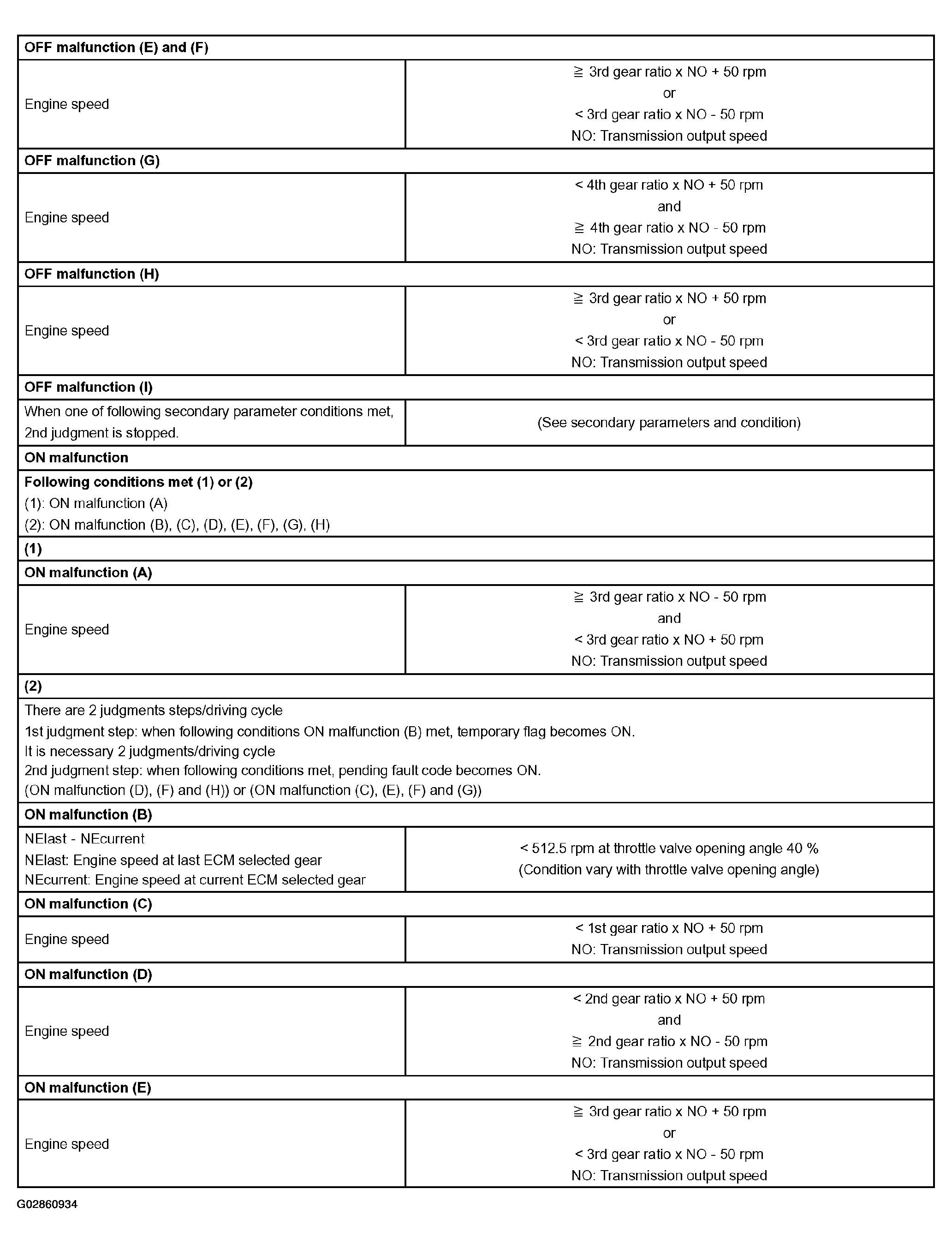

Fig 2: Typical Malfunction Thresholds Chart (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

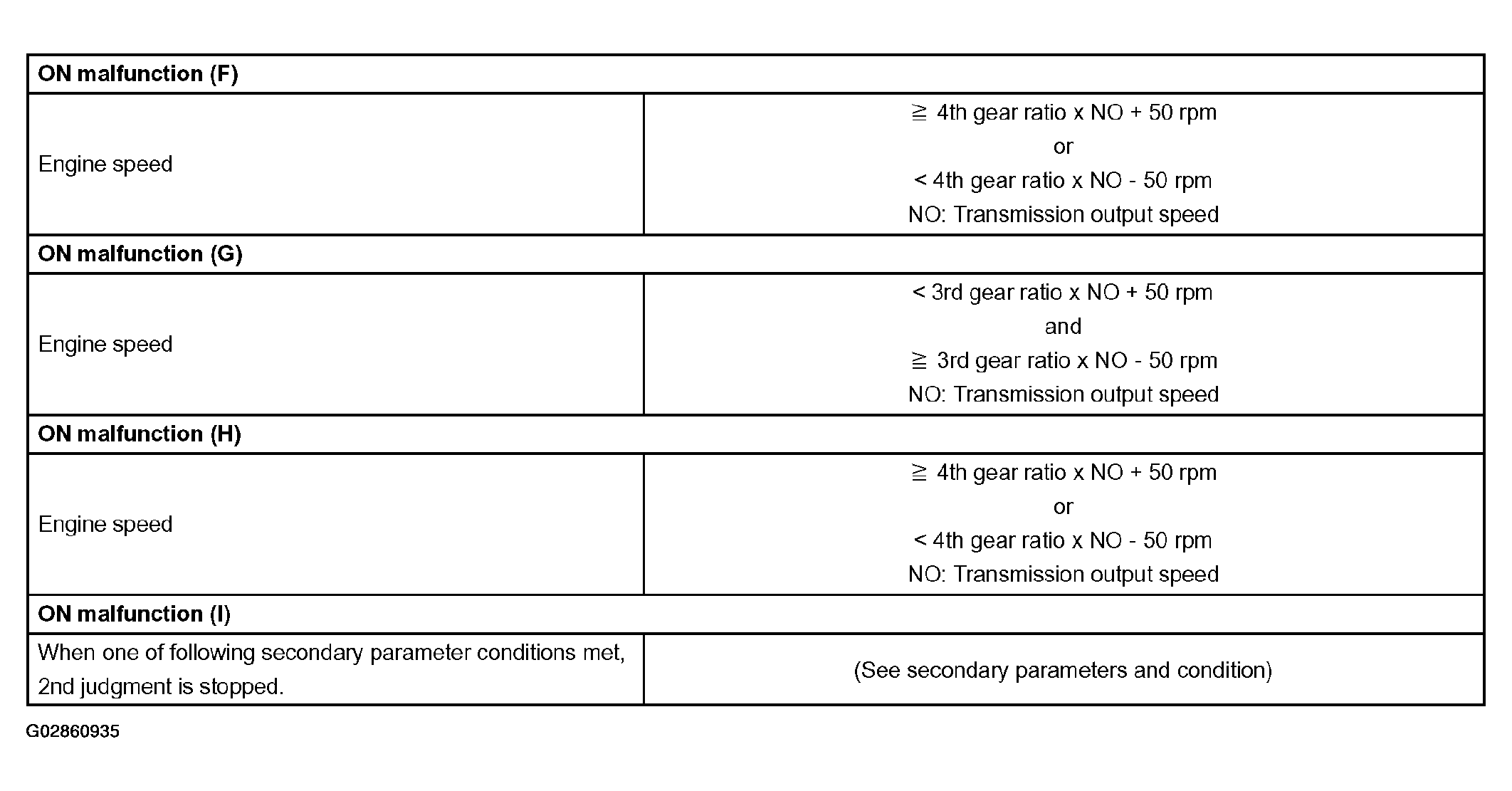

Fig 3: Typical Malfunction Thresholds Chart (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
