Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT PARK/NEUTRAL POSITION SWITCH ASSY
1. Disconnect the park/neutral position switch connector.
2. Measure resistance according to the value (s) in the table below when the shift lever is moved to each position.
Fig 1: Disconnecting Park/Neutral Position Switch Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

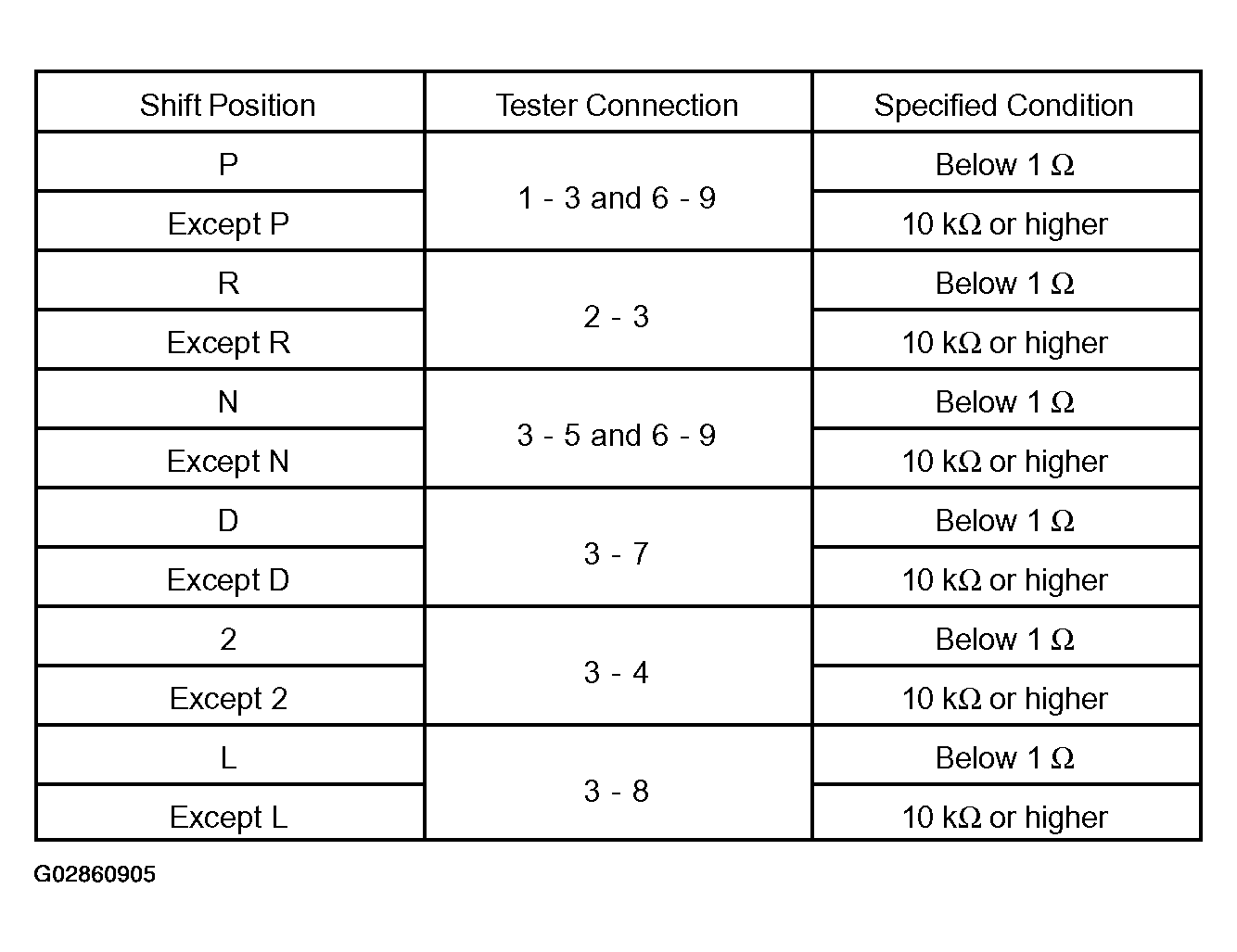

Fig 2: Resistance Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE PARK/NEUTRAL POSITION SWITCH ASSY (See REPLACEMENT )
2. OK: GO TO NEXT STEP.
CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ECM)
1. Connect the park/neutral position switch connector.
2. Turn the ignition switch to the ON position, and measure the voltage according to the value (s) in the table below when the shift lever is moved to each position.

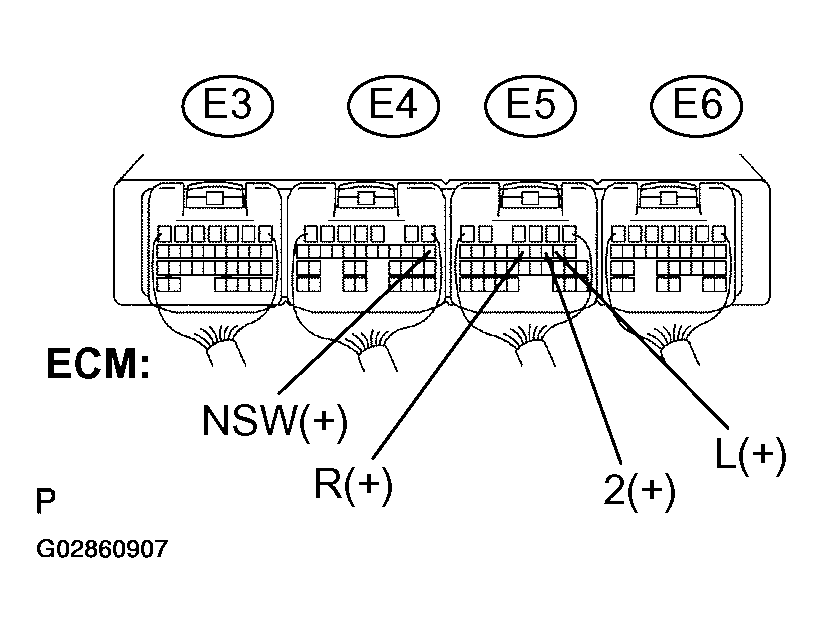

Fig 3: Checking Harness And Connector (Park/Neutral Position Switch - ECM)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

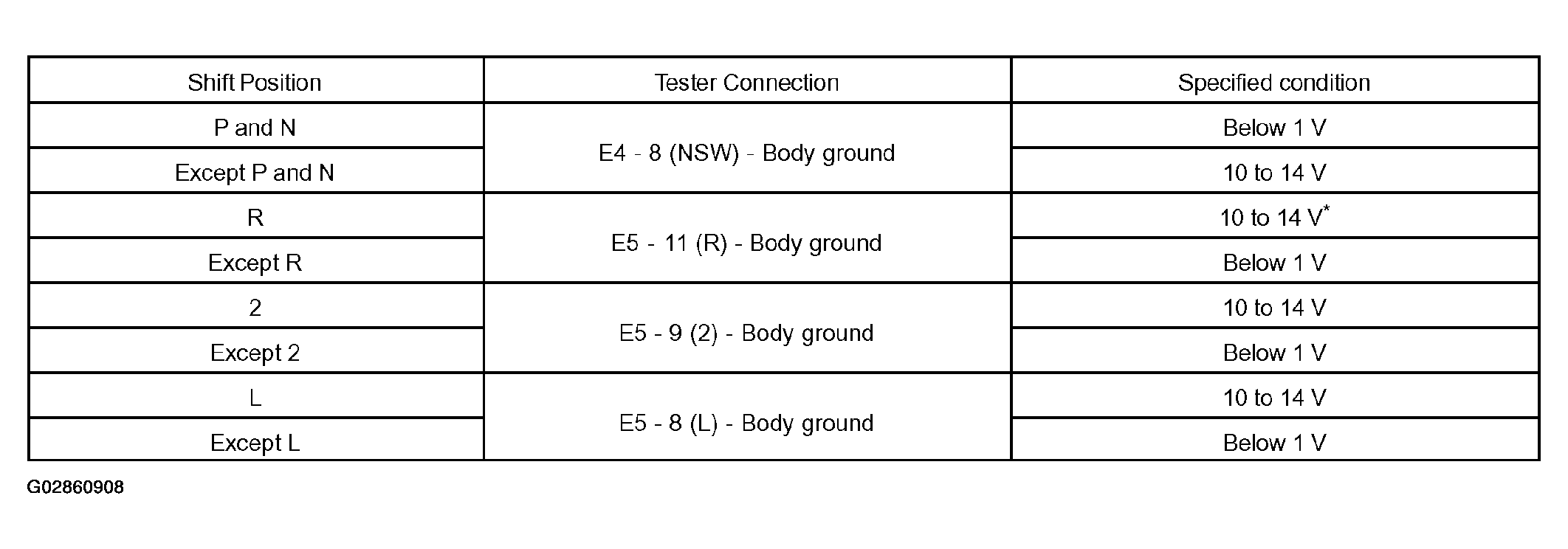

Fig 4: Terminal Condition Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*: The voltage will drop slightly due to lighting up of the back up light.
1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
2. OK: REPLACE ECM (See REPLACEMENT )
