Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

The park/neutral position switch detects the shift lever position and sends signals to the ECM.

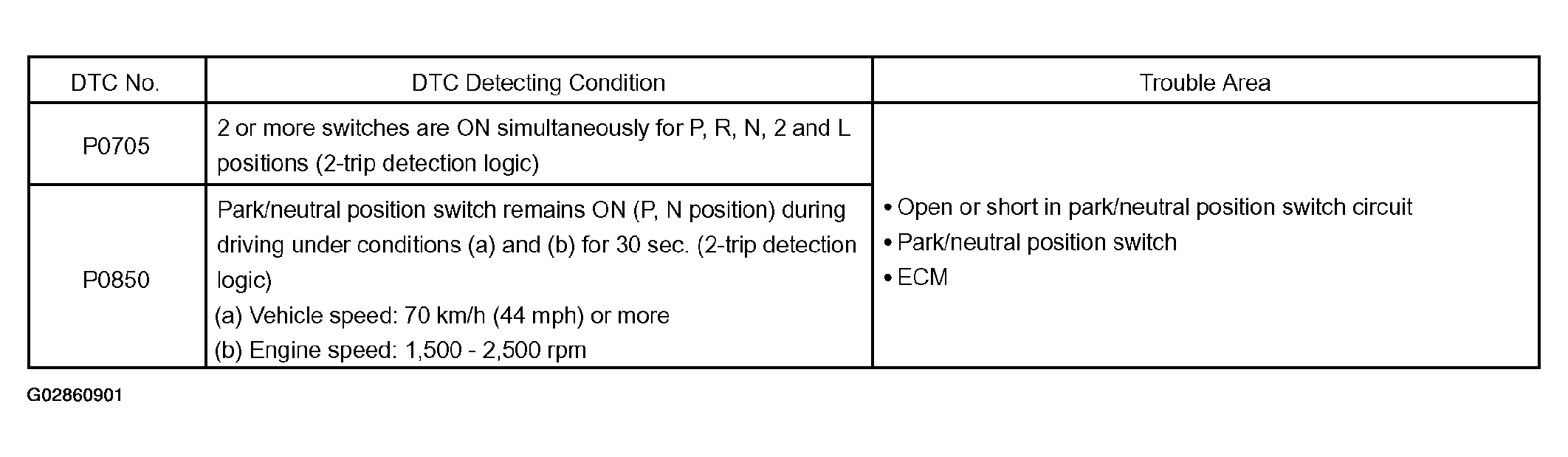

Fig 1: DTC Condition Detection Chart
G02860901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
