Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

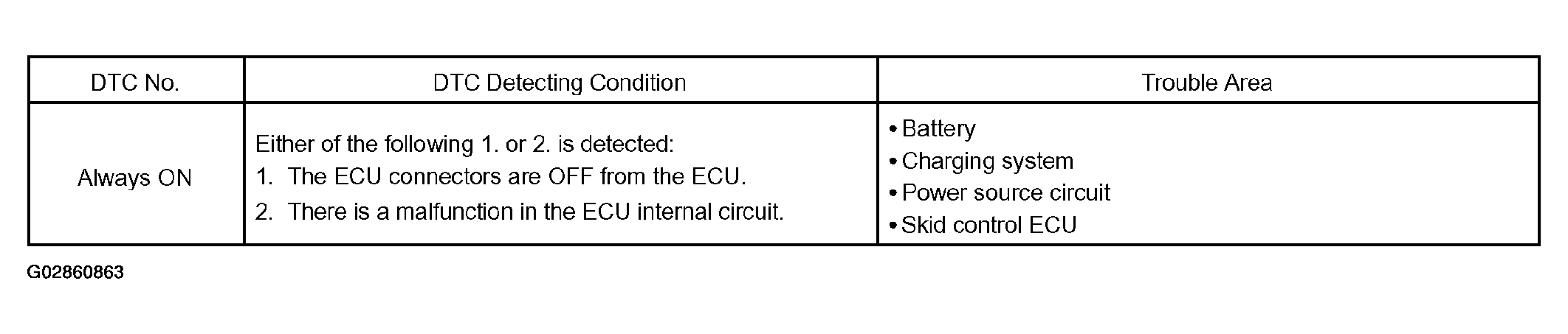

Fig 1: DTC - Trouble Detection Chart
G02860863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

There is a case that hand-held tester cannot be used when ECU is abnormal.
