DTC C1251/51: Pump Motor Is Locked/Open Circuit In Pump Motor Ground: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

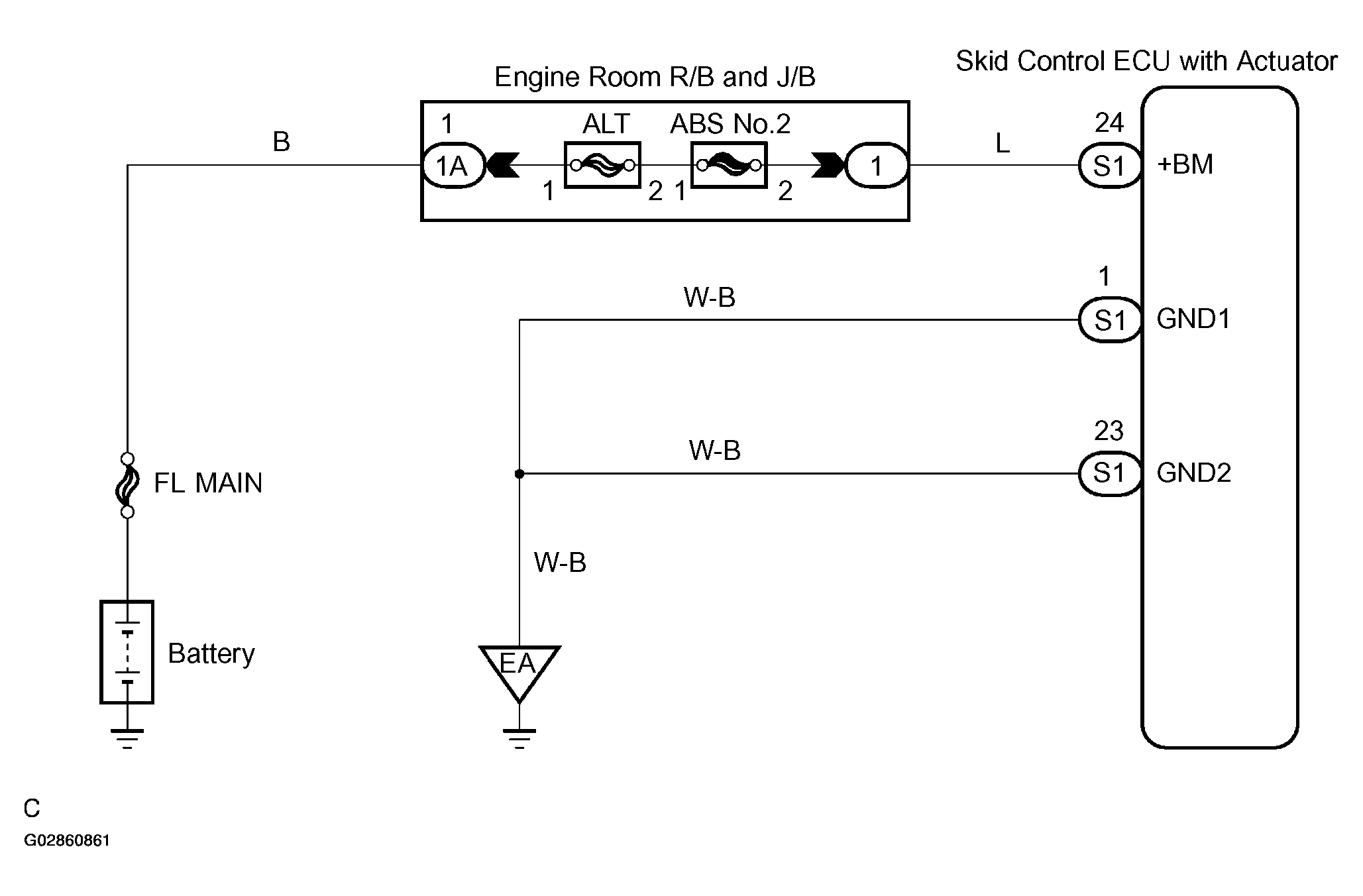

Fig 1: Wiring Diagram - ABS Pump Motor
G02860861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
