DTC C0278/11, C0279/12: Open/Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

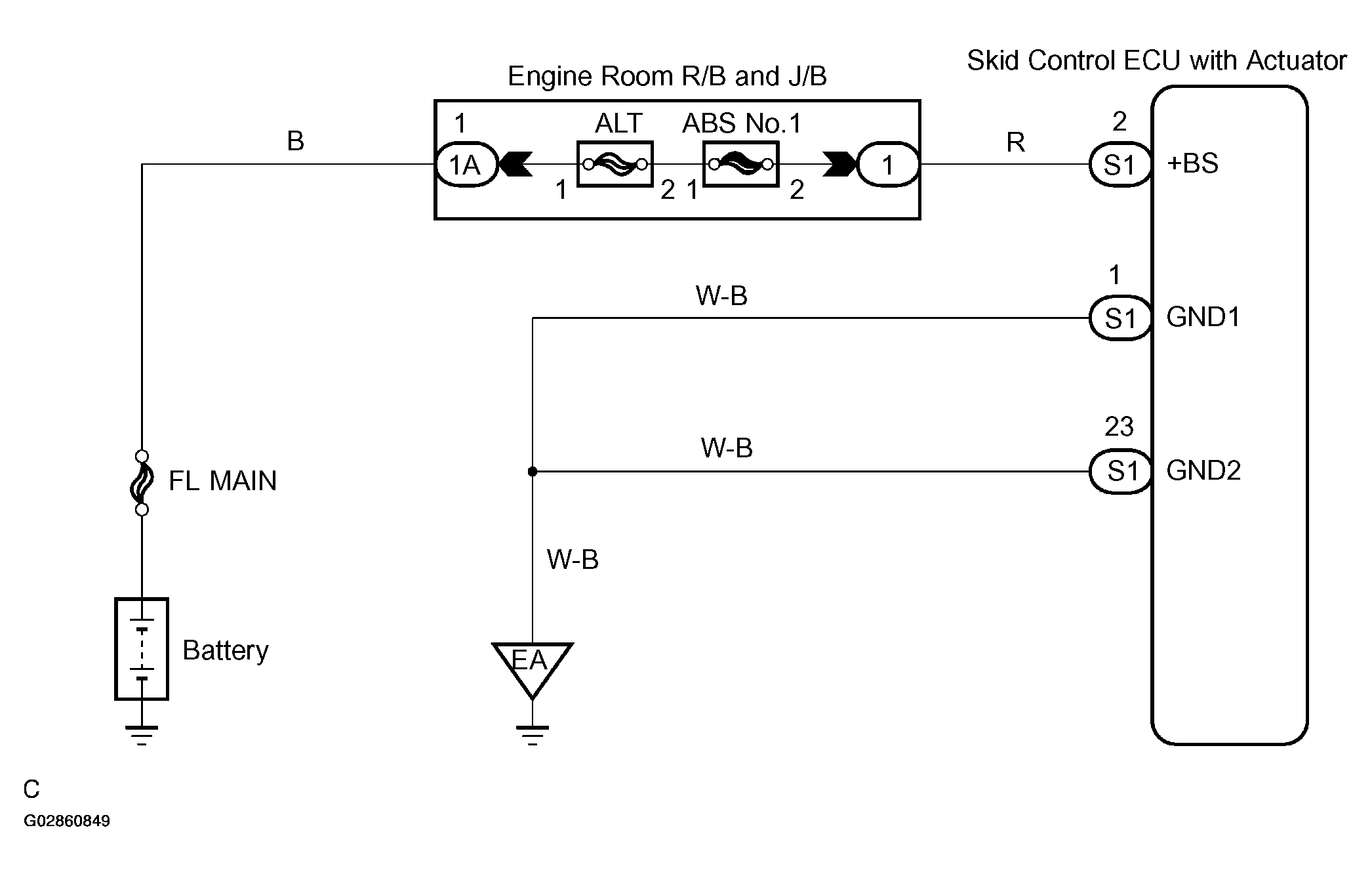

Fig 1: Wiring Diagram - ABS Solenoid Relay Circuit
G02860849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
