Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

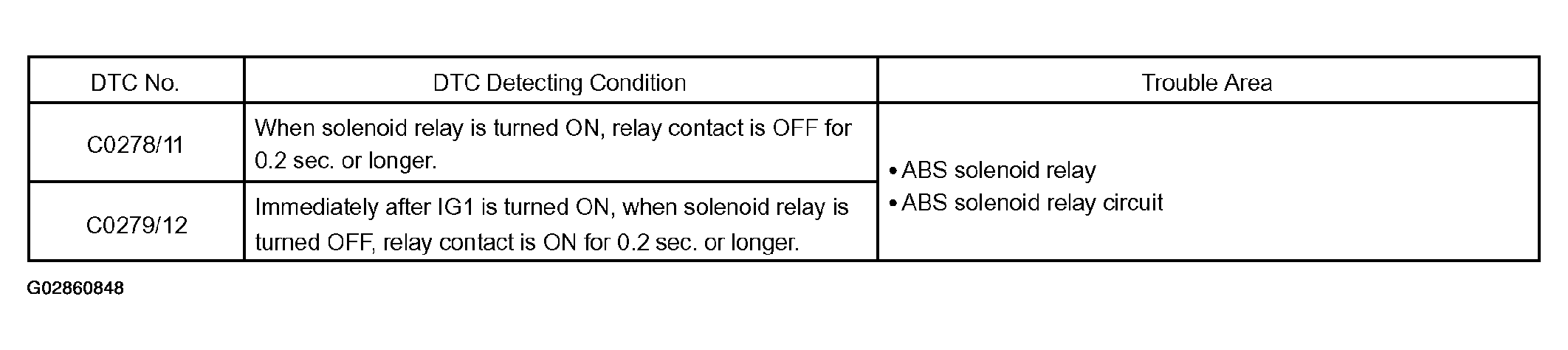

Fig 1: DTC - C0278/11 And C0279/12 Trouble Detection Chart
G02860848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
