Section 463 (Engine Control System (SFI) - Diagnostics)
>>
Terminals Of ECM
Terminals Of ECM
WARNING:
This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

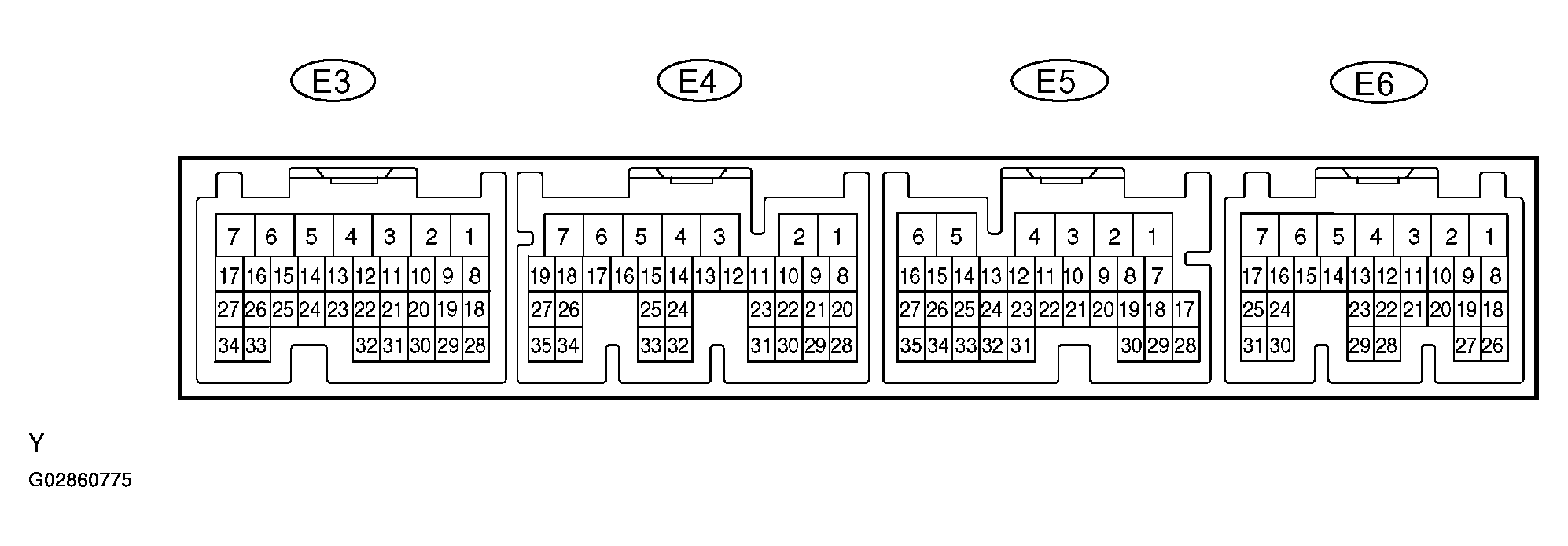

Fig 1: Locating Terminals Of ECM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

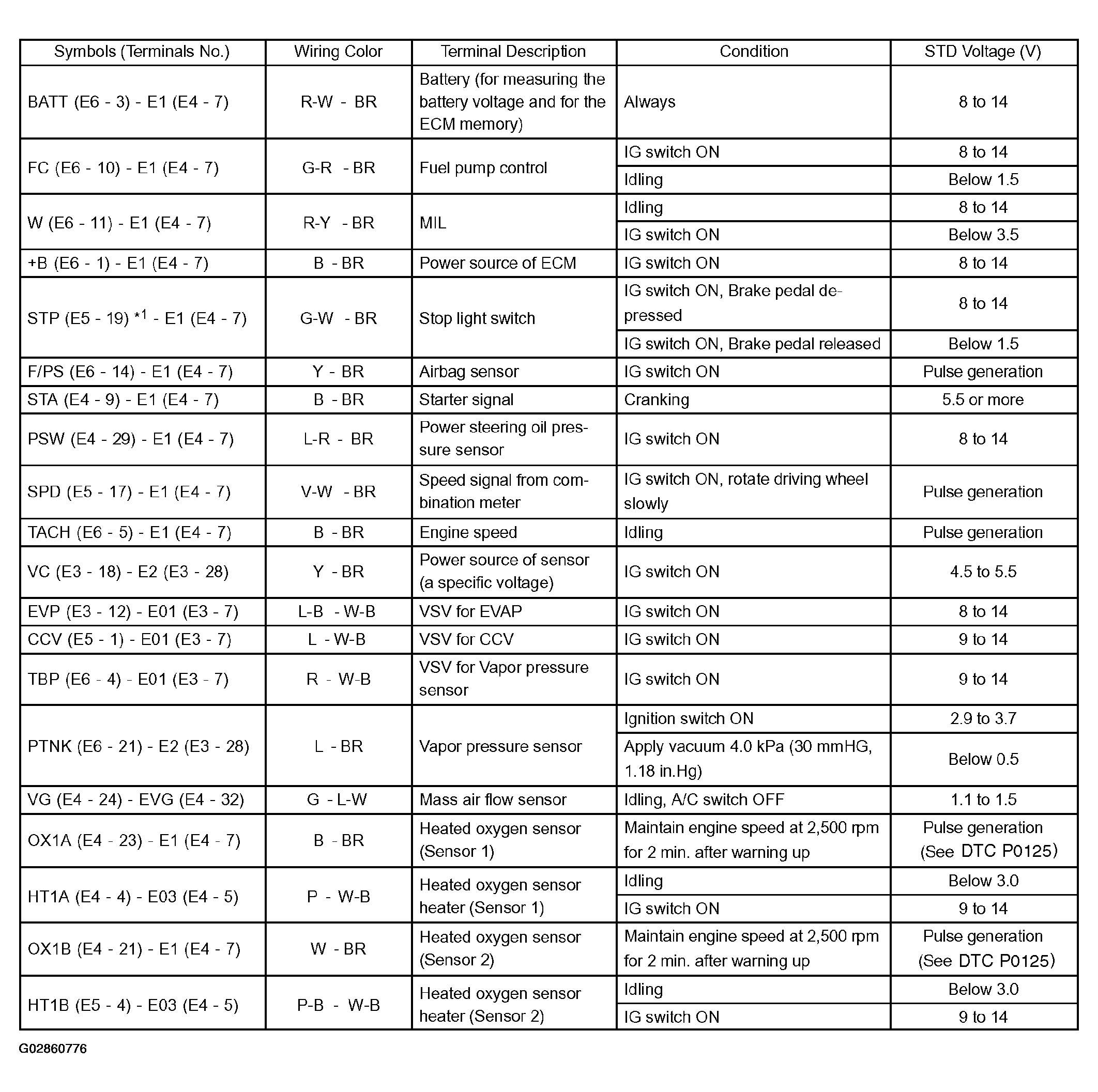

Fig 2: ECM Terminals Connector Voltage Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

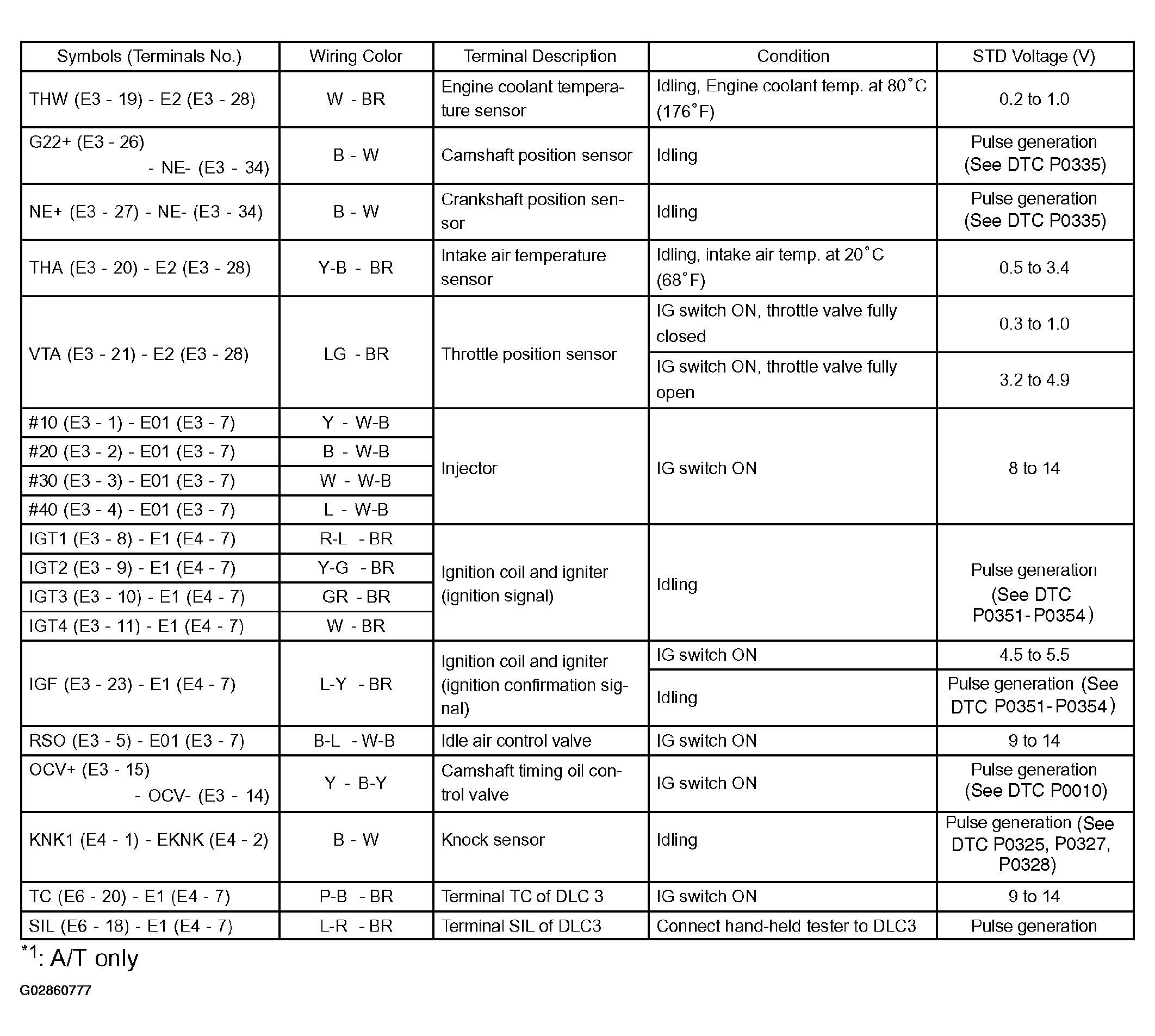

Fig 3: ECM Terminals Connector Voltage Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
