Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in the check mode, check the circuit for the codes listed in the table below.

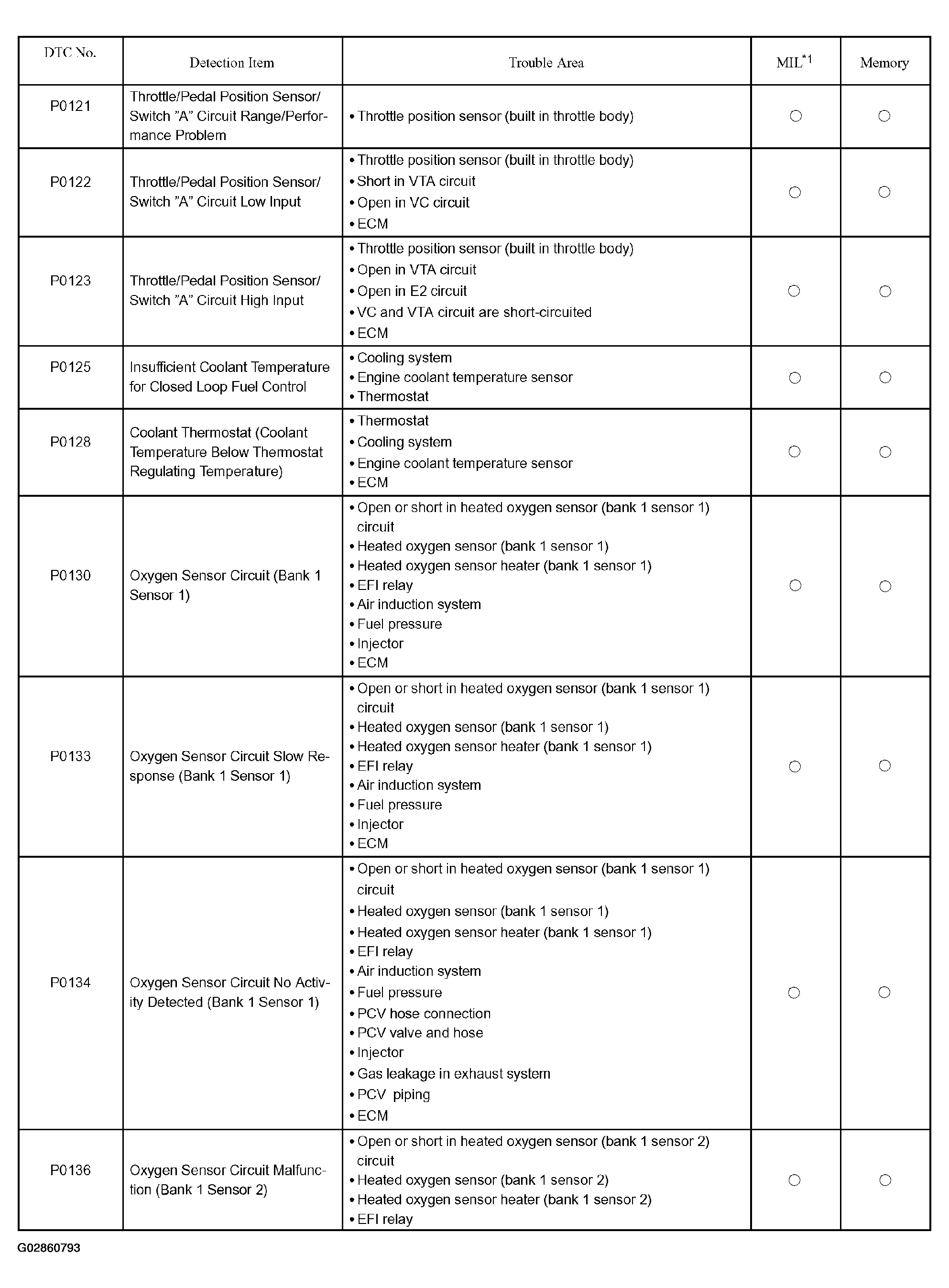

Fig 1: Diagnostic Trouble Code Chart (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

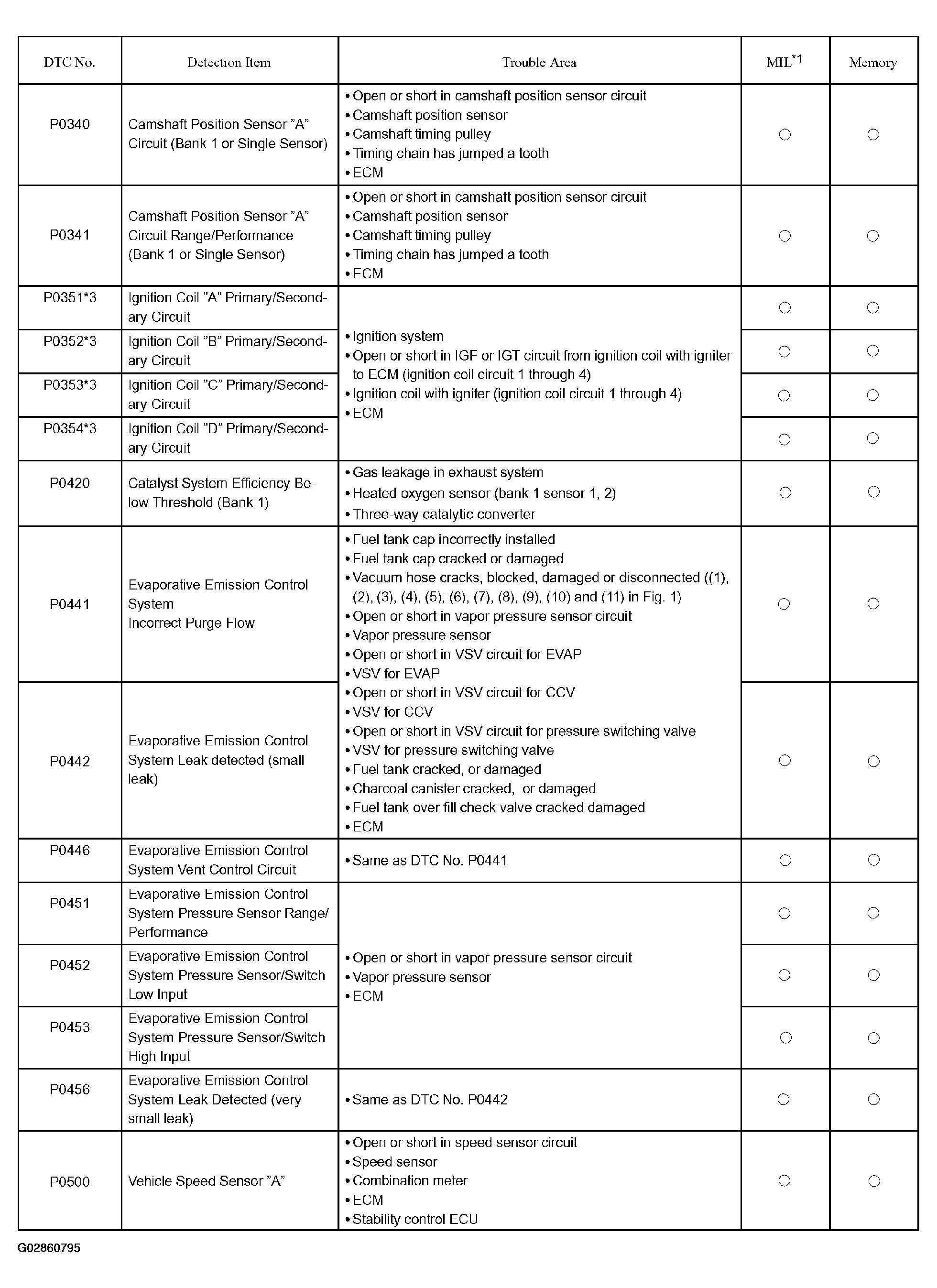

Fig 2: Diagnostic Trouble Code Chart (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

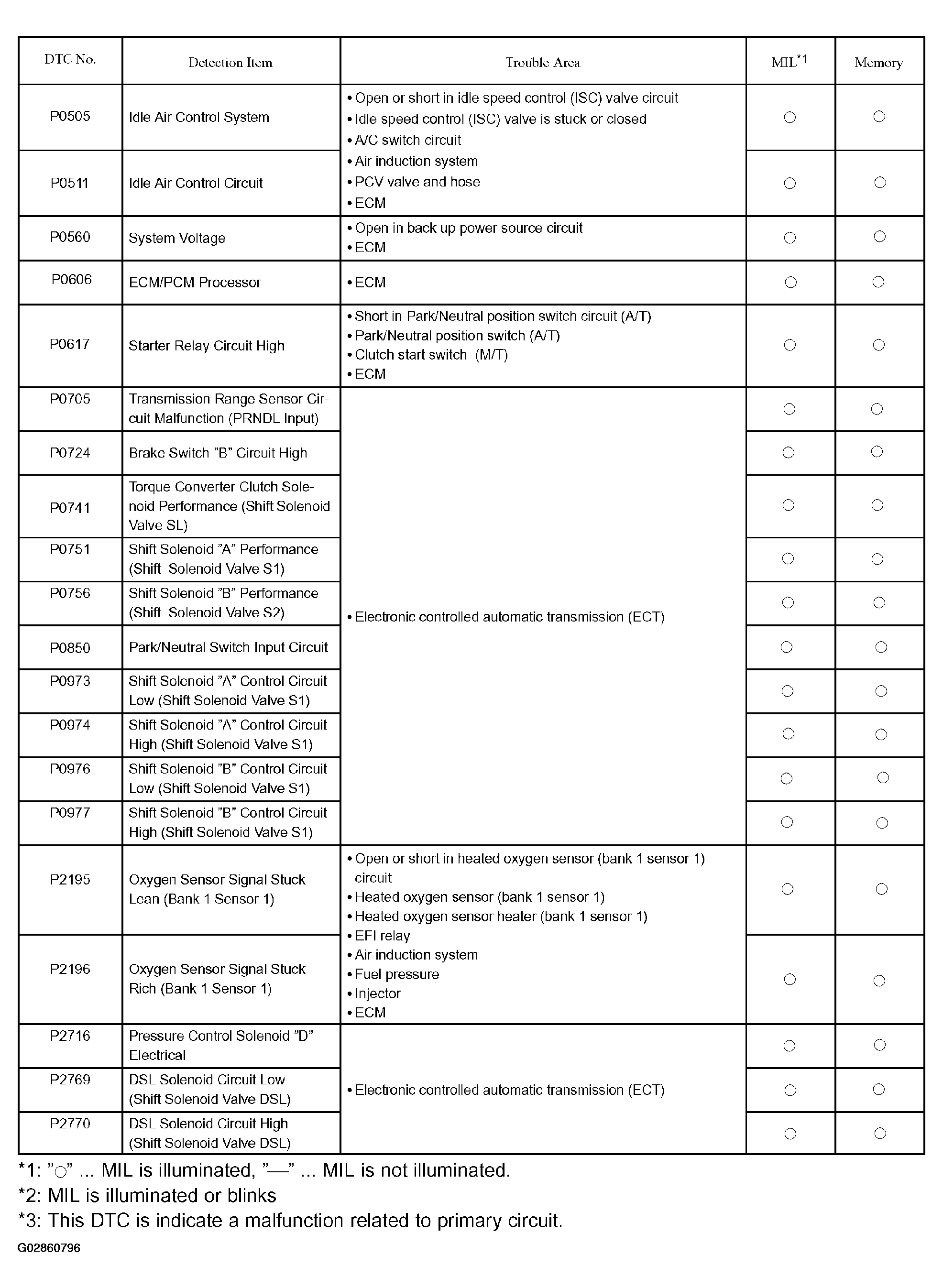

Fig 3: Diagnostic Trouble Code Chart (3 Of 5)

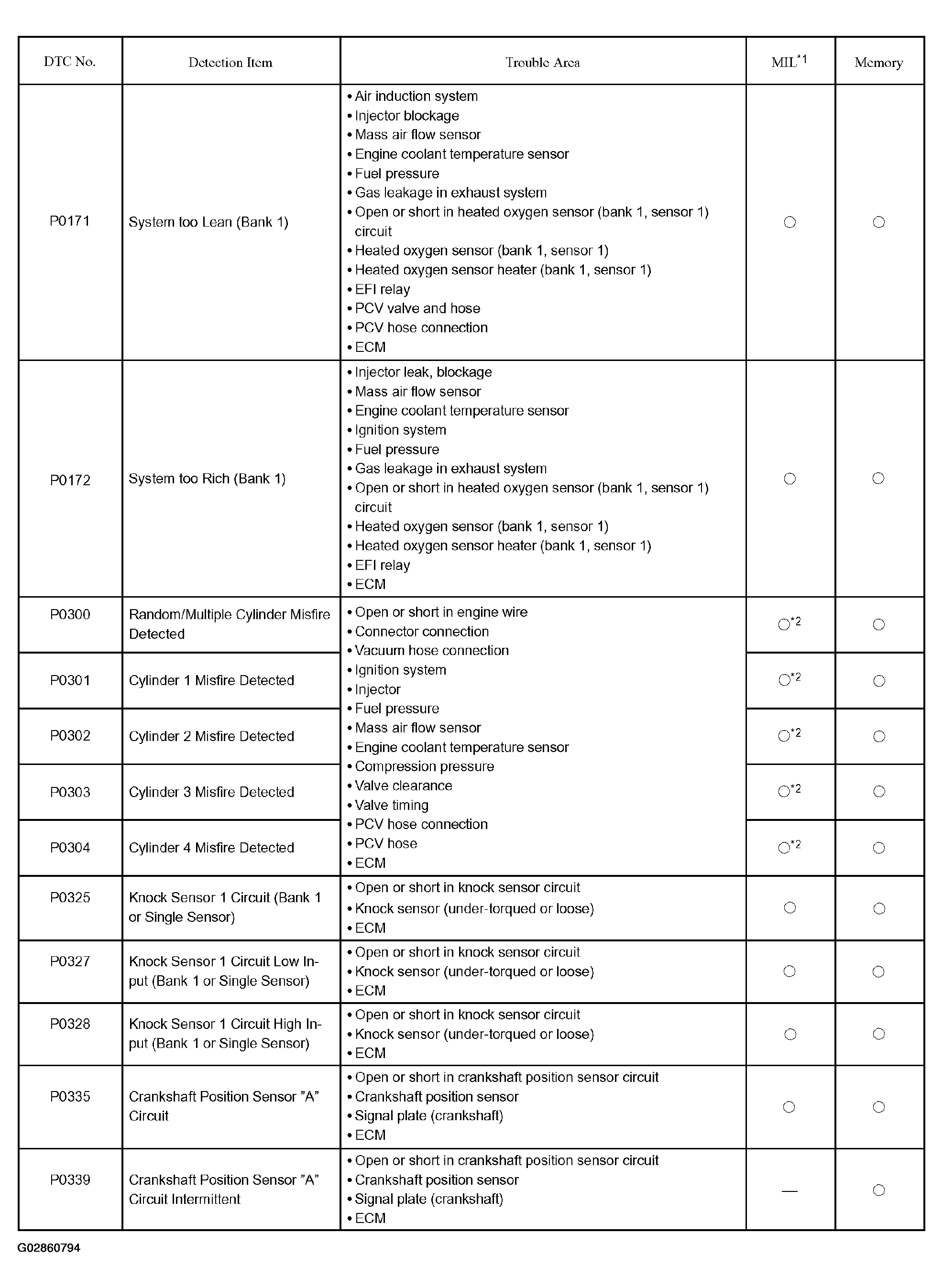

Fig 4: Diagnostic Trouble Code Chart (4 Of 5)

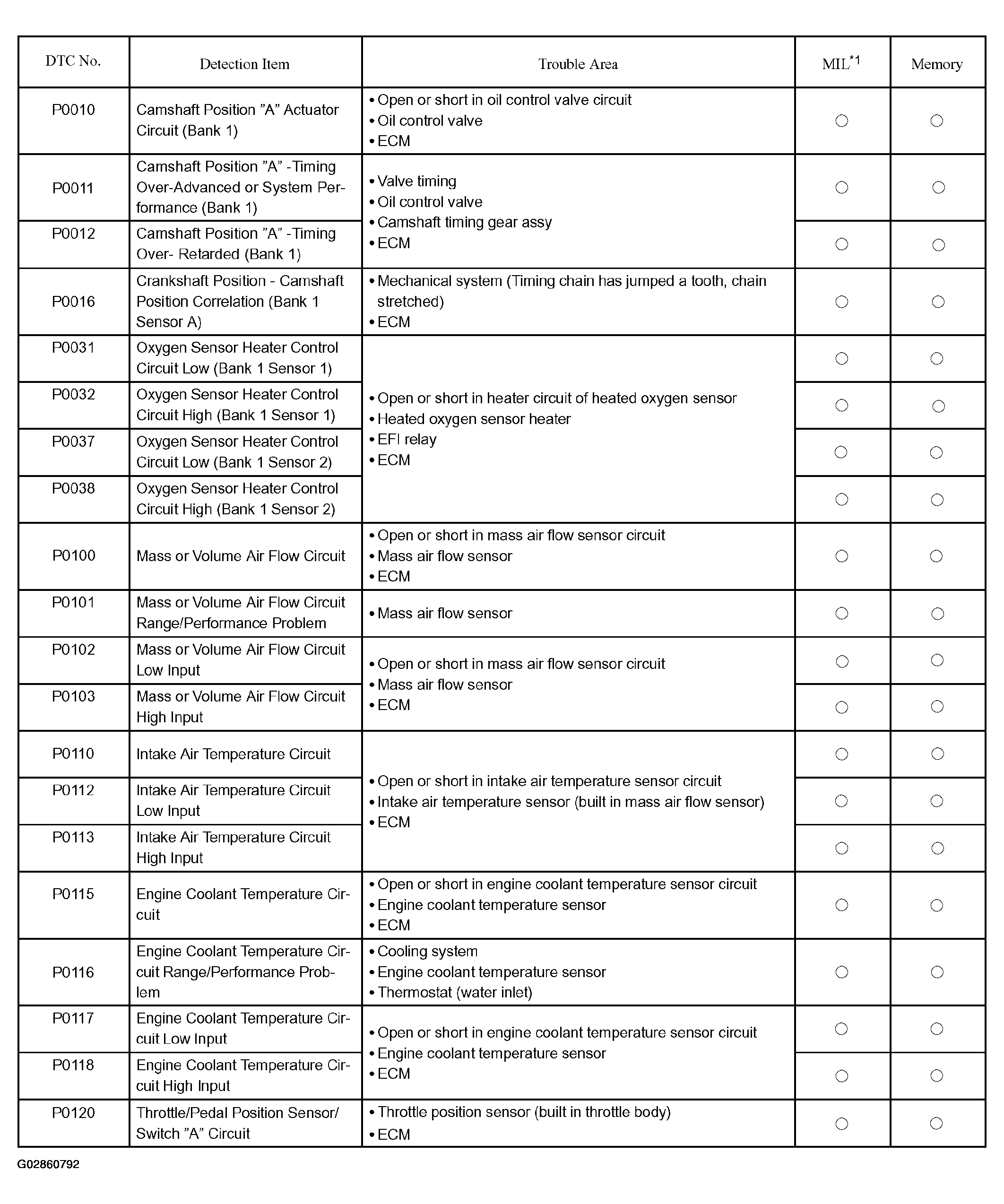

Fig 5: Diagnostic Trouble Code Chart (5 Of 5)
