DTC P0505: Idle Air Control System, DTC P0511 Idle Air Control Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

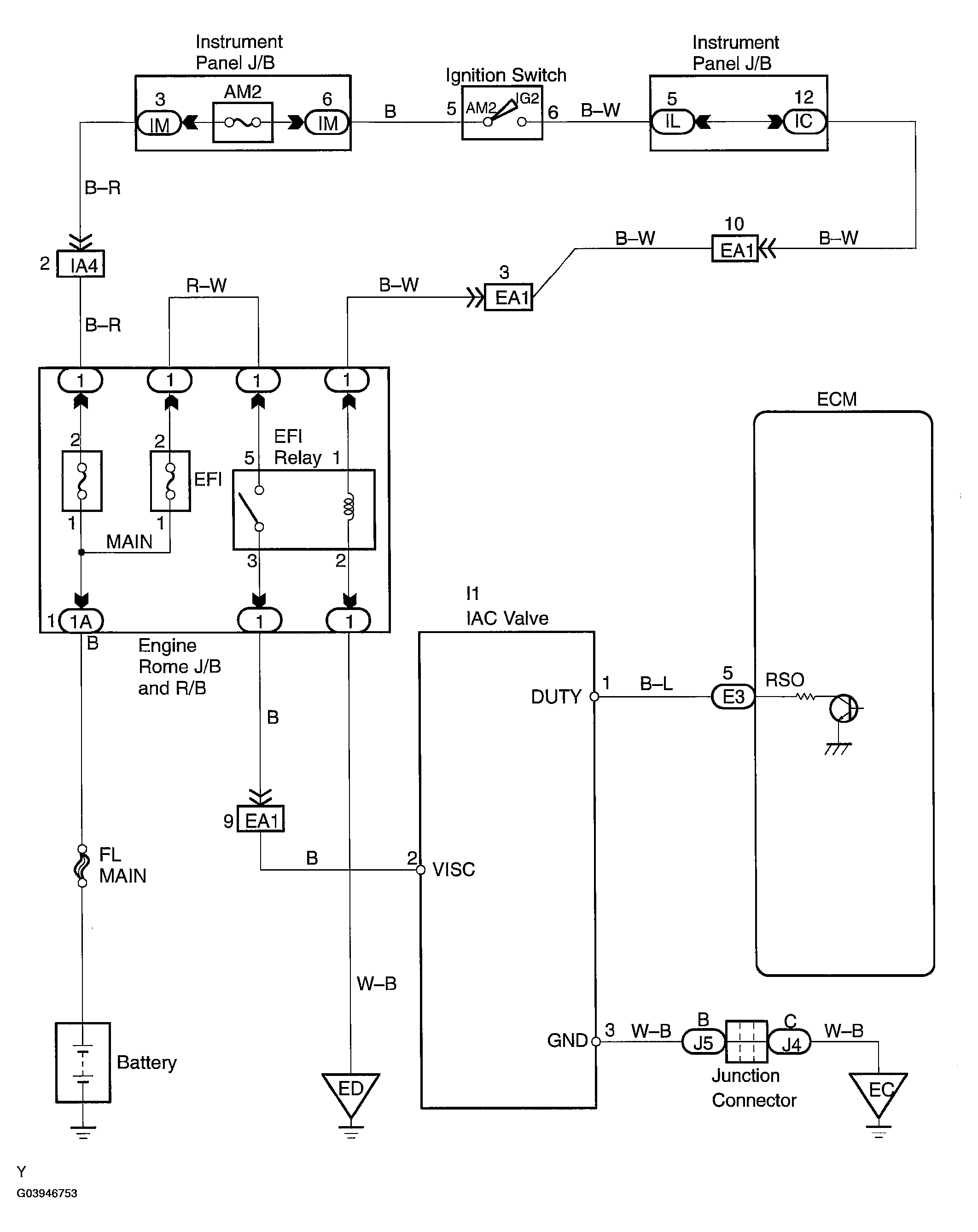

Fig 1: Idle Air Control System - Wiring Diagram
G03946753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
