Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Hand-held tester only:

Narrowing down the trouble area is possible by performing "A/F CONTROL" ACTIVE TEST (heated oxygen sensor or other trouble areas can be distinguished).

Perform ACTIVE TEST using hand-held tester (A/F CONTROL).

HINT:

"A/F CONTROL" is the ACTIVE TEST which changes the injection volume to -12.5 % or +25 %.

Connect the hand-held tester to the DLC3 on the vehicle.
Turn the ignition switch ON.
Warm up the engine by running the engine speed at 2,500 rpm for approximately 90 seconds.
Select the item "DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / A/F CONTROL".
Perform "A/F CONTROL" with the engine in an idle condition (press the right or left button).

Result:

Heated oxygen sensor reacts in accordance with increase and decrease of injection volume +25 % --> rich output: More than 0.5 V, -12.5 % --> lean output: Less than 0.4 V

NOTE: There is a delay of few seconds in the sensor 1 (front sensor) output, and there is about 20 seconds delay at maximum in the sensor 2 (rear sensor).

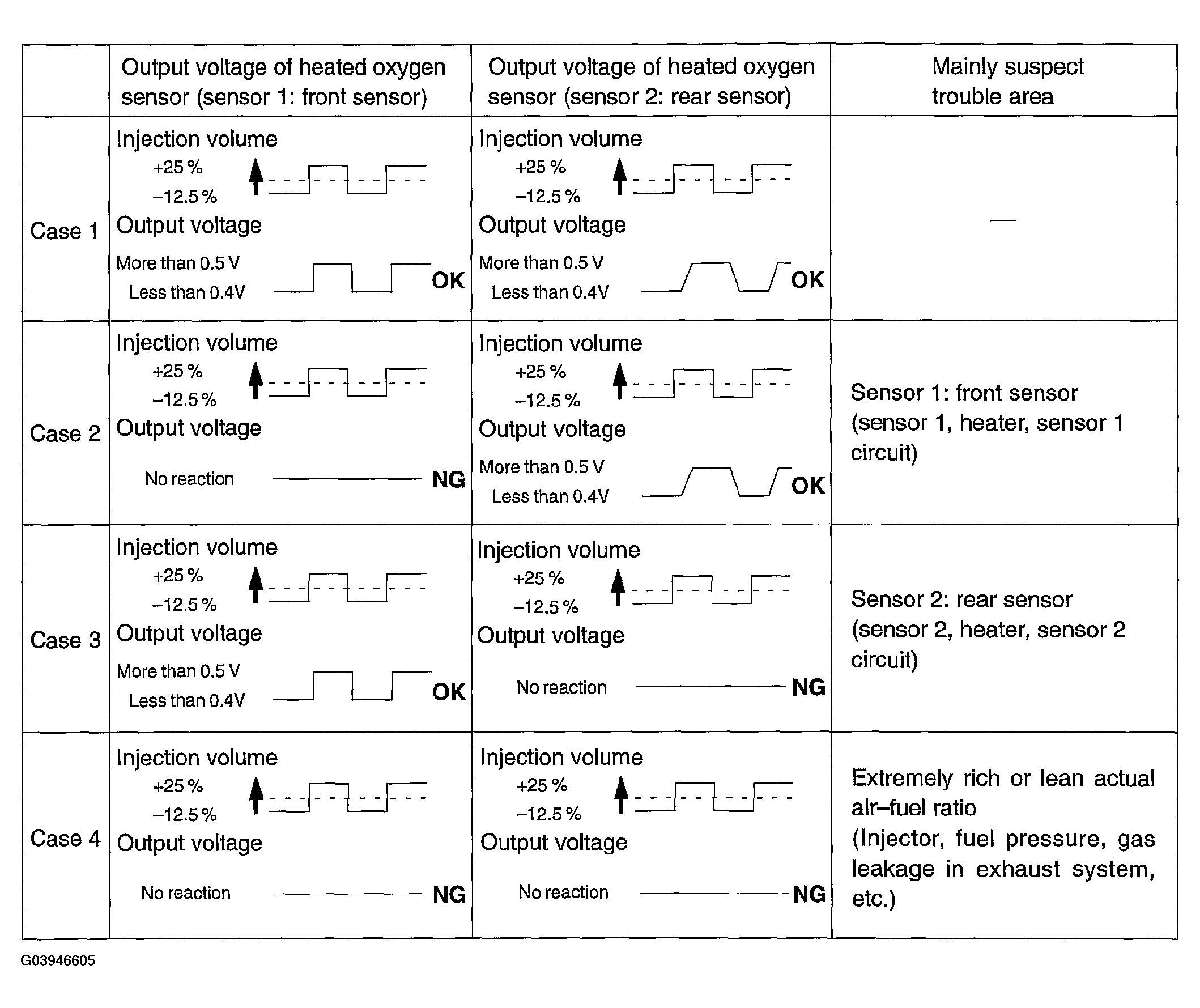

Fig 1: Heated Oxygen Sensor Injection Volume And Output Voltage Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The following of A/F CONTROL procedure enables the technician to check and graph the voltage outputs of both the heated oxygen sensors.

For displaying the graph indication, enter "ACTIVE TEST / A/F CONTROL / USER DATA", then select "O2S B1S1 and O2S B1S2" by pressing "YES" button and push "ENTER" button before pressing "F4" button.

HINT:

If different DTCs related to different systems that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may be open.
Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
A high heated oxygen sensor (sensor 1) voltage (0.5 V or more) could be caused by a rich air fuel mixture. Check for conditions that would cause the engine to run rich.
A low heated oxygen sensor (sensor 1) voltage (0.4 V or less) could be caused by a lean air fuel mixture. Check for conditions that would cause the engine to run lean.

CHECK AIR INDUCTION SYSTEM
1. Check the air induction system for vacuum leaks.
- NG : REPAIR OR REPLACE AIR INDUCTION SYSTEM
- OK : Go to next step
CHECK CONNECTION OF PCV HOSE
- NG : REPAIR OR REPLACE PCV HOSE
- OK : Go to next step
INSPECT FUEL INJECTOR ASSY (INJECTION AND VOLUME) (See ON-VEHICLE INSPECTION )
- NG : REPLACE FUEL INJECTOR ASSY (See REPLACEMENT )
- OK : Go to next step

INSPECT MASS AIR FLOW SENSOR

Remove the mass air flow sensor.
Inspect output voltage.
1. Apply battery voltage across terminals +B and E2G.
2. Connect the positive (+) tester prove to terminal VG, and negative (-) tester prove to terminal E2G.
3. Blow air into the mass air flow sensor, and check that the voltage fluctuates.

Resistance inspection.

Measure the resistance between the terminals of the intake air temperature sensor.

Standard:

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Temperature	Specified Condition
THA (M1-4)-E2 (M1-5)	-20°C (-4°F)	13.6 to 18.4 kΩ
	20°C (68°F)	2.21 to 2.69 kΩ
	60°C (140°F)	0.49 to 0.67 kΩ

Reinstall the mass air flow sensor.

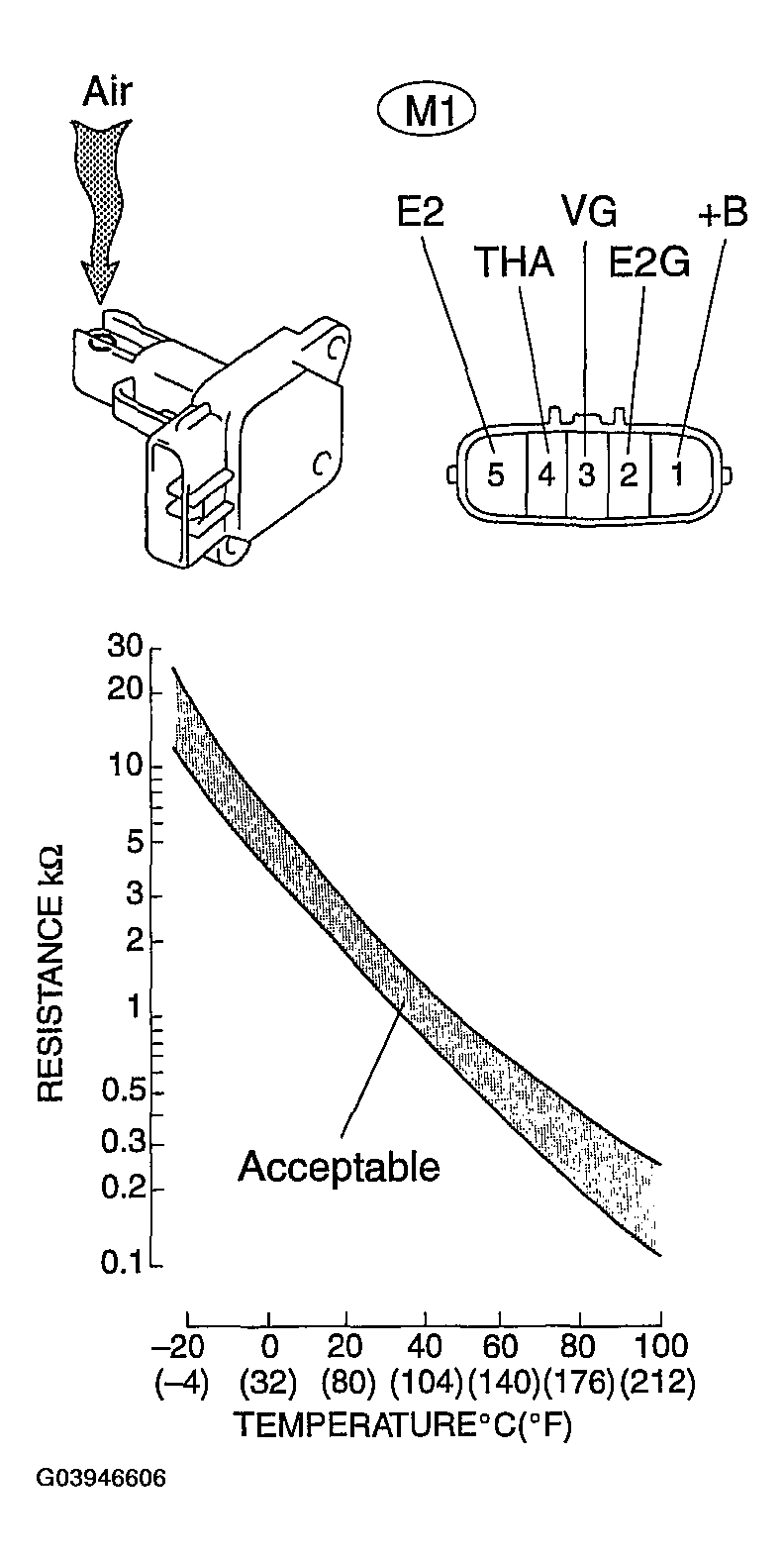

Fig 2: Identifying Mass Air Flow Sensor Connector Terminals And Temperature Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE MASS AIR FLOW SENSOR
OK : Go to next step

INSPECT ENGINE COOLANT TEMPERATURE SENSOR (RESISTANCE)

Remove the engine coolant temperature sensor.

Measure the resistance between the terminals of the engine coolant temperature sensor.

Standard:

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Temperature	Specified Condition
1-2	20°C (68°F)	2.32 to 2.59 kΩ
1-2	80°C (176°F)	0.310 to 0.326 kΩ

NOTE: If you checking the engine coolant temperature sensor in water, be careful not to allow water to go into the terminals. After checking, dry the sensor.

HINT:

Alternate procedure: Connect an ohmmeter to the installed engine coolant temperature sensor and read the resistance. Use an infrared thermometer to measure the engine temperature in the immediate vicinity of the sensor. Compare these values to the resistance/temperature graph. Change the engine temperature (warm up or allow to cool down) and repeat the test.

Reinstall the engine coolant temperature sensor.

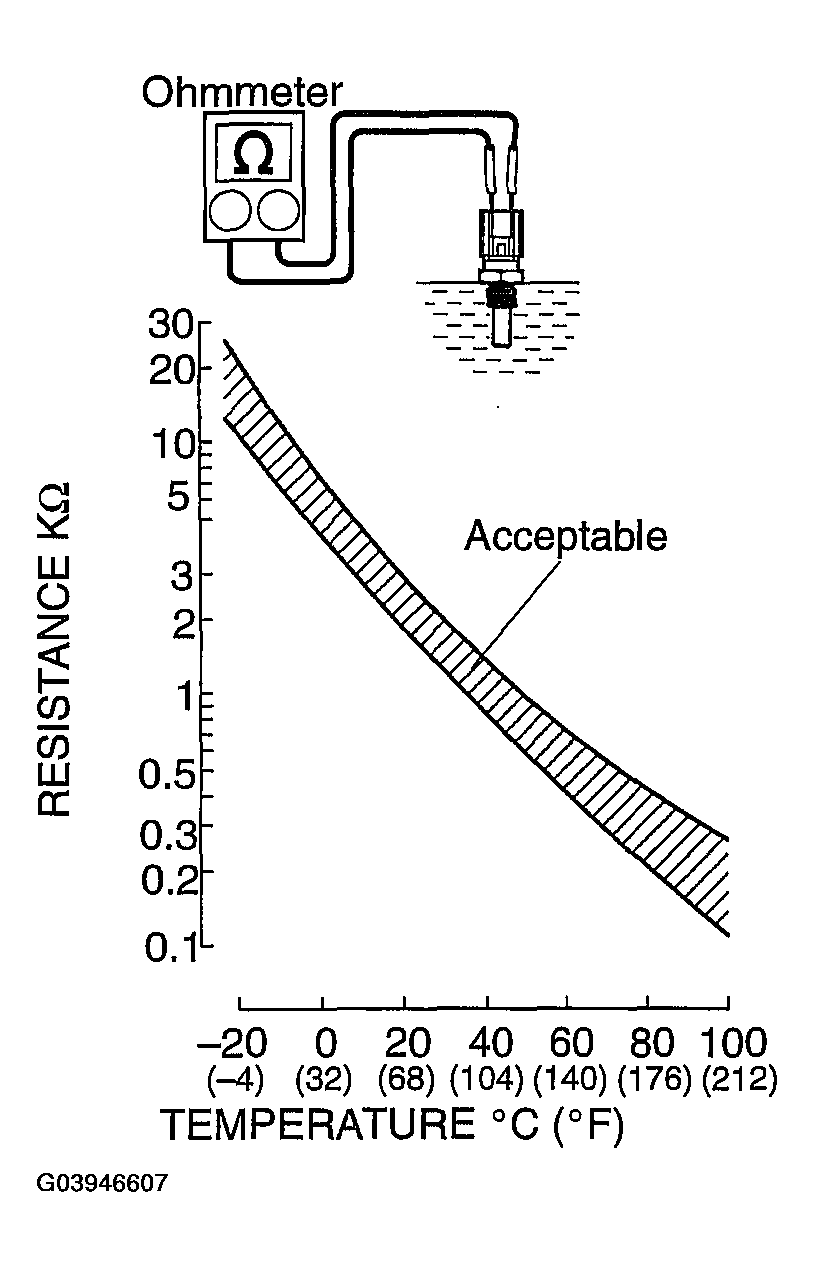

Fig 3: Inspecting Engine Coolant Temperature And Temperature Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE ENGINE COOLANT TEMPERATURE SENSOR
OK : Go to next step

CHECK FOR SPARK AND IGNITION (See IGNITION SYSTEM )
- NG : REPAIR OR REPLACE
- OK : Go to next step
CHECK FUEL PRESSURE (See ON-VEHICLE INSPECTION )
1. Check the fuel pressure (high or low pressure).
- NG : CHECK AND REPLACE FUEL SYSTEM
- OK : Go to next step
CHECK FOR EXHAUST GAS LEAKAGE
- NG : REPAIR OR REPLACE EXHAUST GAS LEAKAGE POINT (See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
- OK : Go to next step
READ VALUE OF HAND-HELD TESTER OR OBD II SCAN TOOL (OUTPUT VOLTAGE OF HEATED OXYGEN SENSOR (BANK 1 SENSOR 1))
1. Connect the hand-held tester or the OBD II scan tool to the DLC3.
2. Start the engine and push the hand-held tester or the OBD II scan tool main switch ON.
3. Select the item "DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / O2S B1S1".
4. Warm up the heated oxygen sensor with the engine speed at 2,500 rpm for approximately 90 seconds.
5. Read the output voltage of the heated oxygen sensor during idling.
  Heated oxygen sensor output voltage:

  Alternates repeatedly between less than 0.4 V and more than 0.5 V (See the following table).

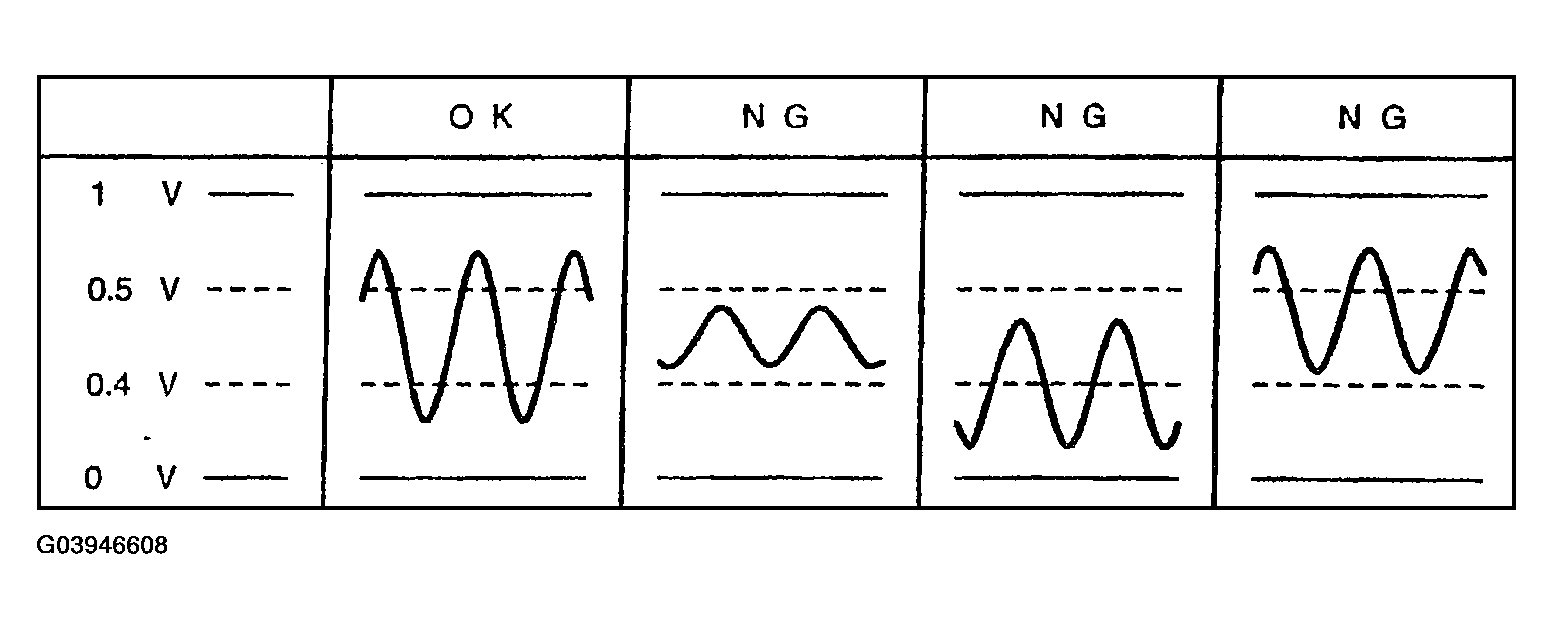

  Fig 4: Heated Oxygen Sensor Output Voltage Graph
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- OK : Go to step 17
- NG: Go to next step

INSPECT HEATED OXYGEN SENSOR (HEATER RESISTANCE)

Disconnect the H5 heated oxygen sensor connector.

Measure the resistance between the terminals of the heated oxygen sensor connector.

Standard:

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Specified Condition
HT (H5-1) -+B (H5-2)	5 to 10 Ω at 20°C (68 °F)
HT (H5-1)-E1 (H5-4)	10 kΩ or higher

Reconnect the heated oxygen sensor connector.

Fig 5: Identifying Heated Oxygen Sensor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE HEATED OXYGEN SENSOR
OK : Go to next step

INSPECT EFI RELAY

Remove the EFI relay from the engine room R/B.

Check for continuity in the EFI relay.

Standard:

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Specified Condition
1-2	Continuity
3-5	No continuity
3-5	Continuity (Apply battery voltage to terminals 1 and 2)

Reinstall the EFI relay.

Fig 6: Inspecting EFI Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE EFI RELAY
OK : Go to next step

CHECK HARNESS AND CONNECTOR (HEATED OXYGEN SENSOR - ECM)

Disconnect the H5 heated oxygen sensor connector.
Disconnect the E4 ECM connector.

Check the resistance between the wire harness side connectors.

Standard (Check for open):

Fig 7: Identifying H5 Heated Oxygen Sensor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Specified Condition
HT(H5-1)-HT1A (E4-4)	Below 1 Ω
OX (H5-3)-OX1A (E4-23)	Below 1 Ω

Standard (Check for short):

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Specified Condition
HT (H5-1) or HT1A (E4-4) - Body ground	10 kΩ or higher
OX (H5-3) or OX1A (E4-23) - Body ground	10 kΩ or higher

Reconnect the ECM connector.
Reconnect the heated oxygen sensor connector.

Fig 8: Identifying E4 ECM Connector Terminals

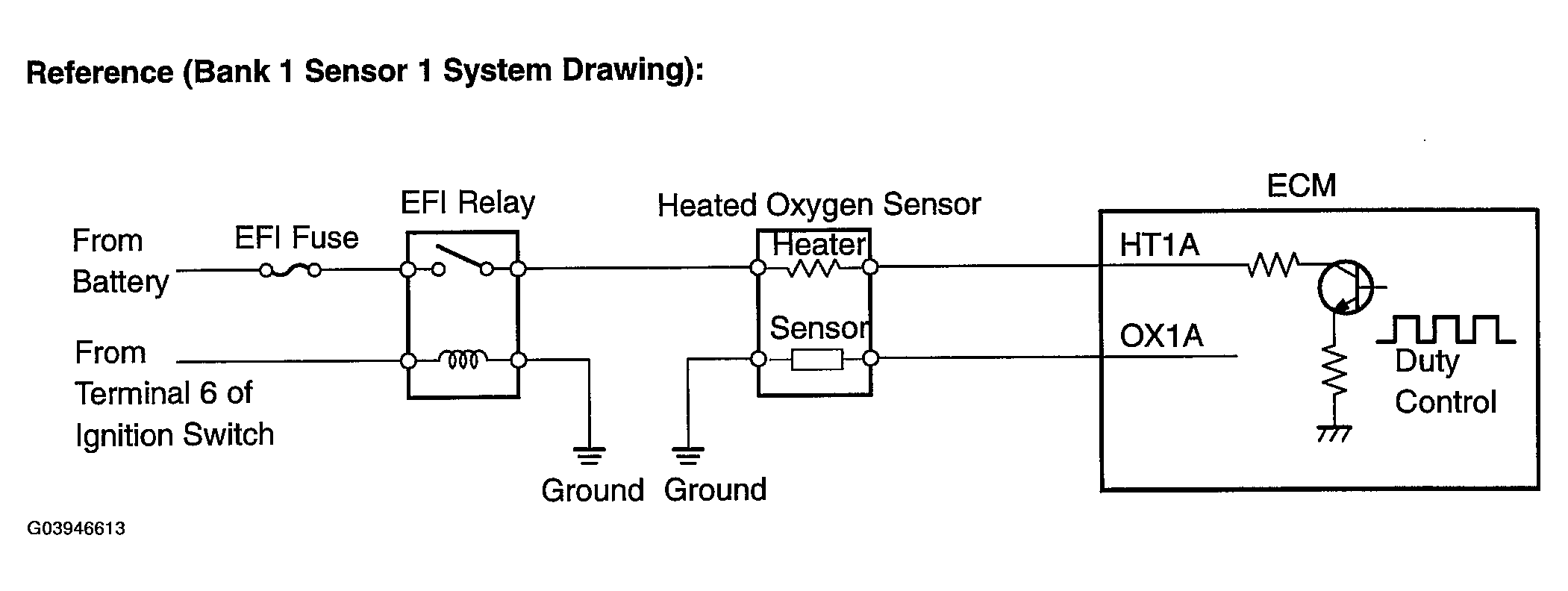

Fig 9: Bank 1 Sensor 1 System Diagram

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
OK : Go to next step.

REPLACE HEATED OXYGEN SENSOR
HINT:

Check the air induction system for vacuum leaks.
- Go to next step
PERFORM CONFIRMATION DRIVING PATTERN

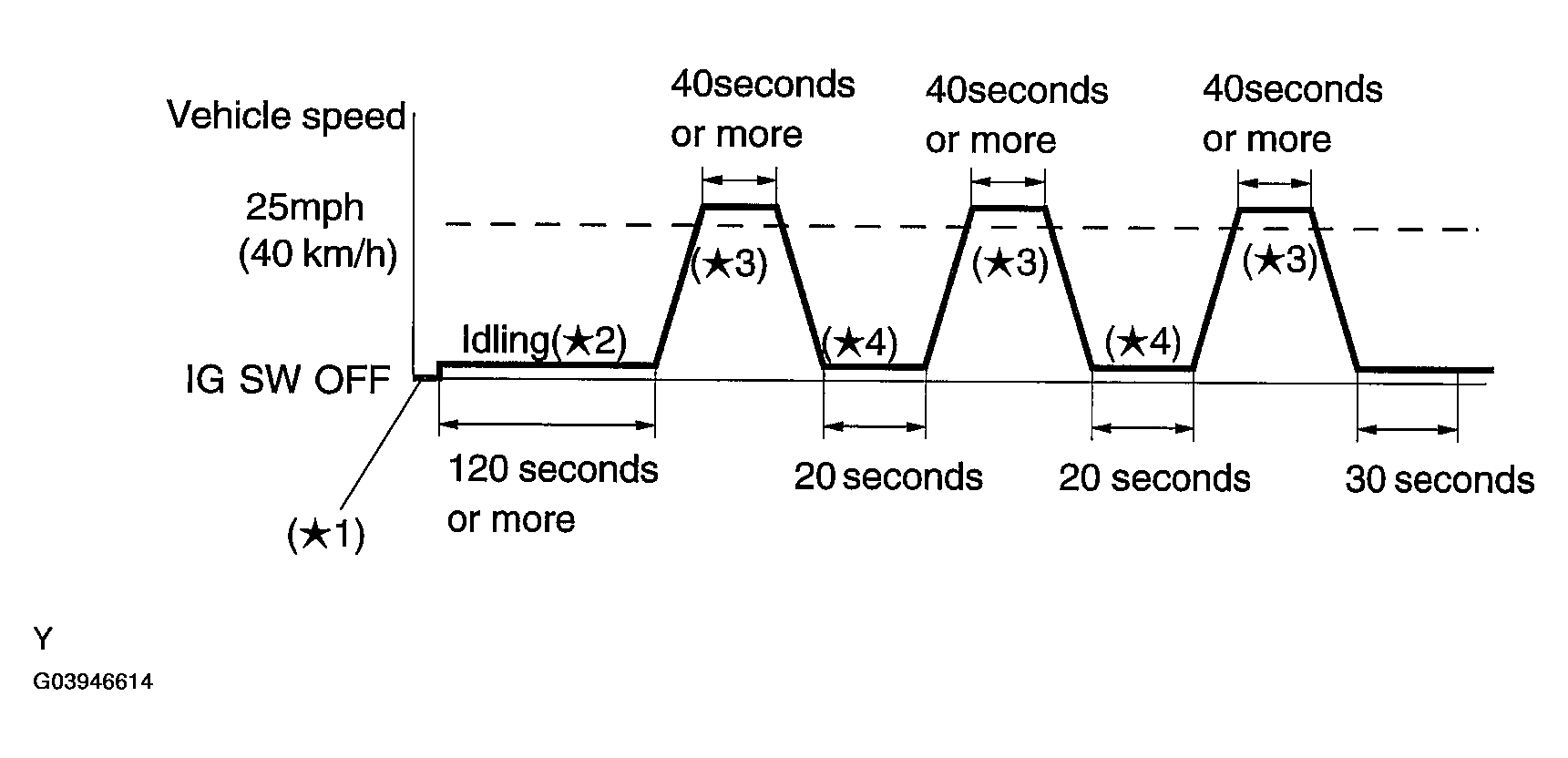

Fig 10: Confirmation Driving Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the hand-held tester to the DLC3. (*1)
2. Switch the hand-held tester from the normal mode to the check mode (See CHECK MODE PROCEDURE ). (*1)
3. Start the engine and let it idle for 120 seconds or more. (*2)
4. Drive the vehicle at 25 mph (40 km/h) or more for 40 seconds or more. (*3)
5. Let the engine idle for 20 seconds or more. (*4)
6. Perform steps (d) and (e) at least 3 times.
HINT:

If a malfunction exists, the MIL will be illuminated on the multi-information display during step (f).

NOTE: If the conditions in this test are not strictly followed, detection of a malfunction will not occur. If you do not have the hand-held tester, turn the ignition switch OFF after performing steps from (c) to (f), then perform steps from (c) to (f) again.
- Go to next step

READ OUTPUT DTC (DTC P0171 AND/OR P0172 ARE OUTPUT AGAIN)

Connect the hand-held tester or the OBD II scan tool to the DLC3.
Turn the ignition switch ON and push the hand-held tester or the OBD II scan tool main switch ON.
Select the item "DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES".

Read the DTCs.

Result:

RESULT REFERENCE

Display (DTC output)	Proceed to
"P0171 and/or P0172" are not output	A
"P0171 and/or P0172"	B

B : REPLACE ECM (See REPLACEMENT ) AND PERFORM CONFIRMATION DRIVING PATTERN (Refer to step 14 )
A : go to next step

CONFIRM IF VEHICLE HAS RUN OUT OF FUEL IN PAST
- NO CHECK FOR INTERMITTENT PROBLEMS (See CHECK FOR INTERMITTENT PROBLEMS )
- YES : DTC IS CAUSED BY RUNNING OUT OF FUEL (DTCS P0171 AND/OR P0172)
PERFORM CONFIRMATION DRIVING PATTERN
HINT:

Clear all DTCs prior to performing the confirmation driving pattern. (Refer to step 14)
- Go to next step

READ OUTPUT DTC (DTC P0171 AND/OR P0172 ARE OUTPUT AGAIN)

Connect the hand-held tester or the OBD II scan tool to the DLC3.
Turn the ignition switch ON and push the hand-held tester or the OBD II scan tool main switch ON.
Select the item "DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES".

Read the DTCs.

Result:

RESULT REFERENCE

Display (DTC output)	Proceed to
"P0171 and/or P0172"	A
"P0171 and/or P0172" are not output	B

B : Go to step 22
A: Go to Next Step

REPLACE HEATED OXYGEN SENSOR
- Go to next step
PERFORM CONFIRMATION DRIVING PATTERN (See READINESS MONITOR DRIVE PATTERN )
HINT:

Clear all DTCs prior to performing the confirmation driving pattern. (Refer to step 14)
- Go to next step

READ OUTPUT DTC (DTC P0171 AND/OR P0172 ARE OUTPUT AGAIN)

Connect the hand-held tester or the OBD II scan tool to the DLC3.
Turn the ignition switch ON and push the hand-held tester or the OBD II scan tool main switch ON.
Select the item "DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES".

Read the DTCs.

Result:

RESULT REFERENCE

Display (DTC output)	Proceed to
"P0171 and/or P0172" are not output	A
"P0171 and/or P0172"	B

B : REPLACE ECM (See REPLACEMENT ) AND PERFORM CONFIRMATION DRIVING PATTERN (Refer to step 14 )
A : Go to next step

CONFIRM IF VEHICLE HAS RUN OUT OF FUEL IN PAST
- NO : CHECK FOR INTERMITTENT PROBLEMS (See CHECK FOR INTERMITTENT PROBLEMS )
- YES : DTC IS CAUSED BY RUNNING OUT OF FUEL
