Side Air Bag Module: Installation

WARNING: This page is about a different car, the 2004 Toyota Matrix and 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See ACTIVATING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM.

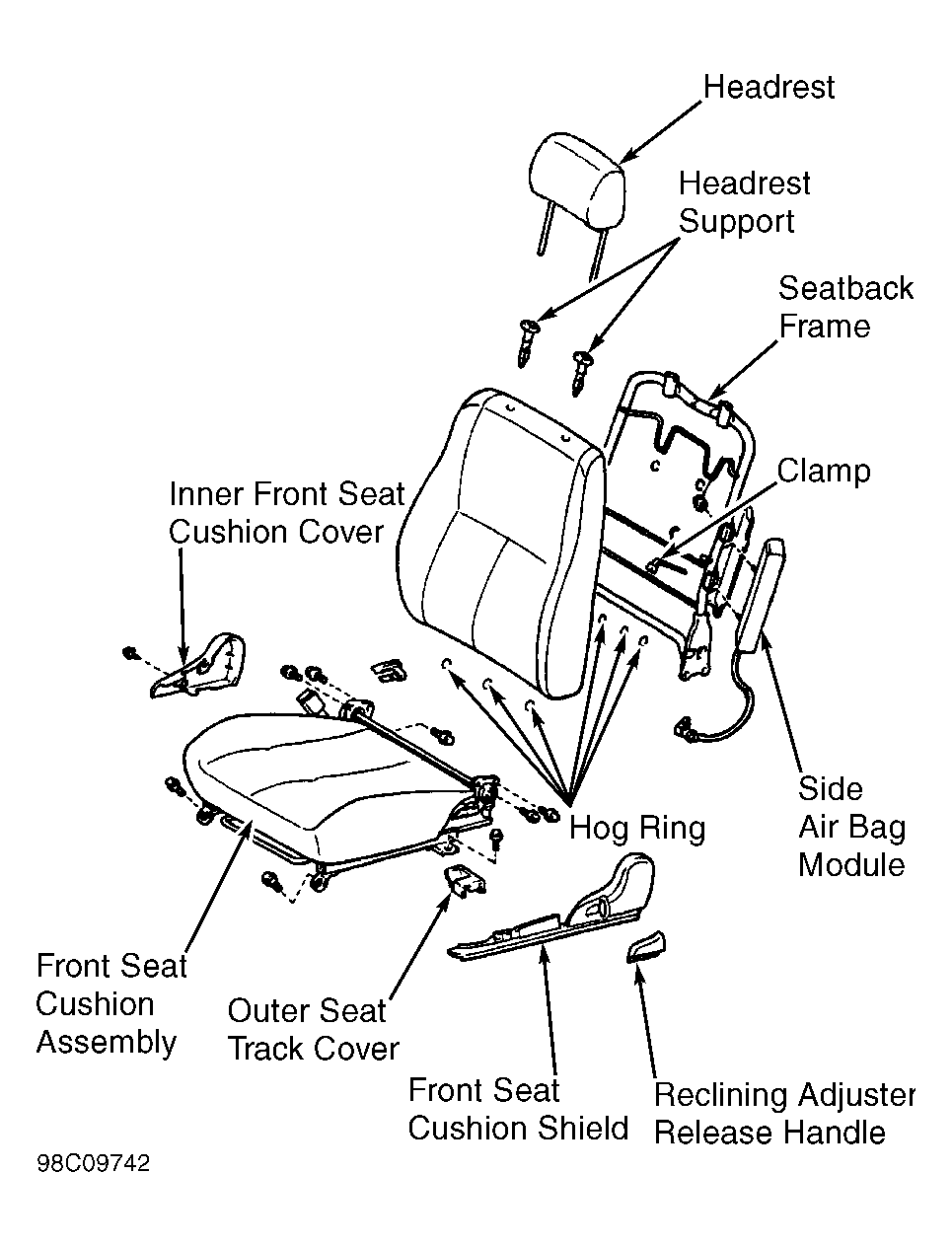

Fig 1: Identifying Side Air Bag Module (Left Seat Shown; Right Seat Is Similar)
G98C09742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
