Removal & Installation
WARNING: This page is about a different car, the 2004 Toyota Matrix and 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM.

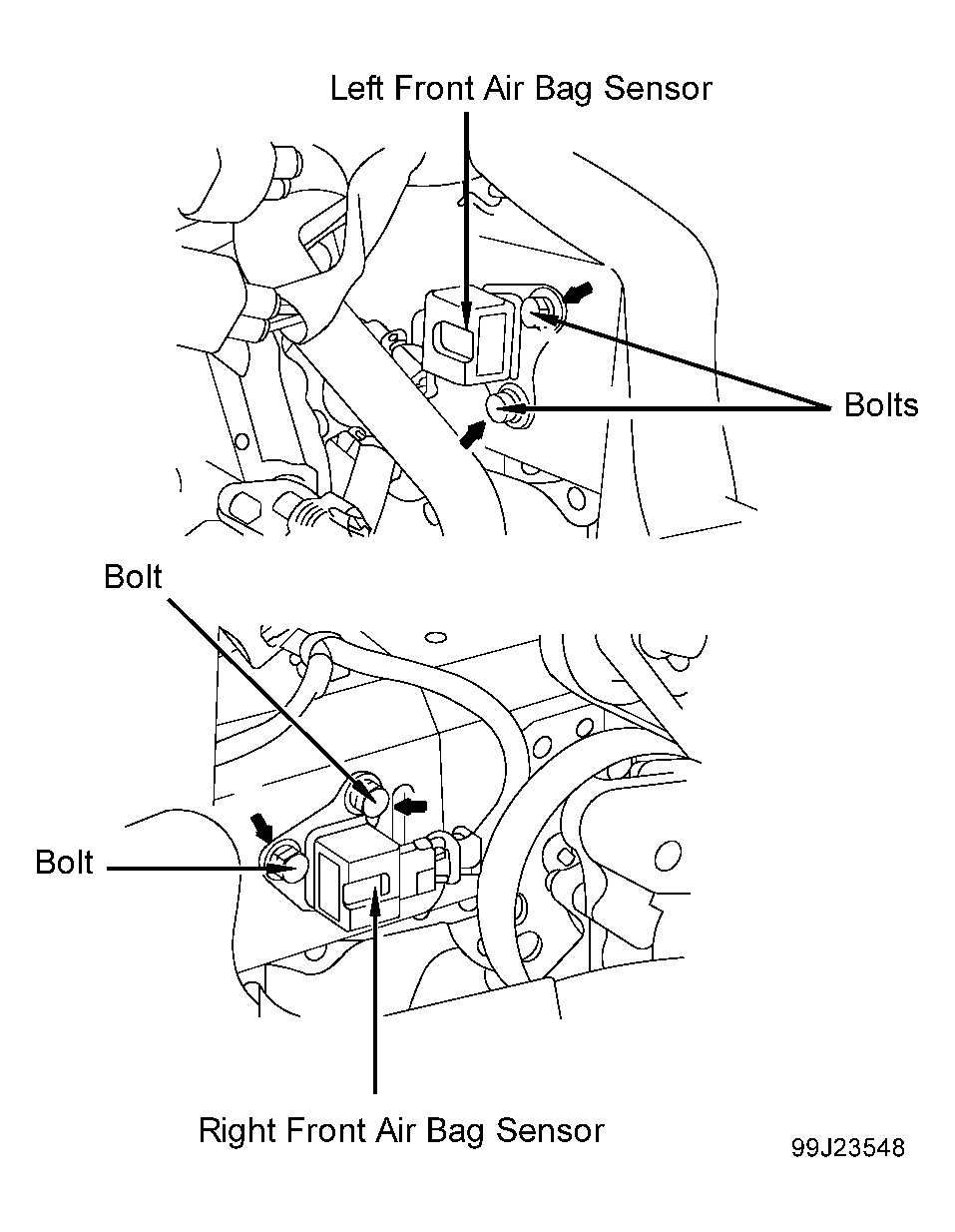

- Disconnect appropriate front air bag sensor connector. See Fig 1. Remove 2 front air bag sensor mounting bolts and sensor. To install, reverse removal procedure. Tighten front air bag sensor bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM.
