Partial Engine Assembly (3MZ-FE): Components

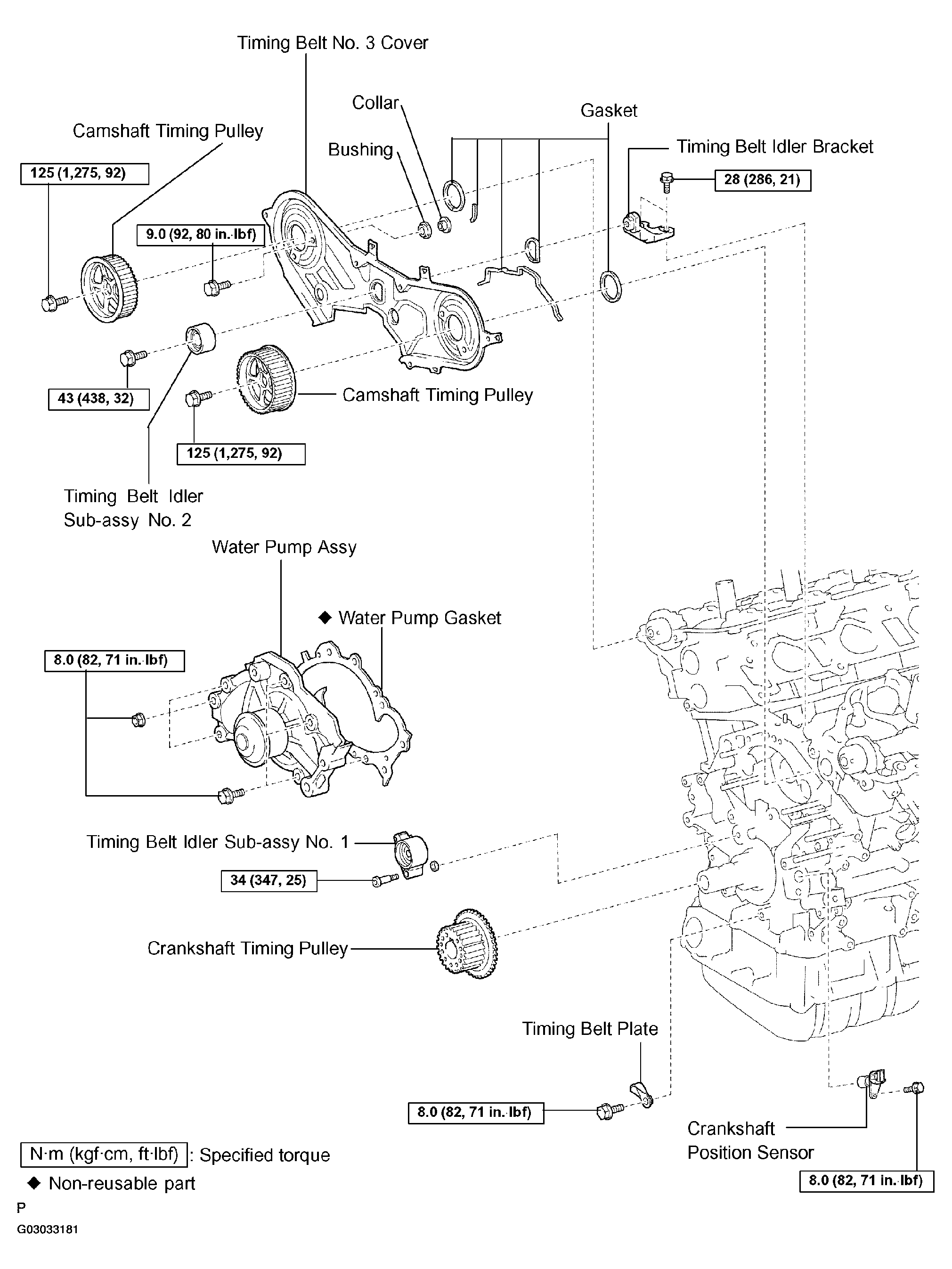

Fig 1: Identifying Partial Engine Assy (3MZ-FE) Components (1 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

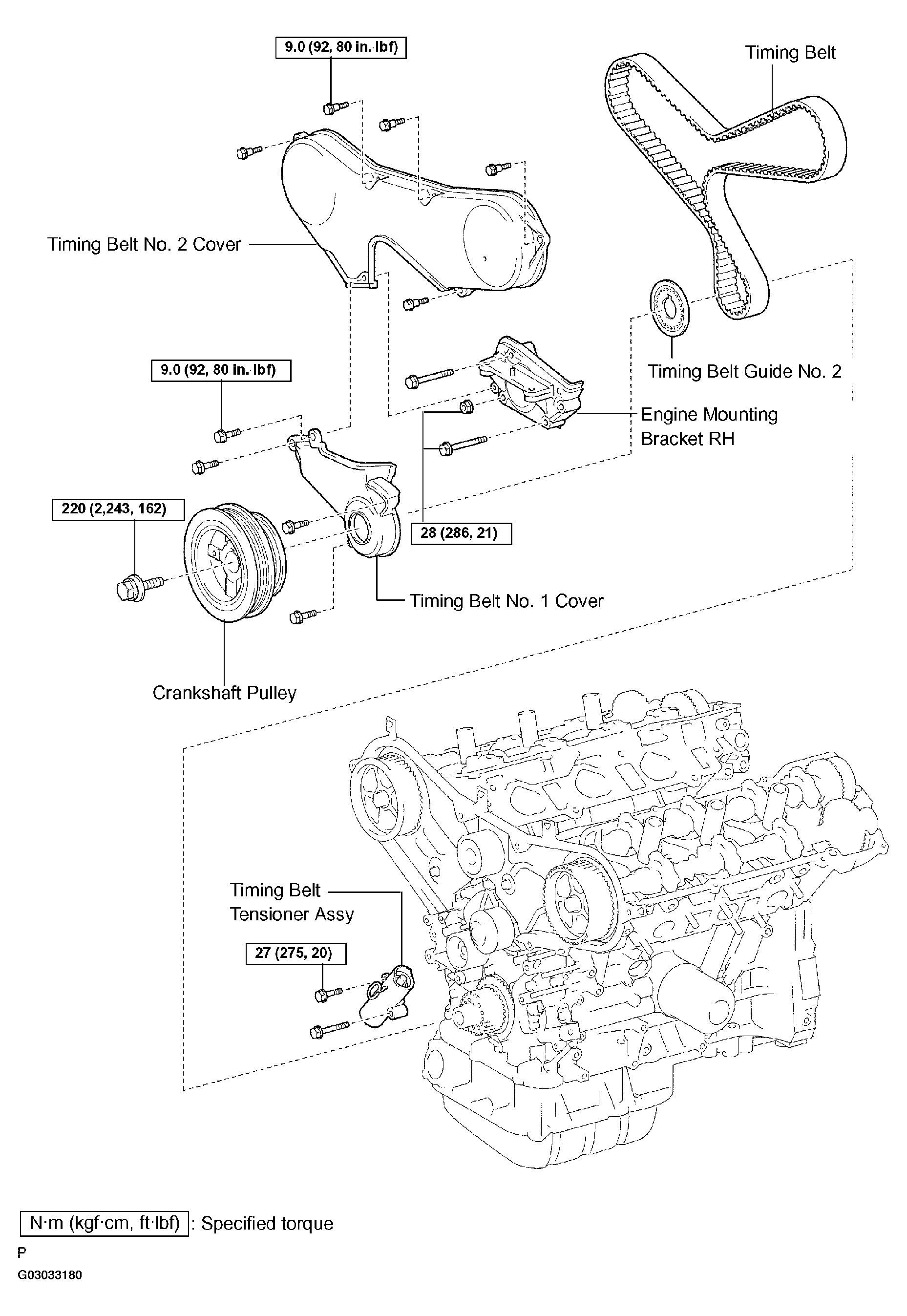

Fig 2: Identifying Partial Engine Assy (3MZ-FE) Components (2 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

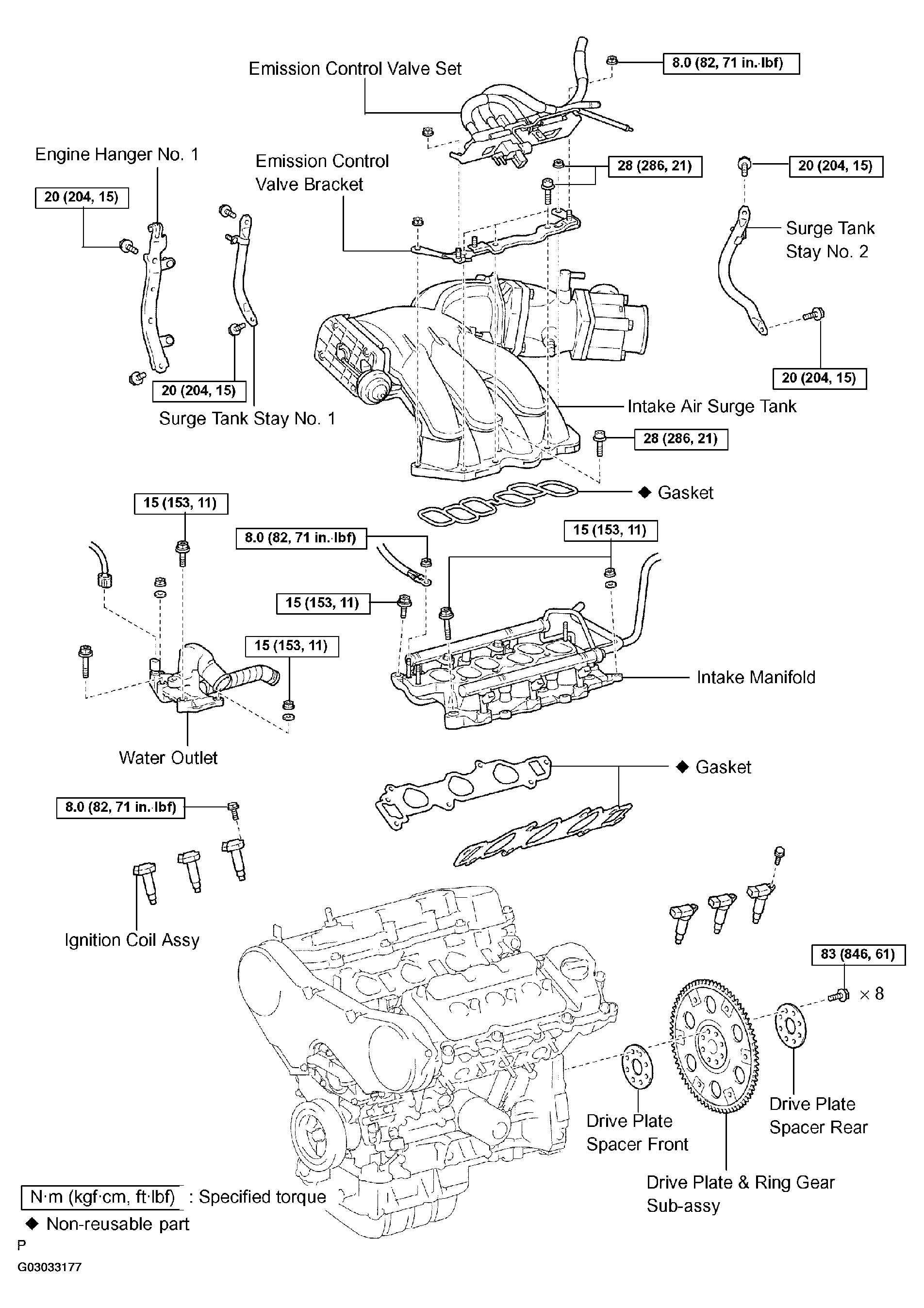

Fig 3: Identifying Partial Engine Assy (3MZ-FE) Components (3 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

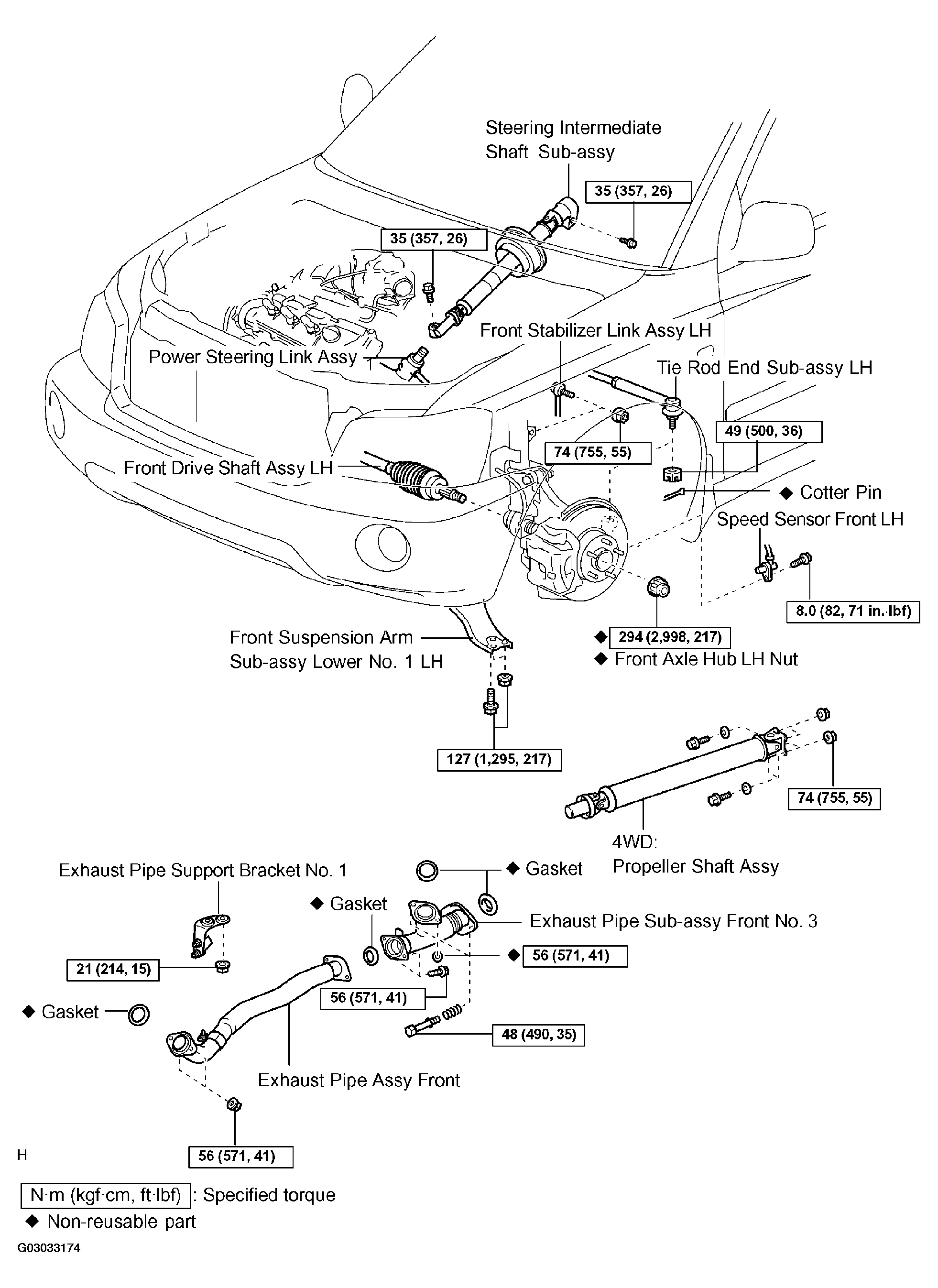

Fig 4: Identifying Partial Engine Assy (3MZ-FE) Components (4 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

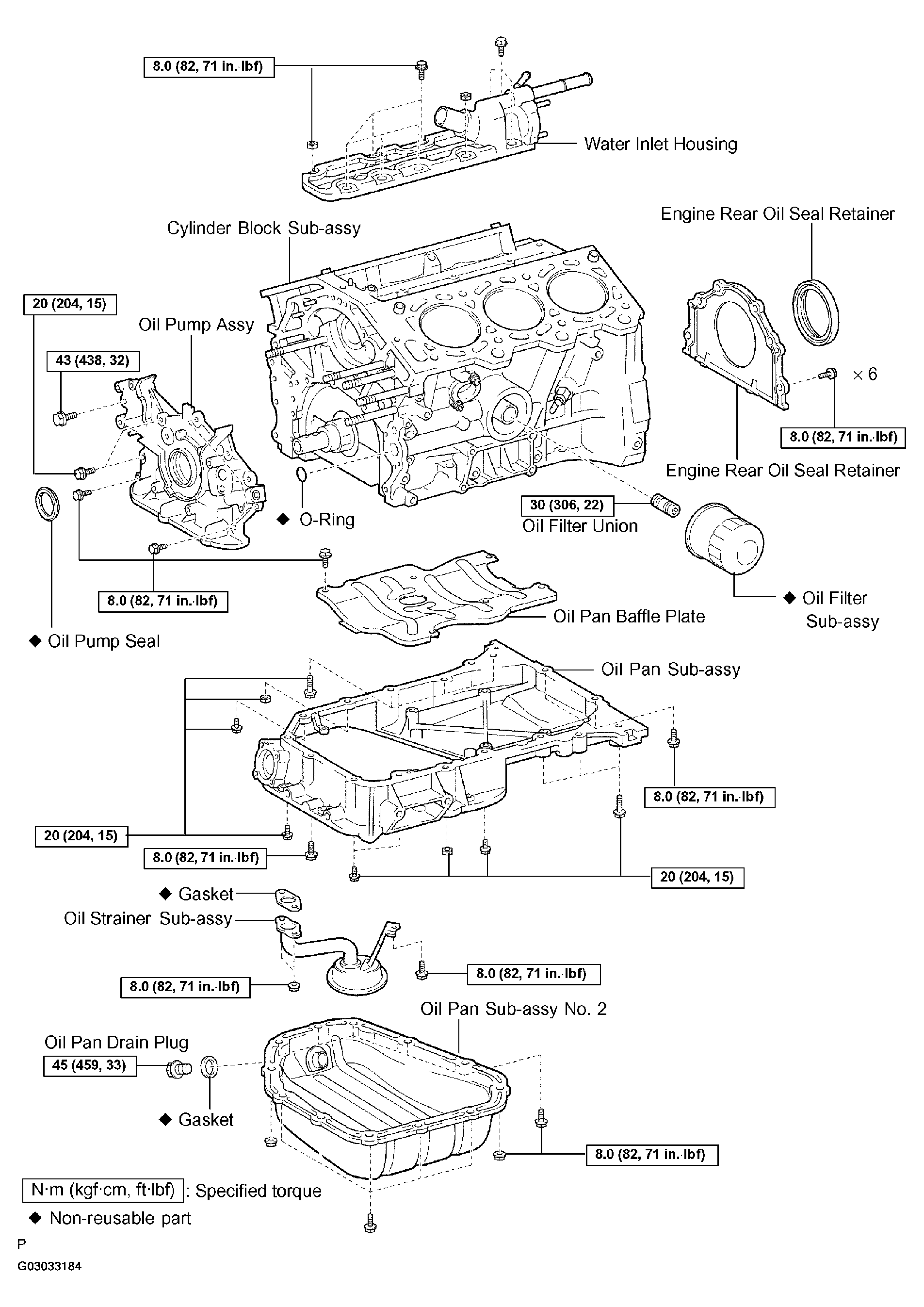

Fig 5: Identifying Partial Engine Assy (3MZ-FE) Components (5 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

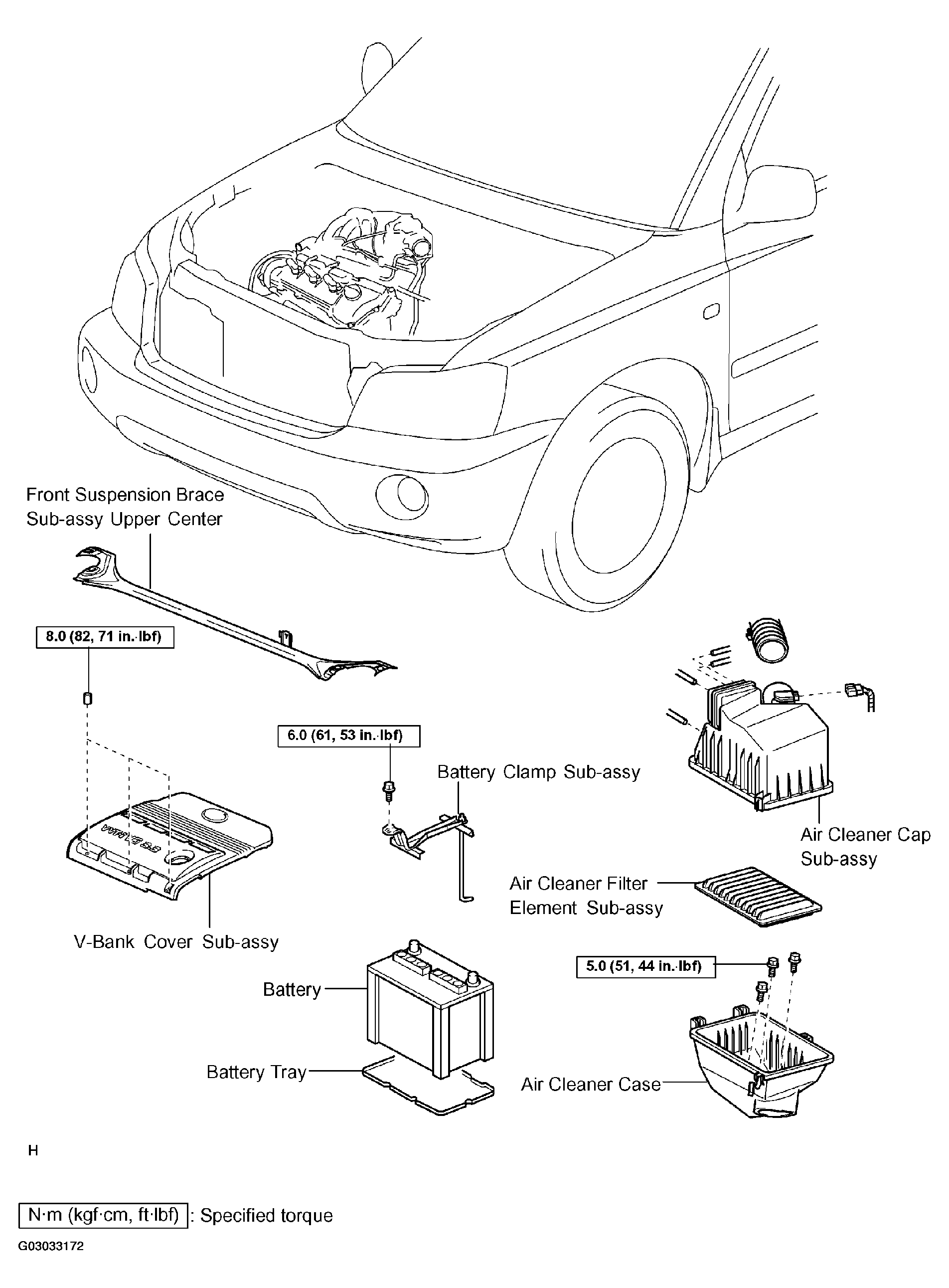

Fig 6: Identifying Partial Engine Assy (3MZ-FE) Components (6 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

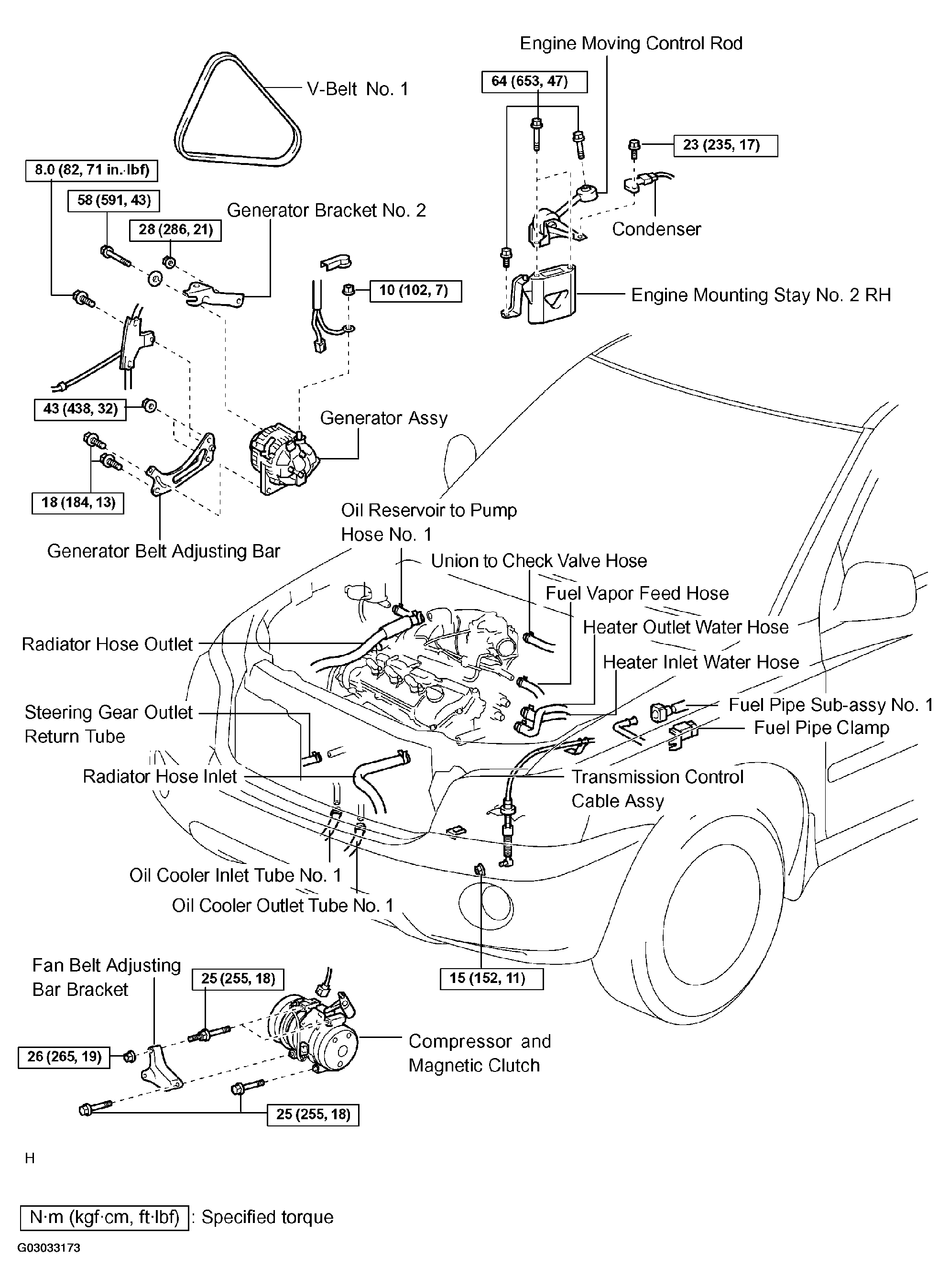

Fig 7: Identifying Partial Engine Assy (3MZ-FE) Components (7 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

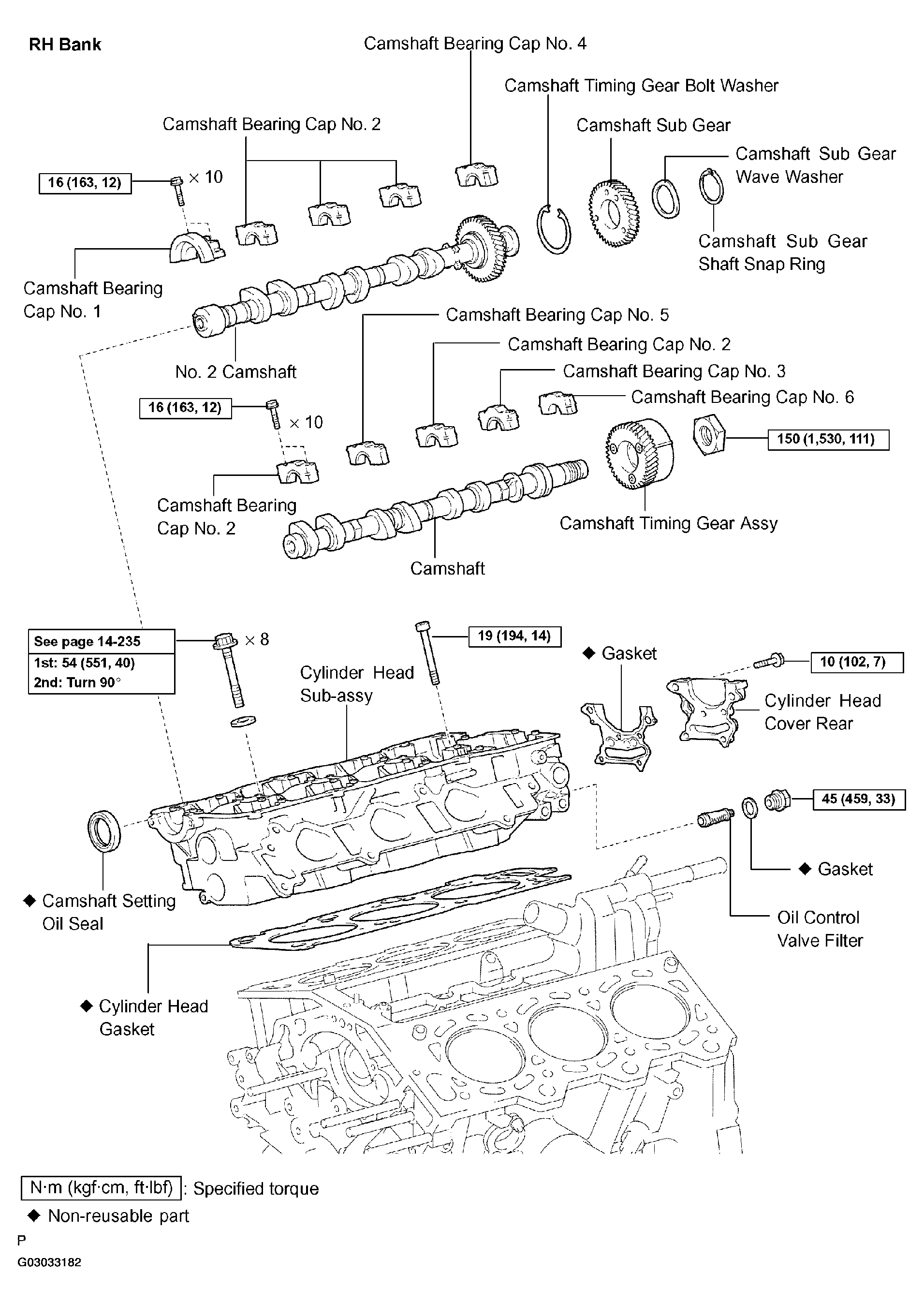

Fig 8: Identifying Partial Engine Assy (3MZ-FE) Components (8 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

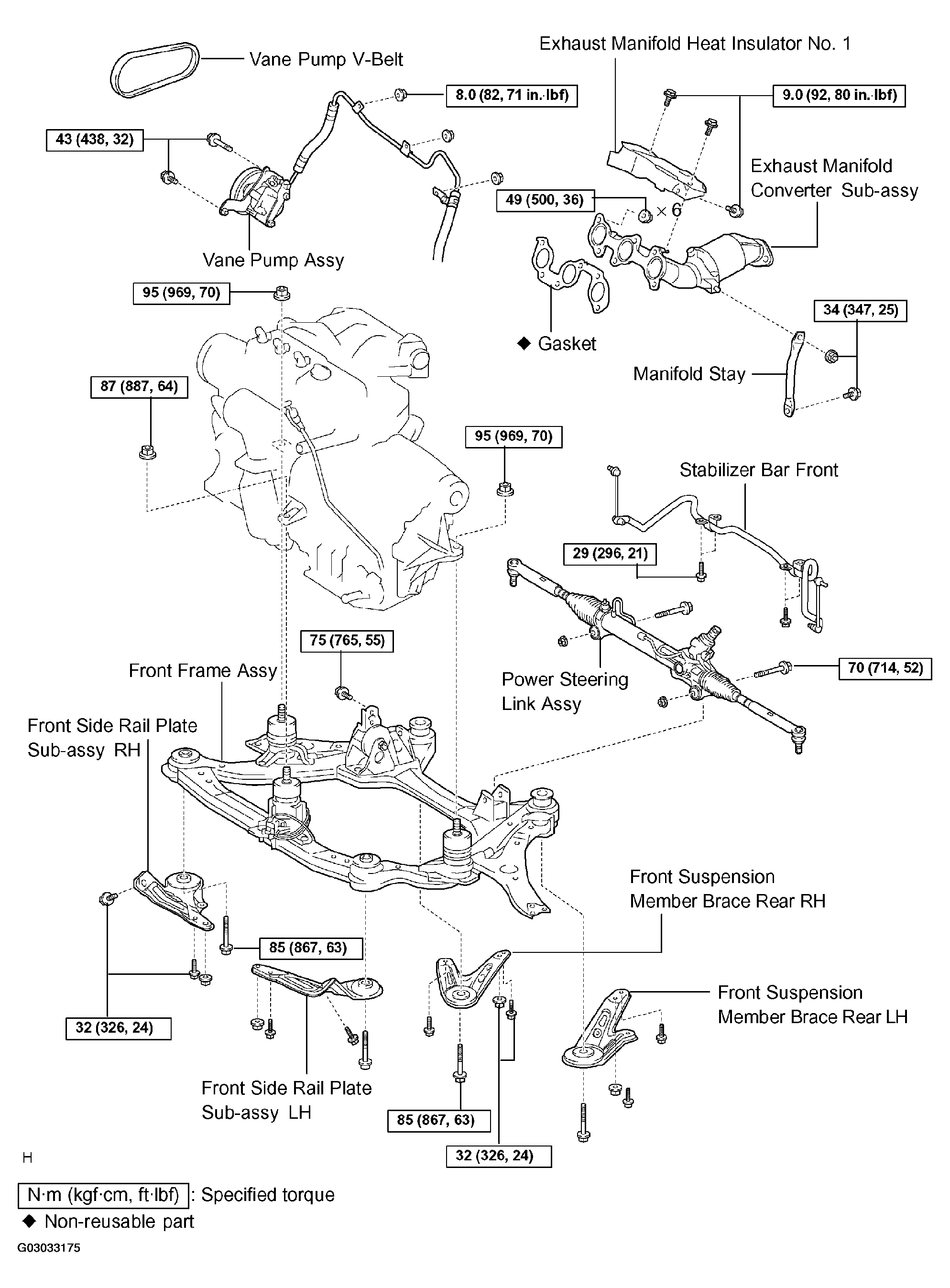

Fig 9: Identifying Partial Engine Assy (3MZ-FE) Components (9 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

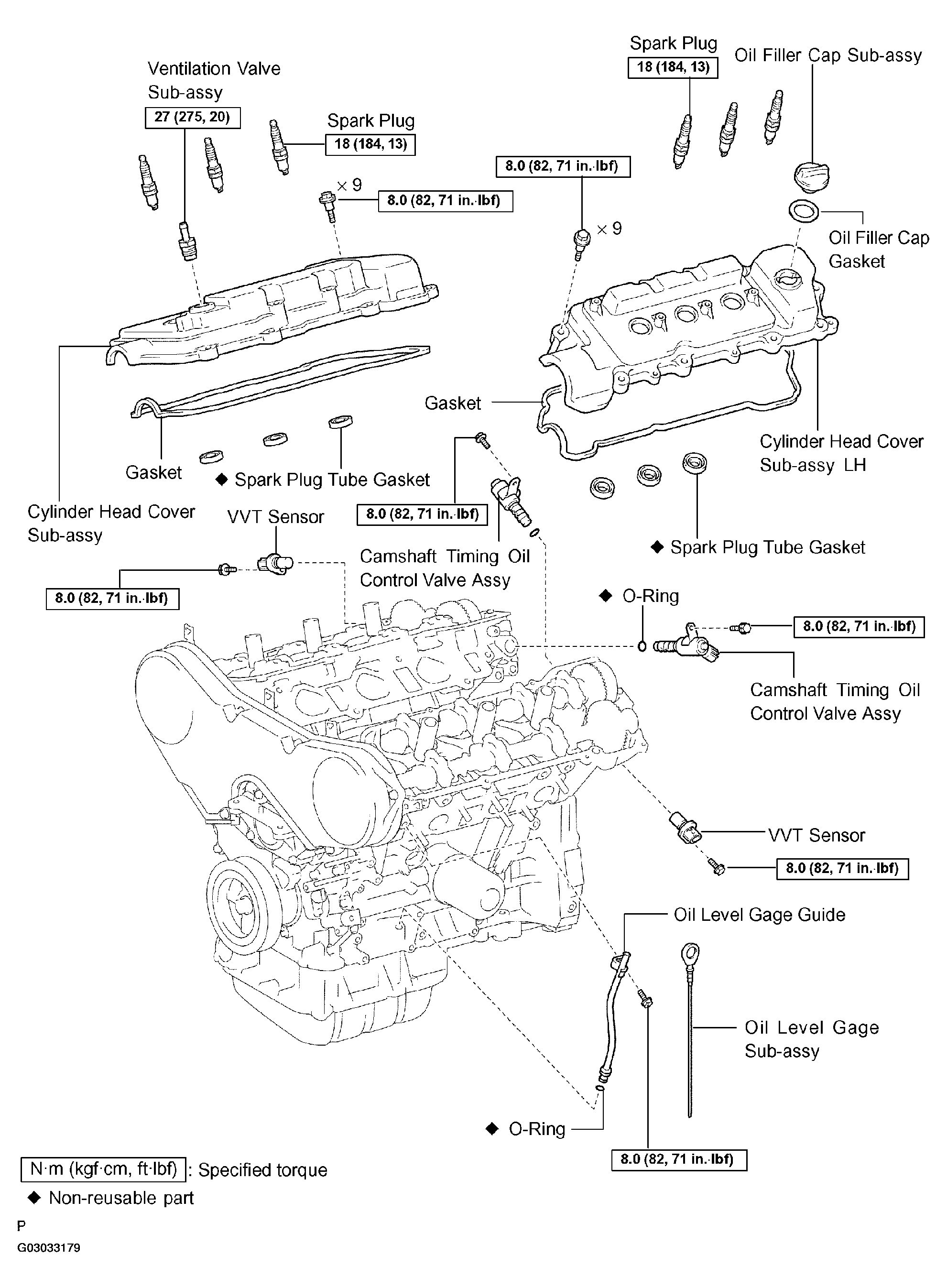

Fig 10: Identifying Partial Engine Assy (3MZ-FE) Components (10 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

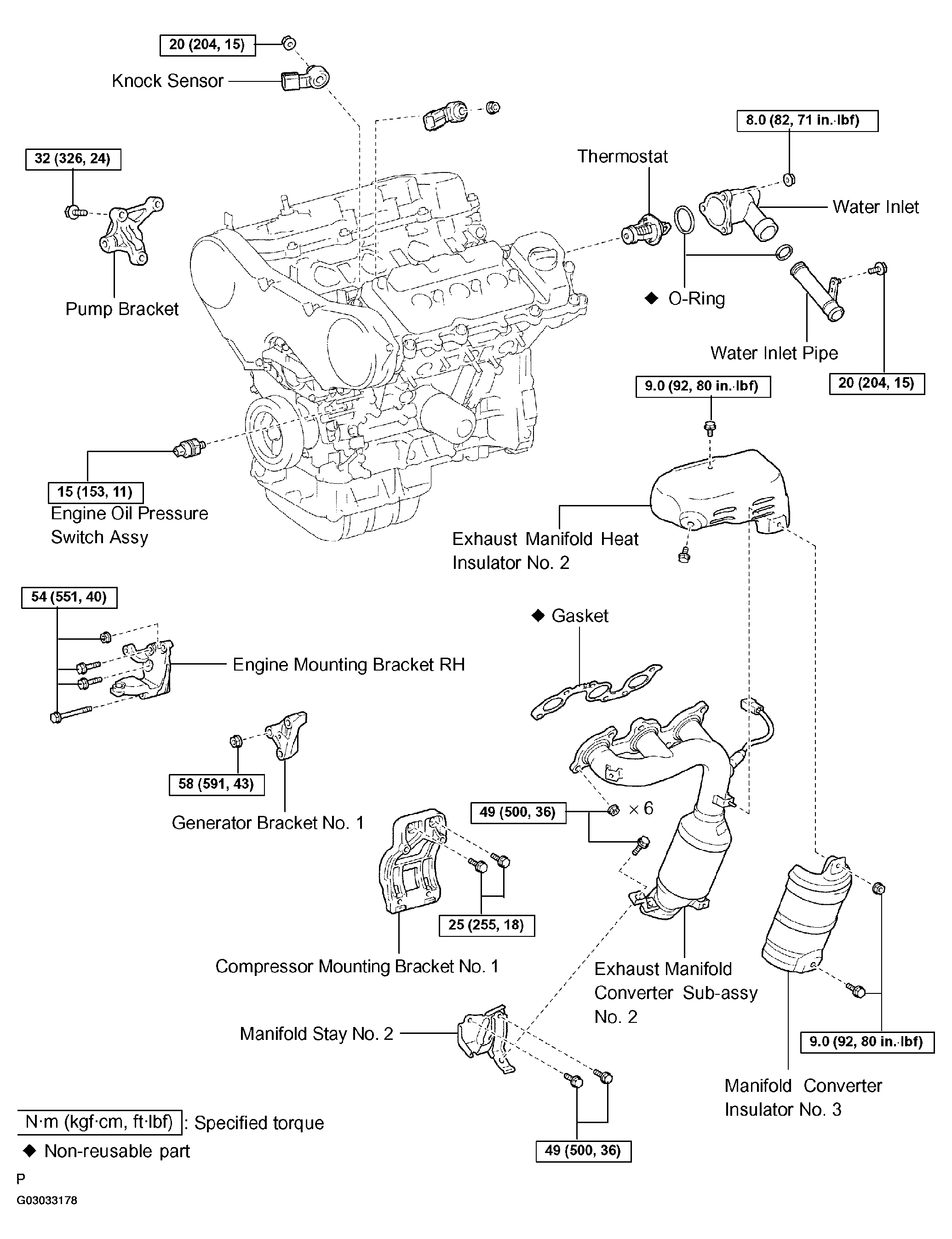

Fig 11: Identifying Partial Engine Assy (3MZ-FE) Components (11 of 15)

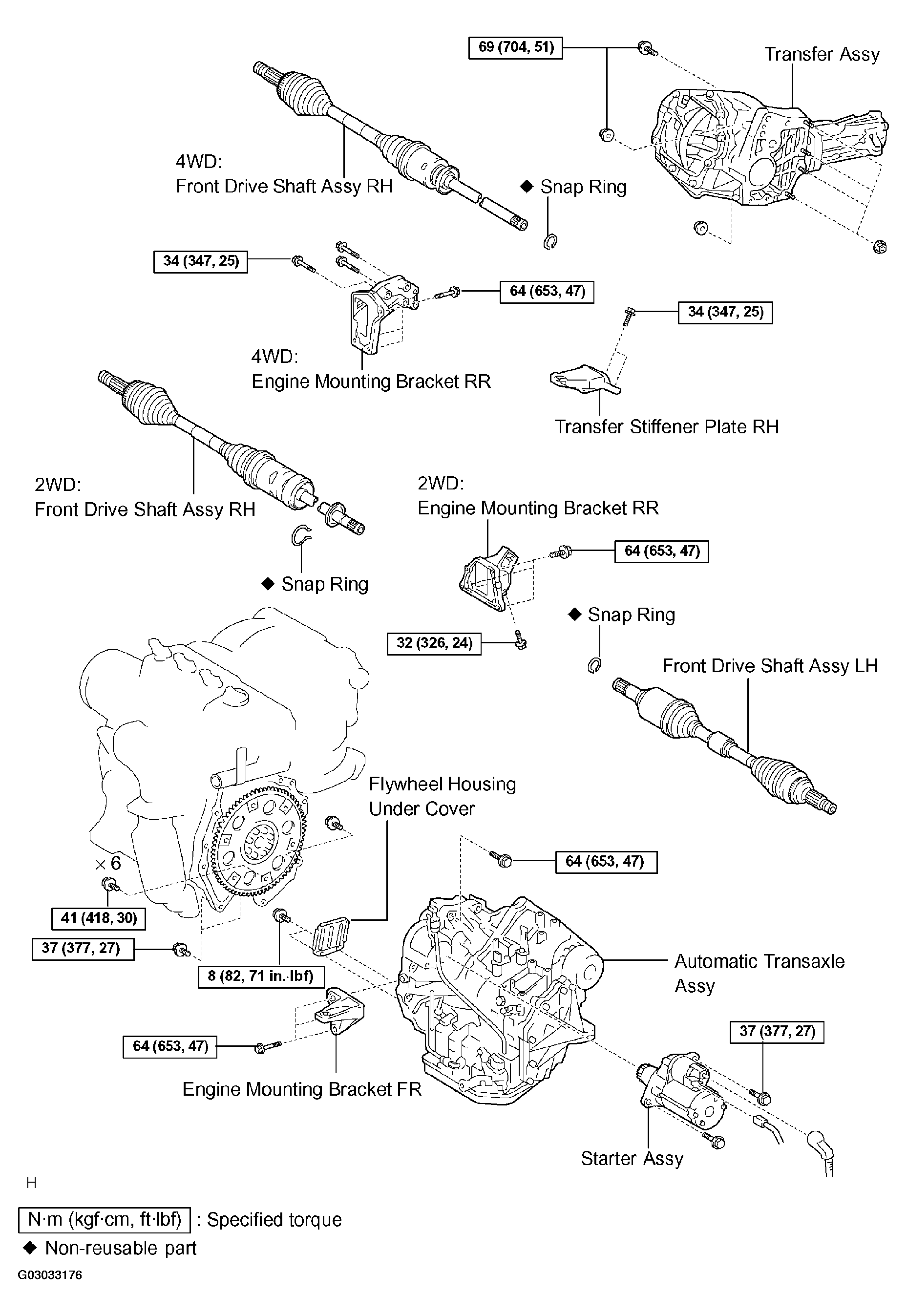

Fig 12: Identifying Partial Engine Assy (3MZ-FE) Components (12 of 15)

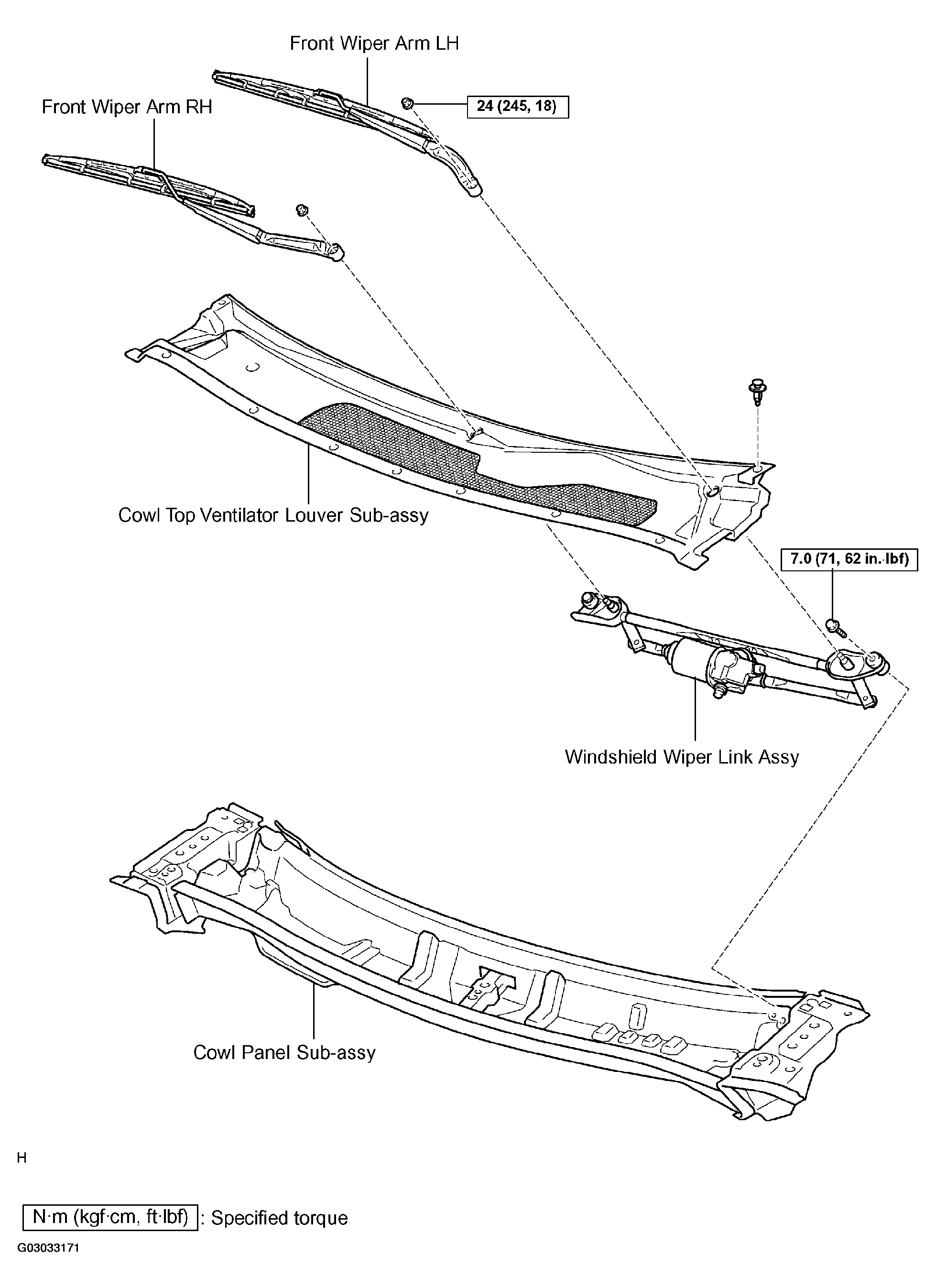

Fig 13: Identifying Partial Engine Assy (3MZ-FE) Components (13 of 15)

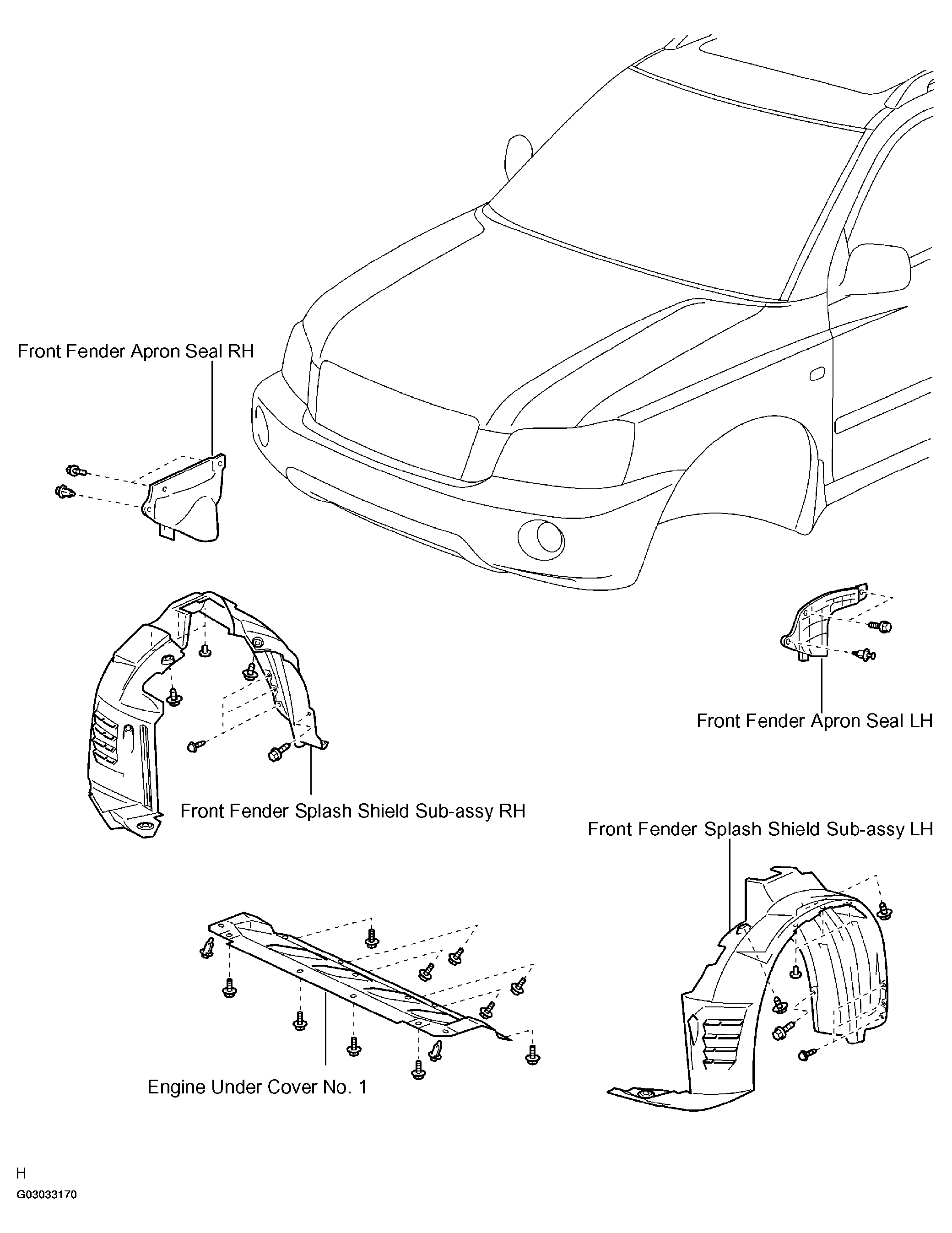

Fig 14: Identifying Partial Engine Assy (3MZ-FE) Components (14 of 15)

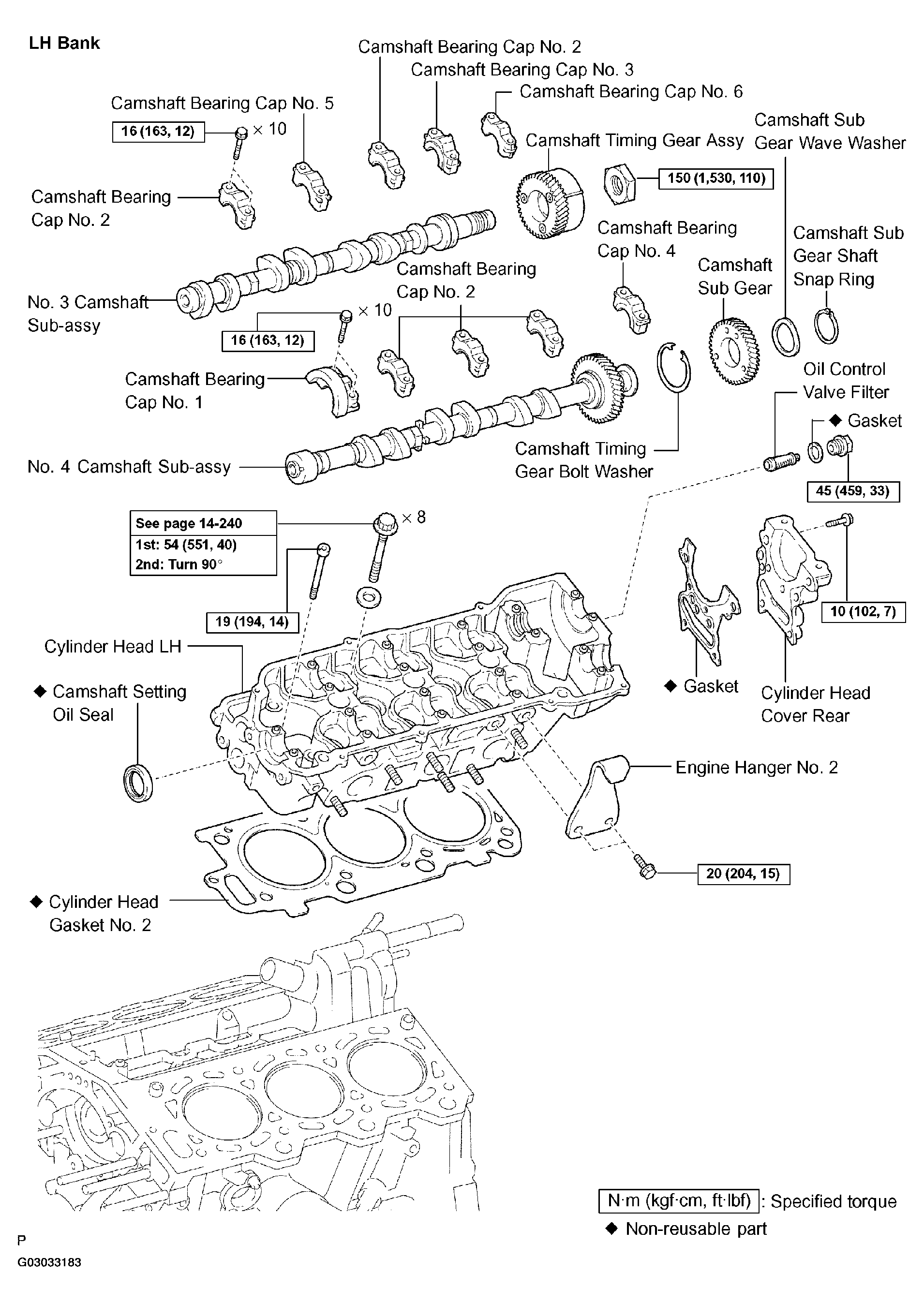

Fig 15: Identifying Partial Engine Assy (3MZ-FE) Components (15 of 15)
