Engine Rear Oil Seal (3MZ-FE): Replacement

REMOVE AUTOMATIC TRANSAXLE ASSY (2WD TYPE) (See REPLACEMENT )
REMOVE AUTOMATIC TRANSAXLE W/TRANSFER (4WD TYPE) (See REPLACEMENT )
REMOVE DRIVE PLATE & RING GEAR SUB-ASSY
1. Using SST, hold the crankshaft.
  SST 09213-54015 (91651-60855), 09330-00021

  Fig 1: Holding Crankshaft With SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

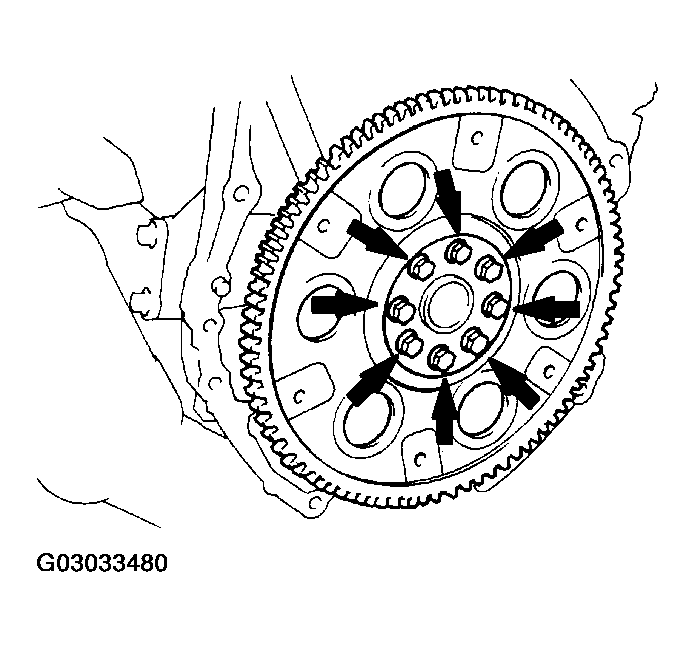

2. Remove the 8 bolts, the rear spacer, the drive plate and the front spacer.
Fig 2: Removing 8 Bolts, Rear Spacer, Drive Plate And Front Spacer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE REAR OIL SEAL

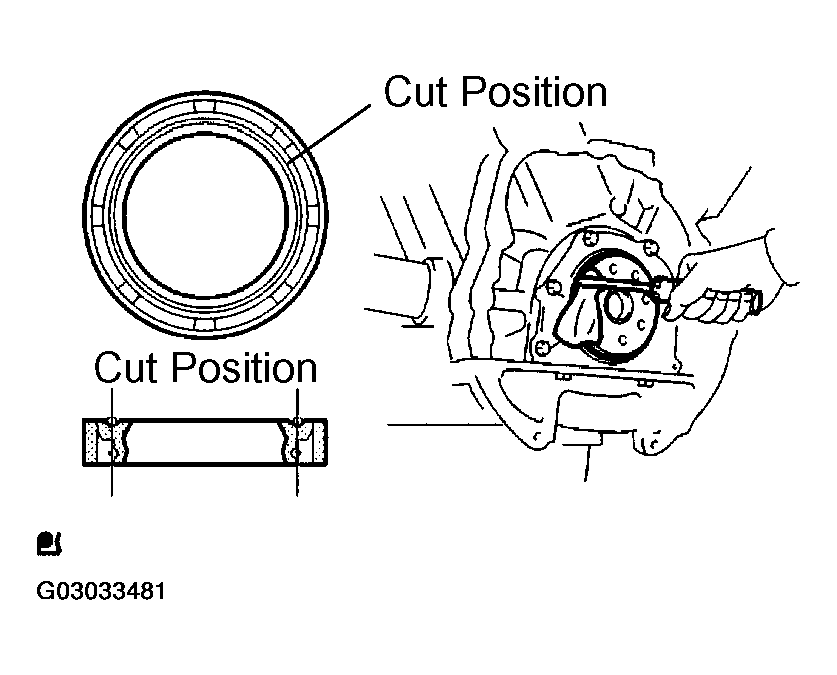

1. Using a knife, cut off the oil seal lip.
2. Using a screwdriver with its tip wrapped in tape, pry out the oil seal.
NOTE: After the removal, check if the crankshaft is not damaged. If it is damaged, smooth the surface with 400-grit sandpaper.

Fig 3: Removing Engine Rear Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE REAR OIL SEAL
1. Apply MP grease to a new oil seal lip.
  NOTE: Keep the lip off foreign materials.
2. Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.
  SST 09223-15030, 09950-70010 (09951-07100)
  NOTE:
  - Be careful not to tap the oil seal at an angle.
  - Wipe off extra grease from the crankshaft.
Fig 4: Installing Engine Rear Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DRIVE PLATE & RING GEAR SUB-ASSY
1. Using SST, hold the crankshaft.
  SST 09213-54015 (91651-60855), 09330-00021
2. Clean the bolts and bolt holes.
3. Apply adhesive to 2 or 3 threads of the bolts.
  Adhesive:

  Part No. 08833-00070, THREE BOND 1324 or equivalent
4. Install the front spacer, the drive plate and the rear spacer on the crankshaft.

  Fig 5: Holding Crankshaft With SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

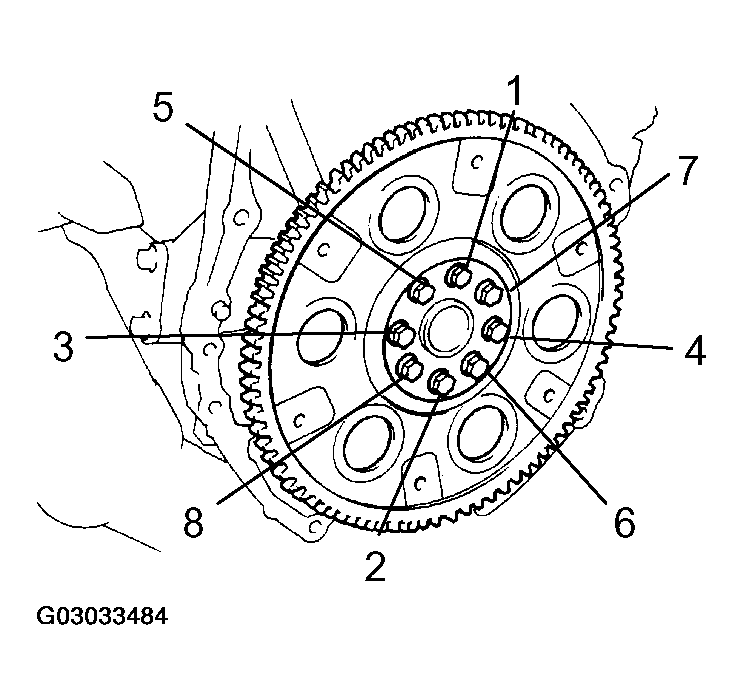

5. Uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
  Torque: 83 N.m (846 kgf.cm, 61 ft.lbf)

  NOTE: Do not start the engine for at least an hour after installing.
Fig 6: Tightening 8 Bolts In Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AUTOMATIC TRANSAXLE W/TRANSFER (4WD TYPE) (See REPLACEMENT )
INSTALL AUTOMATIC TRANSAXLE ASSY (2WD TYPE) (See REPLACEMENT )
