Drive Belt (3MZ-FE): Replacement

  1. REMOVE FRONT WHEEL RH
  2. REMOVE ENGINE UNDER COVER NO.1
  3. REMOVE FRONT FENDER APRON SEAL RH
  4. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
    1. Loosen bolts A and B.
    2. Loosen adjusting bolt C and remove the belt.
    Fig 1: Loosen Adjusting Bolt C & Removing Belt
    G00802939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE VANE PUMP V BELT
    1. Loosen bolts A and B, and remove the belt.
    Fig 2: Loosen Bolts A & B & Removing Belt
    G00802940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL VANE PUMP V BELT
    1. Install the belt on each pulley.
    2. Using a bar, adjust the belt tension and tighten bolt B.
      • Torque: 43 N.m (438 kgf.cm, 32 ft.lbf)
    3. Tighten bolt A.
      • Torque: 43 N.m (438 kgf.cm, 32 ft.lbf)
    Fig 3: Adjusting Belt Tension & Tightening Bolt B
    G00802941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1
    1. Install the belt on each pulley.
    2. Tighten adjusting bolt C, and adjust the belt tension.
    3. First tighten bolt A, and then B.

      Torque:

      • 58 N.m (591 kgf.cm, 43 ft.lbf) for bolt A
      • 18 N.m (184 kgf.cm, 13 ft.lbf) for bolt B

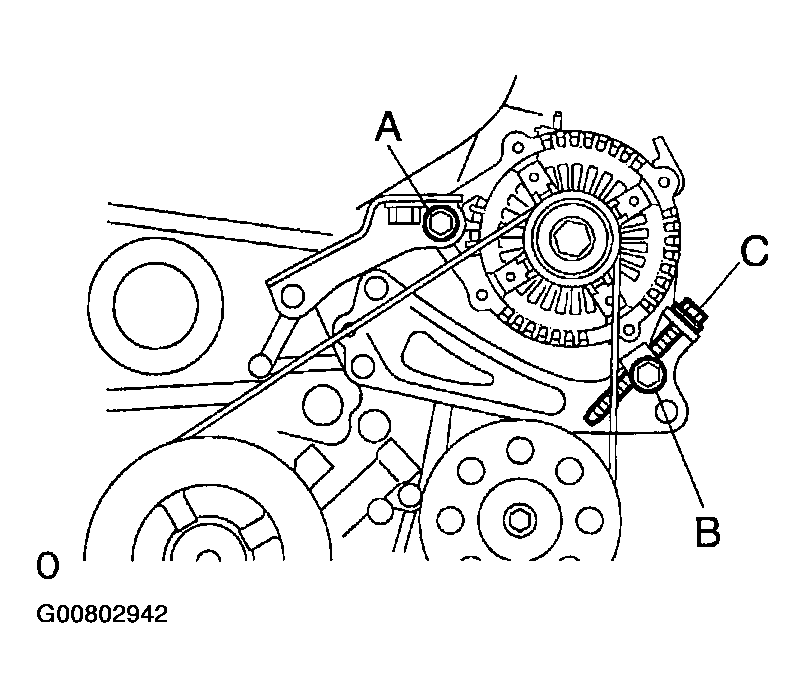

    Fig 4: Installing Belt On Each Pulley
    G00802942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSPECT DRIVE BELT TENSION (See  INSPECTION  )
