Replacement

HINT:

The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.

1. DRAIN ENGINE COOLANT (See  REPLACEMENT  )
2. REMOVE RADIATOR HOSE OUTLET
3. REMOVE WATER INLET PIPE
   1. Remove the bolt and inlet pipe.
4. REMOVE WATER INLET
   1. Remove the 3 bolts and water inlet
5. REMOVE THERMOSTAT
6. INSTALL THERMOSTAT
   1. Install a new gasket to the thermostat.

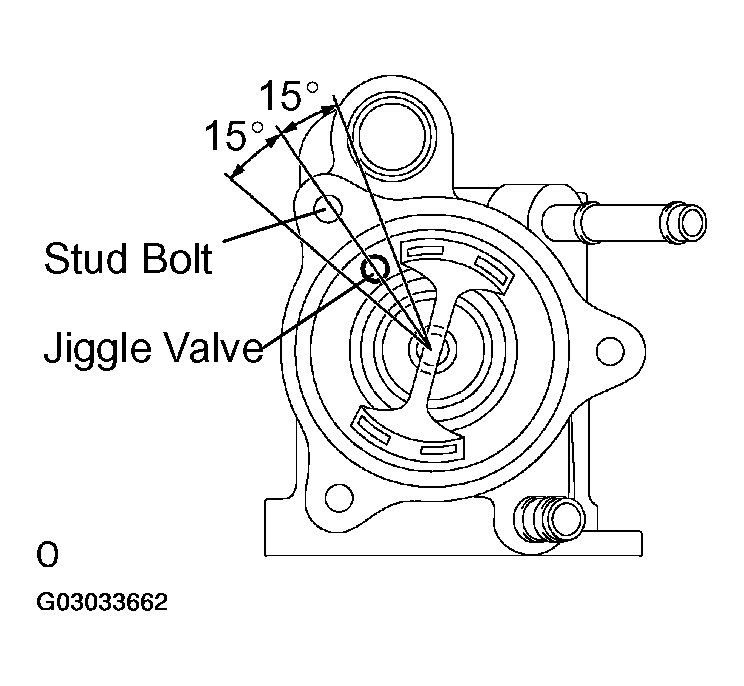

      Fig 1: Aligning Thermostat Jiggle Valve With Upper Stud Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Align the thermostat jiggle valve with the upper stud bolt, and insert the thermostat into the water inlet housing.

   HINT:

   The jiggle valve may be set within 15° of either side of the prescribed position.

7. INSTALL WATER INLET

   Torque: 8.0 NVm (82 kgfVcm, 71 in.Vlbf)

8. INSTALL WATER INLET PIPE
   1. Install a new O-ring to the inlet pipe.
   2. Apply soapy water to the O-ring.
   3. Connect the inlet pipe to the water inlet.
   4. Install the bolt holding the inlet pipe to the cylinder head.

      Torque: 20 NVm (204 kgfVcm, 15 ftVlbf)

9. ADD ENGINE COOLANT (See  REPLACEMENT  )
10. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )
