Combination Meter - Diagnostics: Location

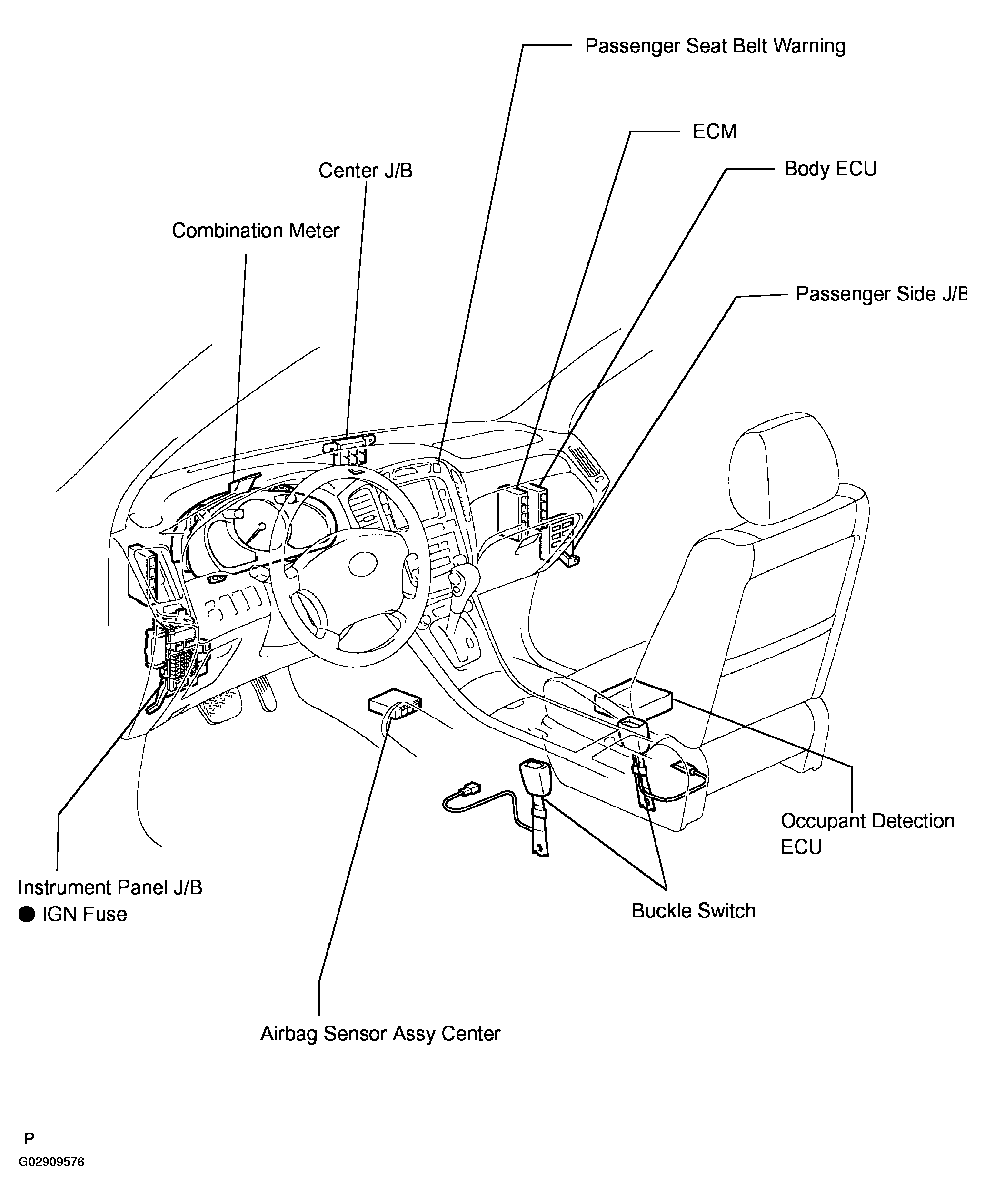

Fig 1: Identifying Location Of Electrical Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

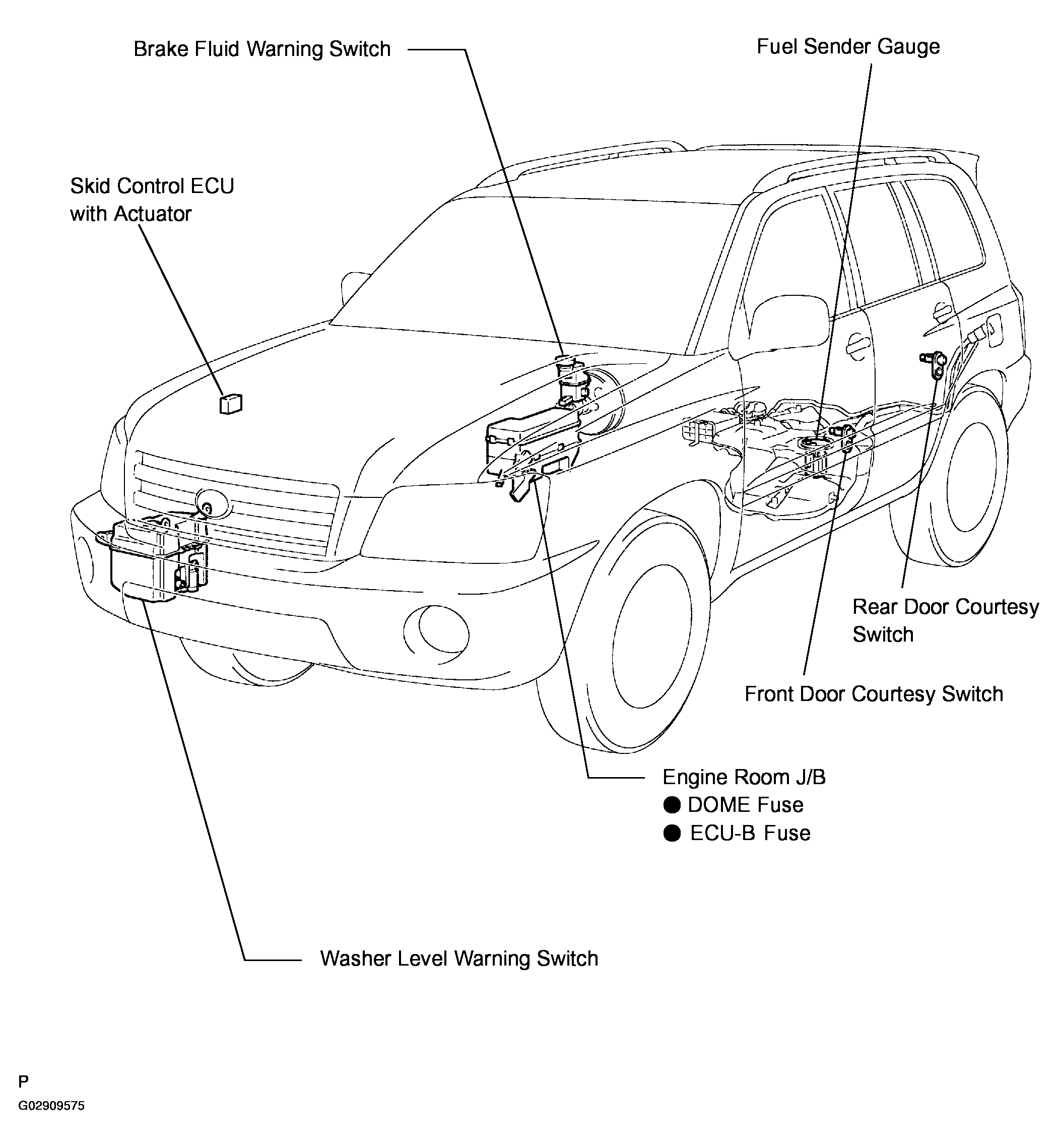

Fig 2: Identifying Location Of Electrical Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

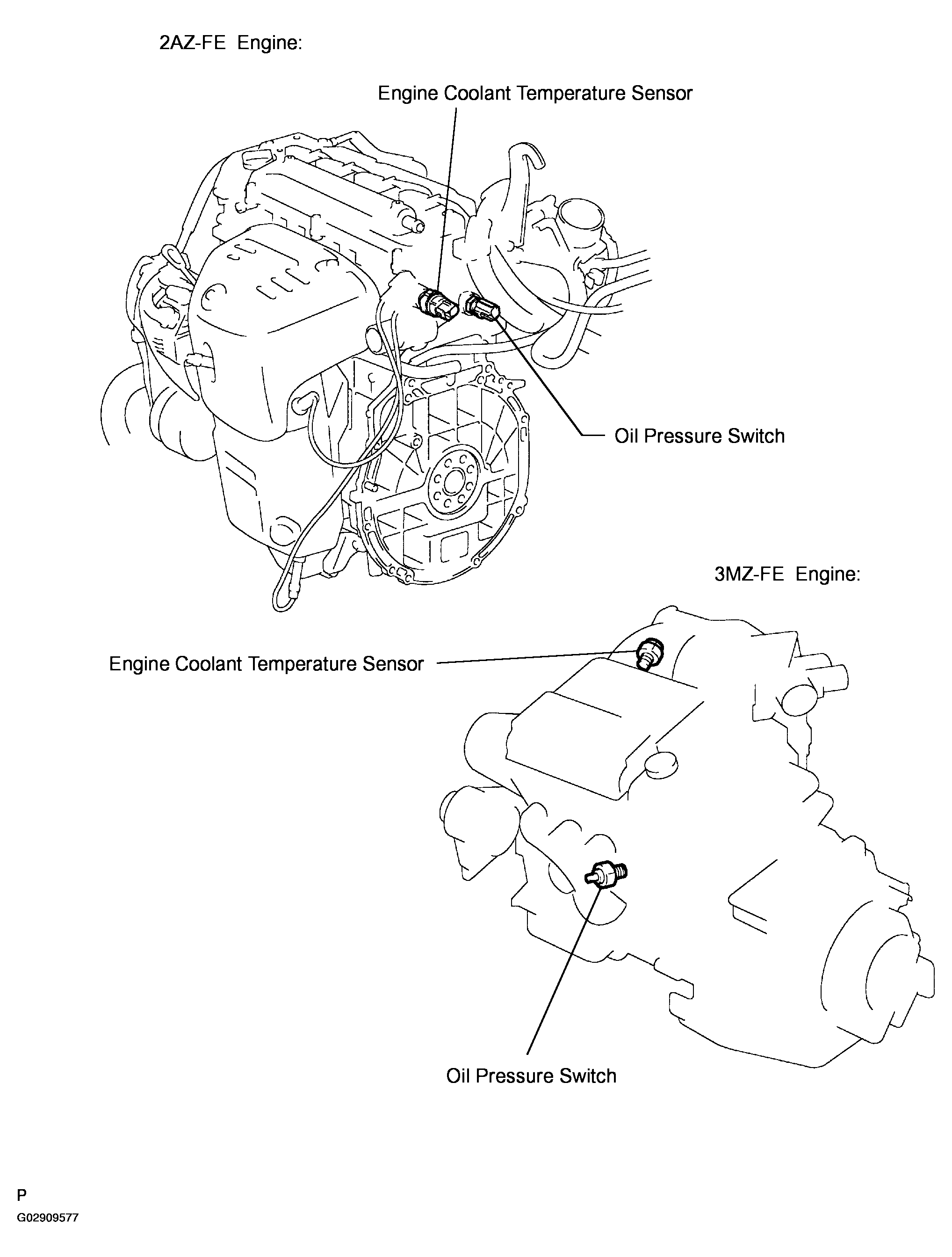

Fig 3: Identifying Location Of Sensors And Switches

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

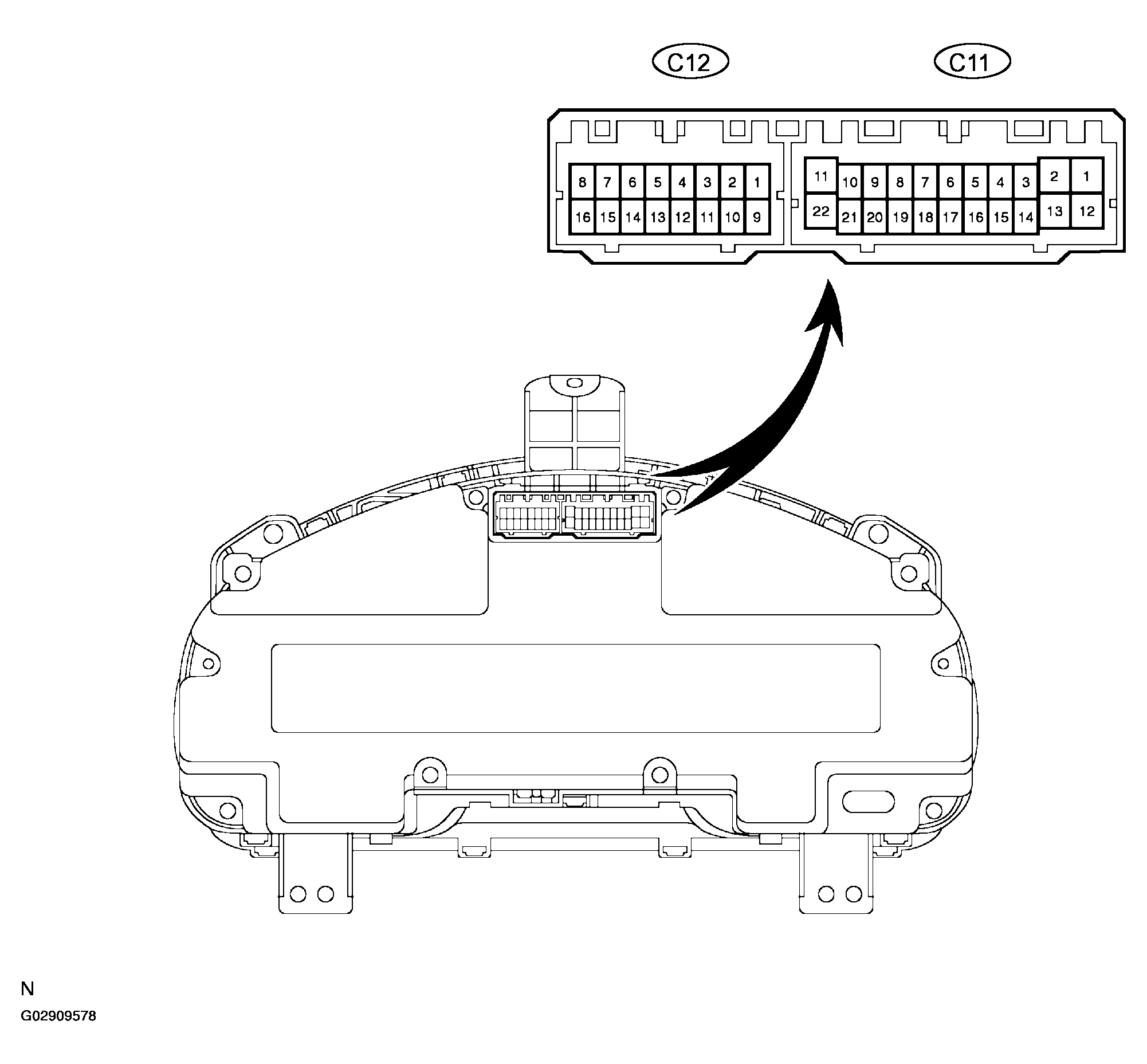

Fig 4: Identifying Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

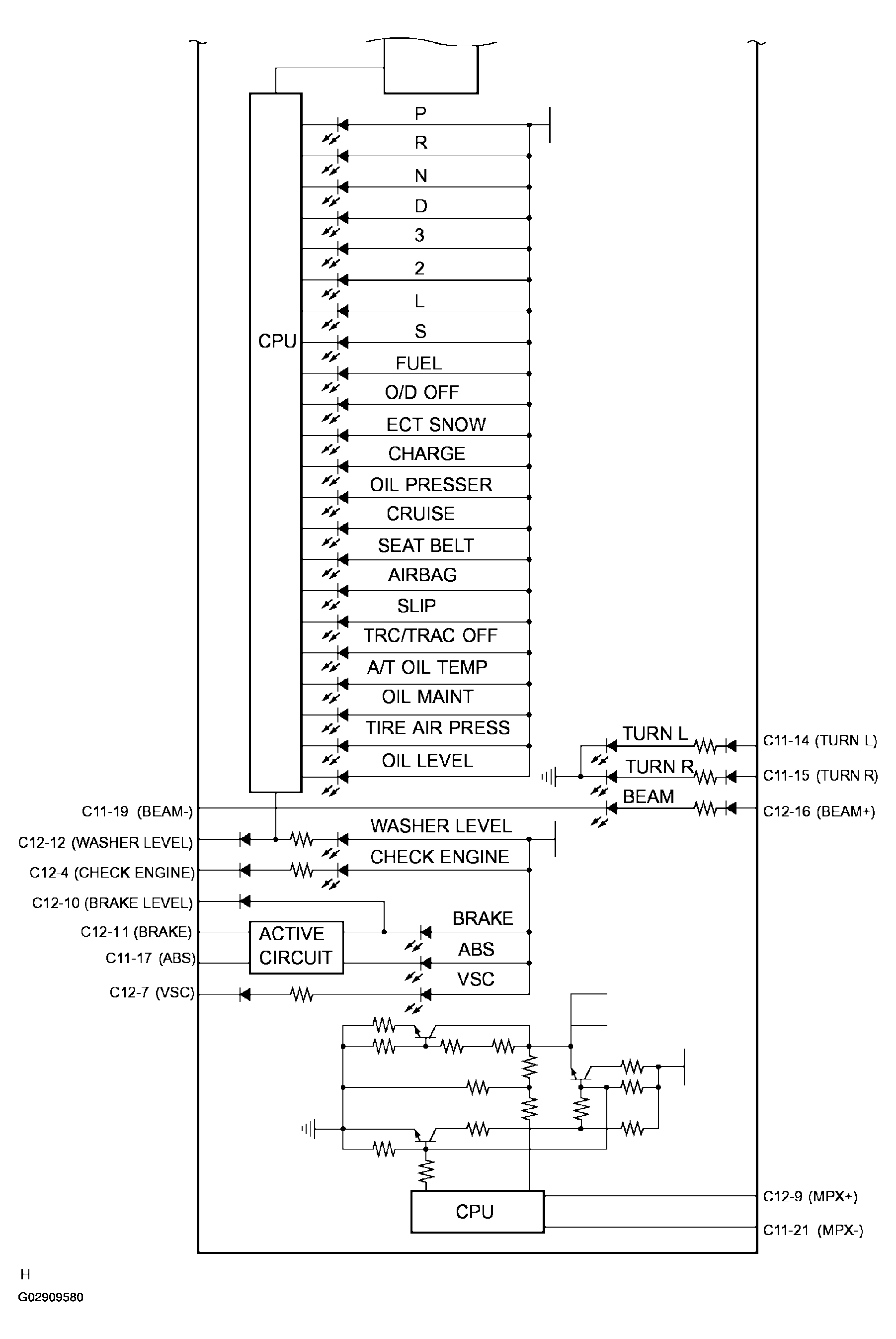

Fig 5: Identifying Combination Meter Schematic Diagram (1 Of 2)

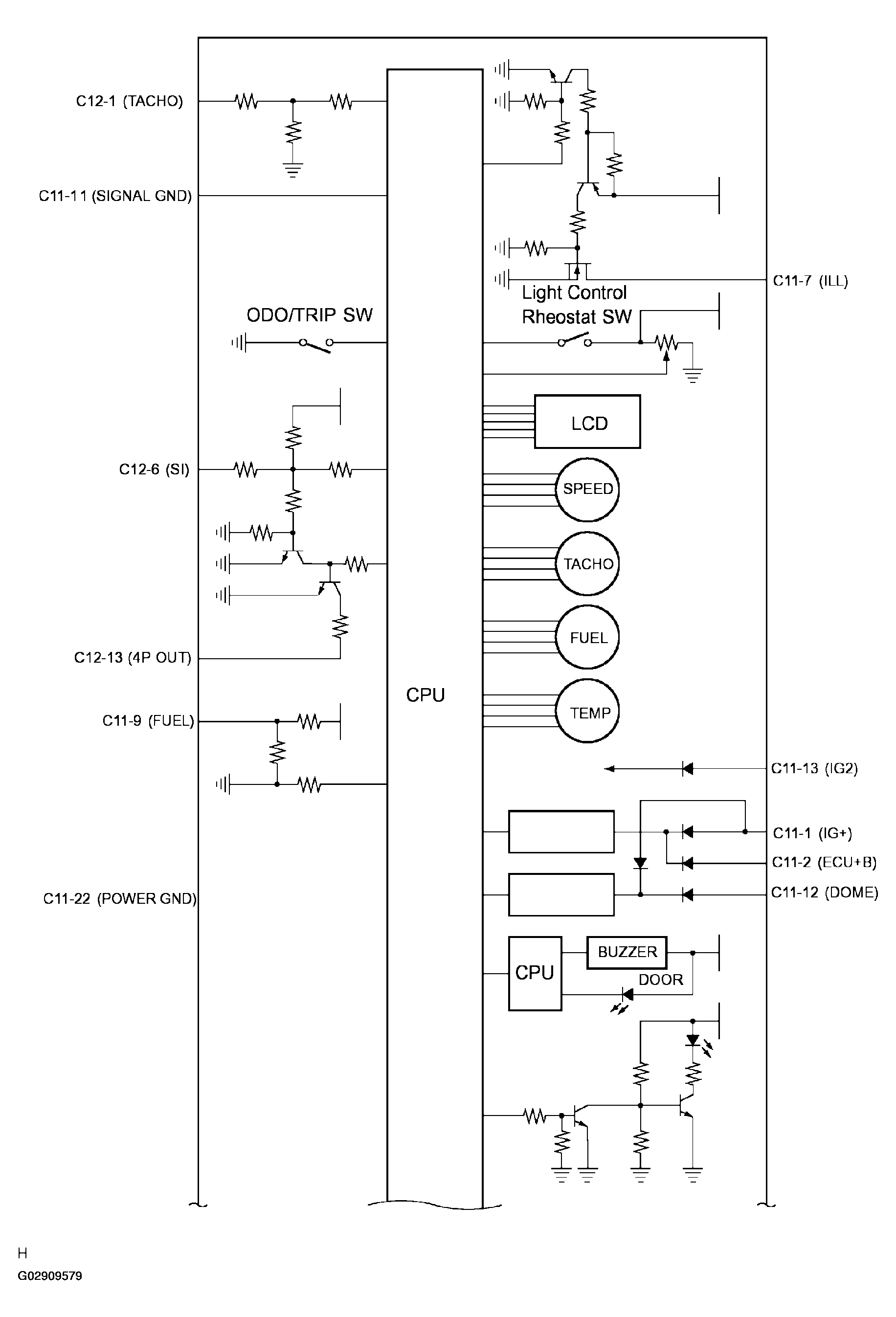

Fig 6: Identifying Combination Meter Schematic Diagram (1 Of 2)

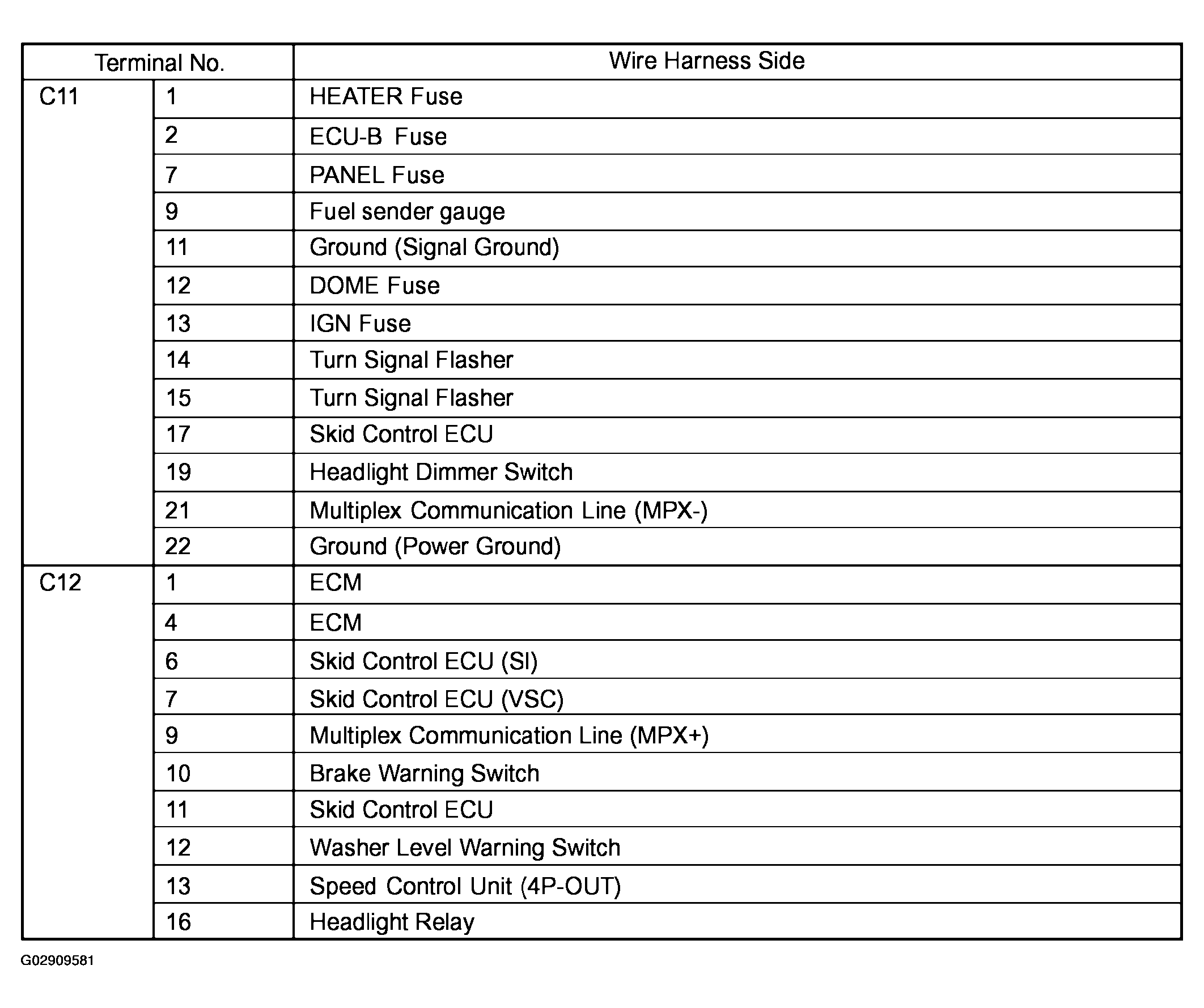

Fig 7: Identifying Terminal And Wire Harness Side Table
