Inspection Procedure

1. Is DTC output for ABS and VSC?
   Diagnostic Trouble Codes OUTPUT CHART



   DTC is not output	A
   DTC is output	B

1. B: REPAIR CIRCUIT INDICATED BY OUTPUT CODE
2. A: GO TO NEXT STEP.

1. NG: CONNECT CONNECTOR TO ECU
2. OK: GO TO NEXT STEP.

1. Check the battery voltage.

   Standard:

   SPECIFICATION TESTER CONNECTION



   Tester Connection	Specified Condition
   Battery terminal ((+) - ((-))	11 to 14 V

1. NG: INSPECT CHARGING SYSTEM (See  REMOVAL & INSTALLATION  )
2. OK: GO TO NEXT STEP.

WHEN USING HAND-HELD TESTER:

1. Connect the hand-held tester to the DLC3.
2. Start the engine.
3. Select the DATA LIST mode on the hand-held tester.
4. Check the voltage condition output from the ECU displayed on the hand-held tester.
   MEASUREMENT ITEM / RANGE (DISPLAY) CHART



   Item	Measurement Item / Range (Display)	Normal Condition
   IG VOLTAGE	ECU power supply voltage / TOO LOW / NORMAL	NORMAL: 9.5 V or over UNDER: Below 9.5 V

   OK: "Normal" is displayed.

WHEN NOT USING HAND-HELD TESTER:

1. Disconnect the skid control ECU connector.
2. Turn the ignition switch to the ON position.
3. Measure the voltage according to the value (s) in the table below.

   Standard:

   SPECIFICATION TESTER CONNECTION



   Tester Connection	Specified Condition
   S27-46 (IG1) - S27-32 (GND)	11 to 14 V

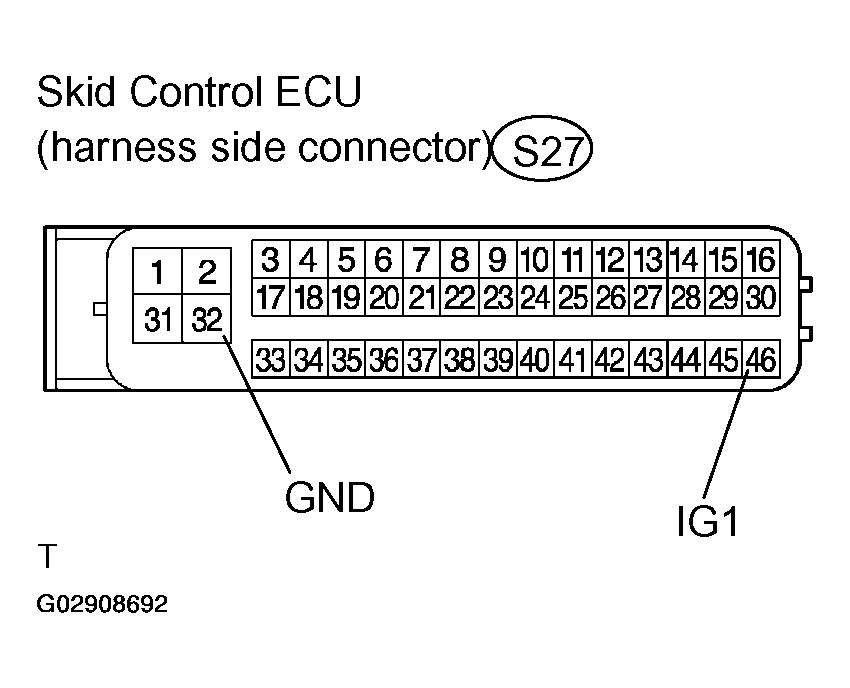

   Fig 1: Inspecting Charging System

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
2. OK: GO TO NEXT STEP.

1. Disconnect the skid control ECU connector and combination meter connector.
2. Measure the resistance according to the value (s) in the table below.

   Standard:

   SPECIFICATION TESTER CONNECTION



   Tester Connection	Specified Condition
   C12-7-S27-36 (VSCW)	Below 1 Ω

3. Measure the resistance according to the value (s) in the table below.

   Standard:

   SPECIFICATION TESTER CONNECTION



   Tester Connection	Specified Condition
   S27-36 (VSCW) - Body ground	10 kΩ or higher

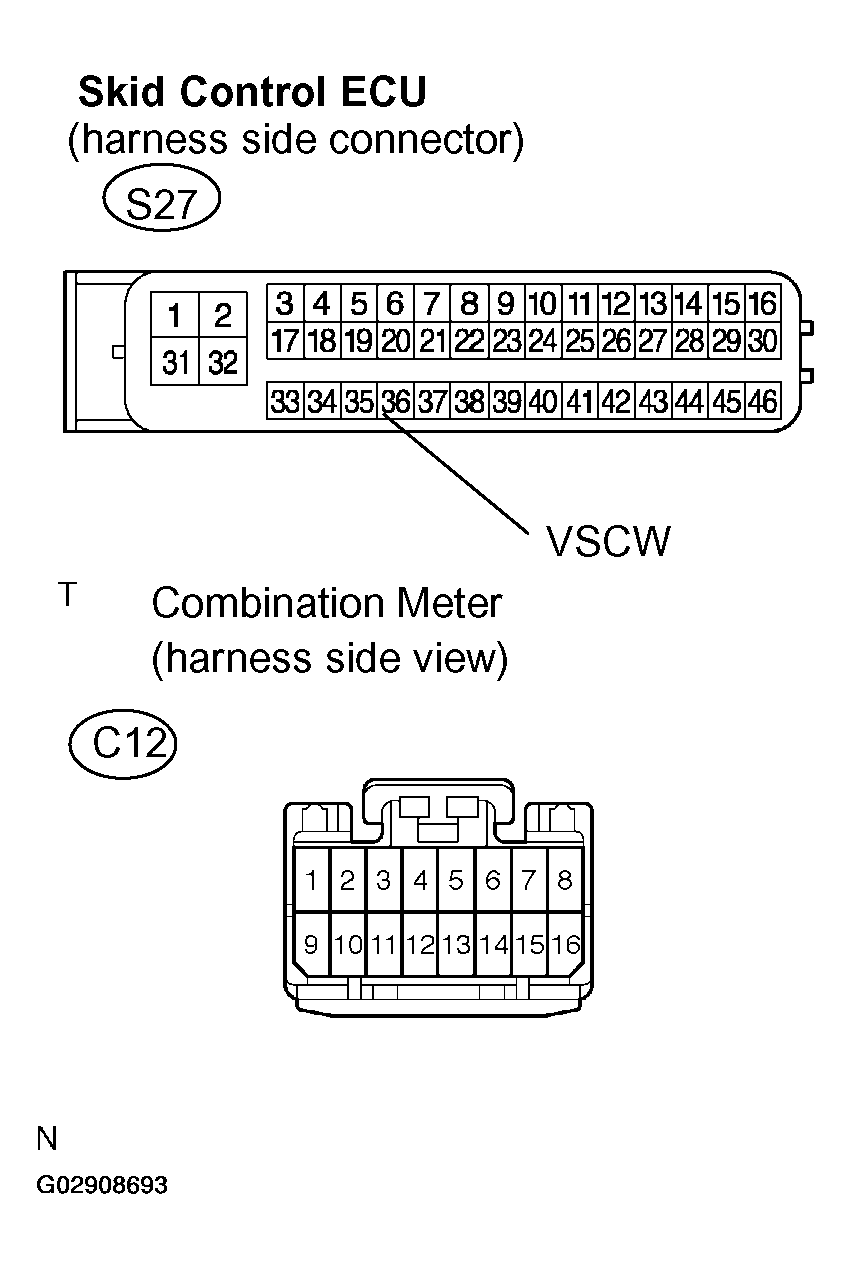

   Fig 2: Checking Harness And Connector (Skid Control ECU - Combination Meter)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
2. OK: GO TO NEXT STEP.

1. Disconnect the skid control ECU connector.
2. Measure the resistance according to the value (s) in the table below.

   Standard:

   SPECIFICATION TESTER CONNECTION



   Tester Connection	Specified Condition
   S27-32 (GND) - Body ground	Below 1 Ω

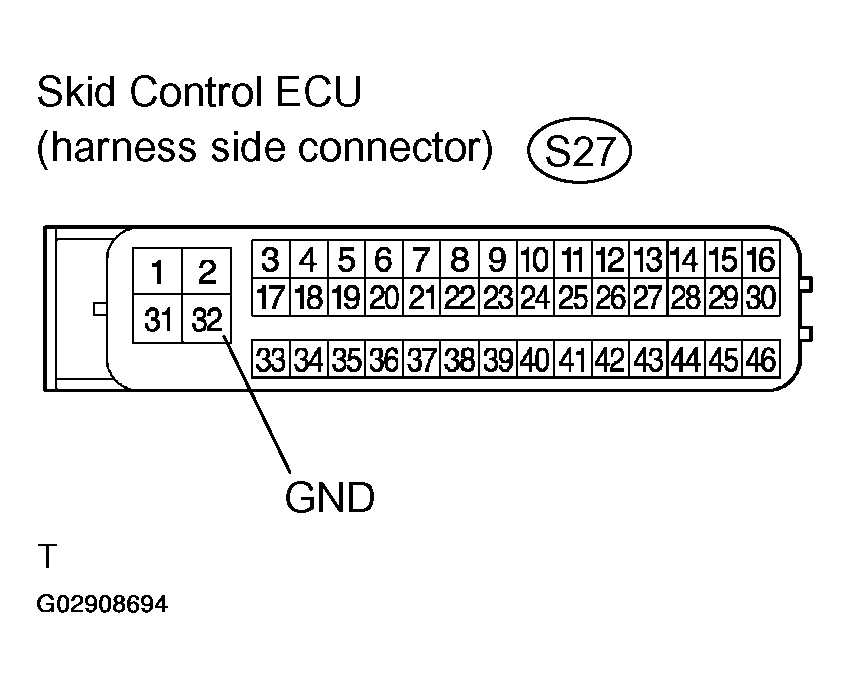

   Fig 3: Checking Harness And Connector (Skid Control ECU - Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS CONNECTOR
2. OK: REPLACE ABS & TRACTION ACTUATOR ASSY (See  REPLACEMENT  )
