VSC Warning Light Circuit (Does Not Light Up): Wiring Diagram

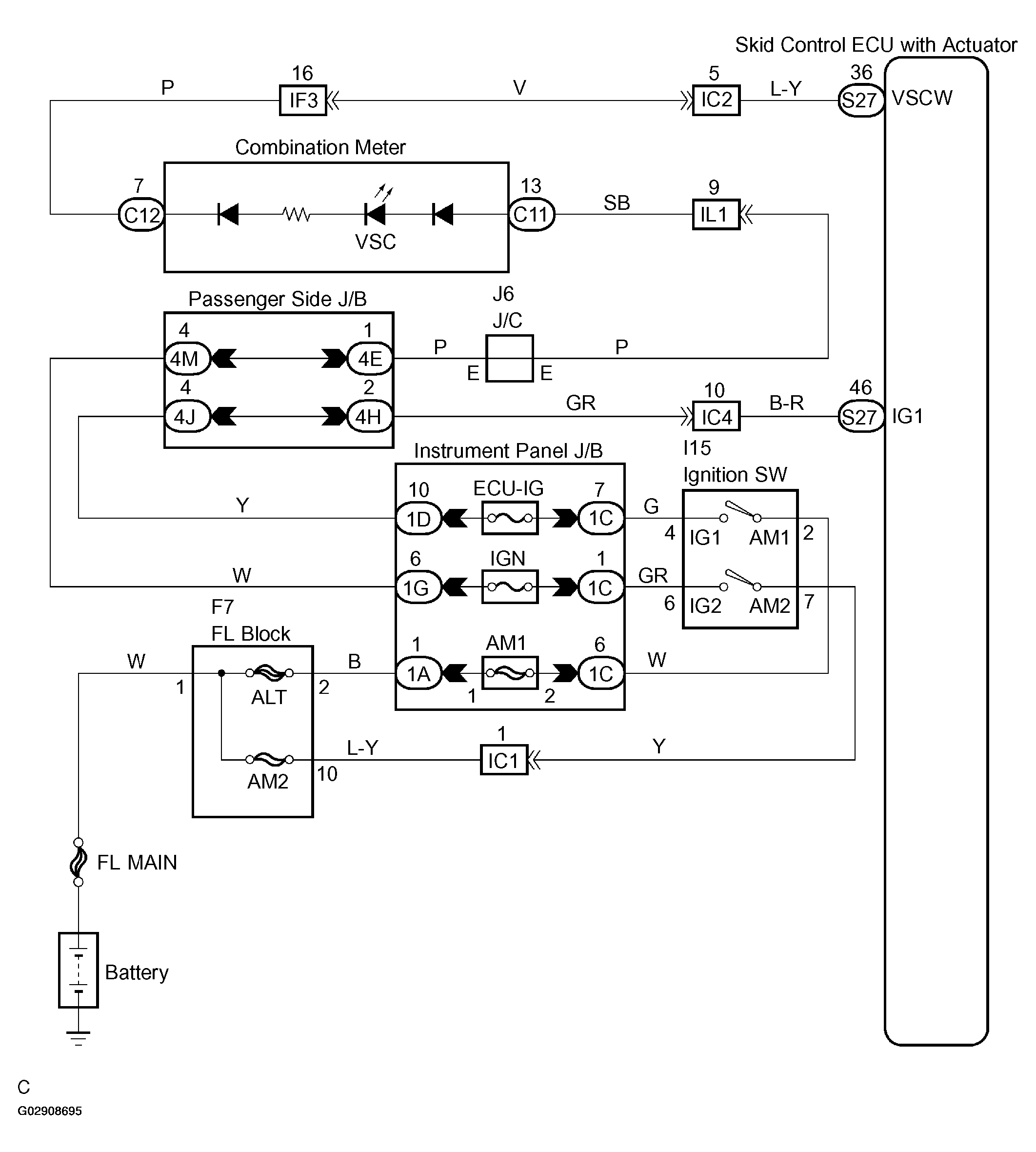

Fig 1: Identifying Circuit Description

G02908695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
