TRAC Off Indicator Light, TRAC Off Switch Circuit: Wiring Diagram

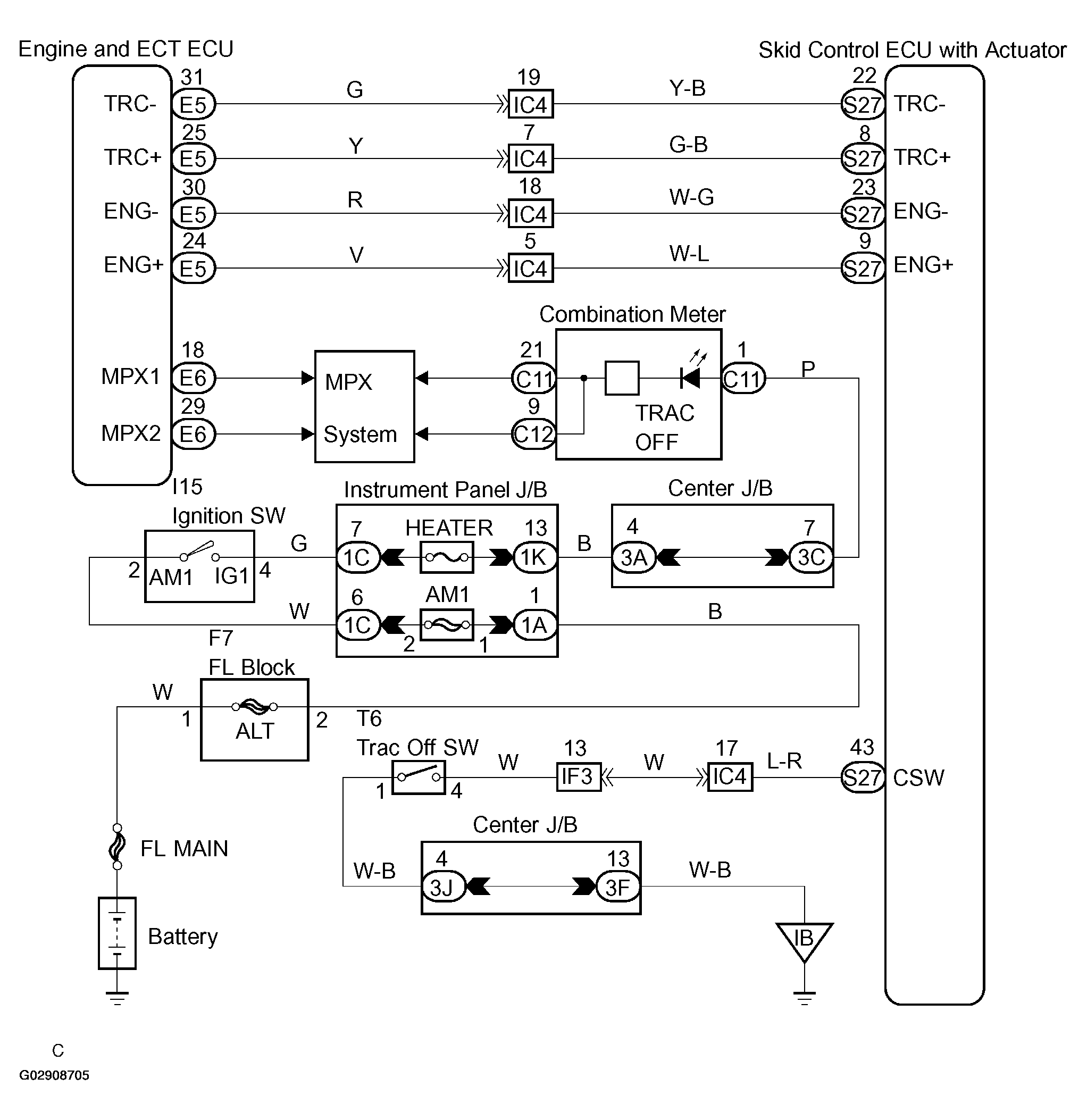

Fig 1: Identifying Circuit Description

G02908705

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
