Diagnostic Trouble Codes chart of ABS:
HINT:
- In some cases, the hand-held tester cannot be used when ABS warning light remains on.

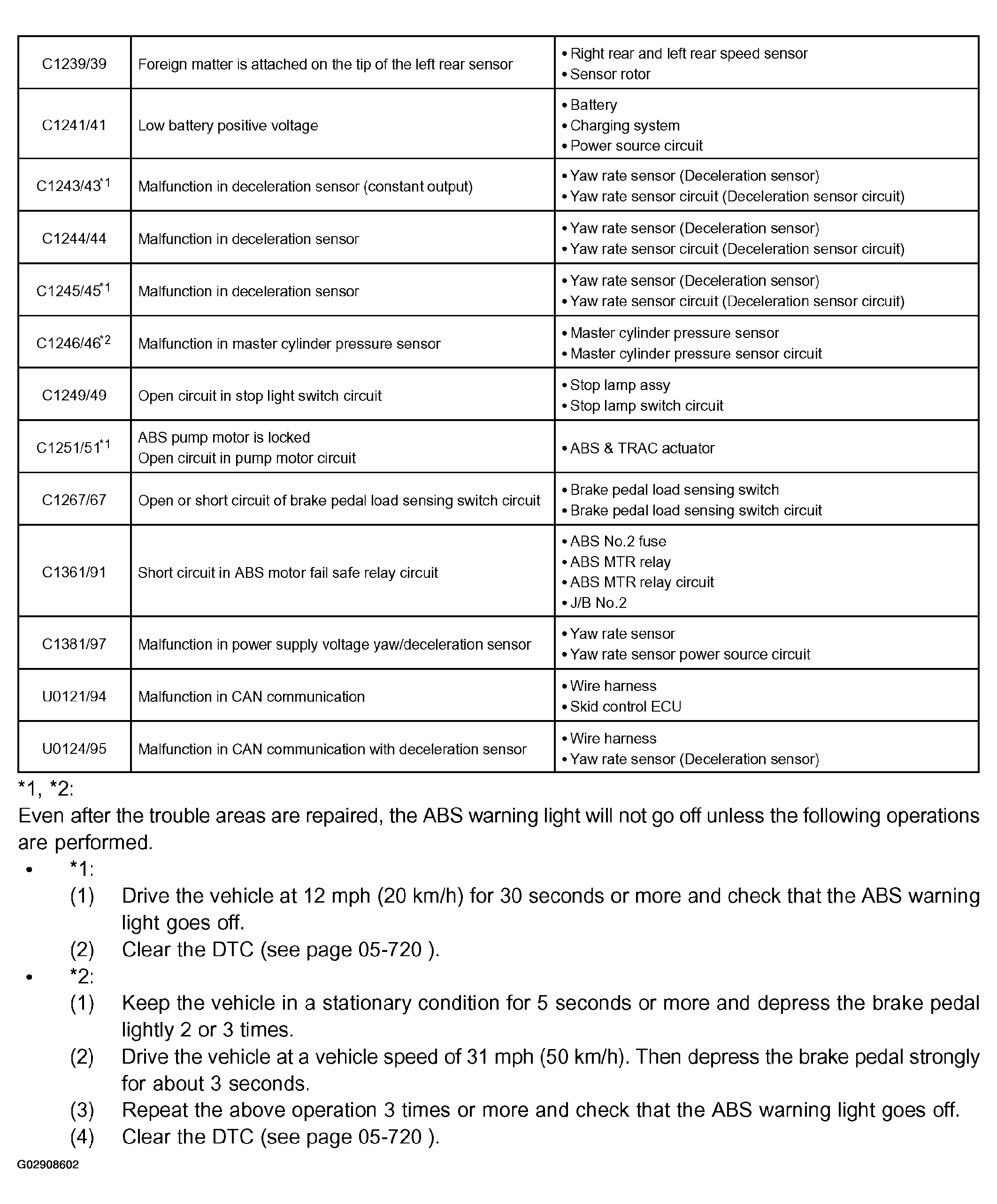

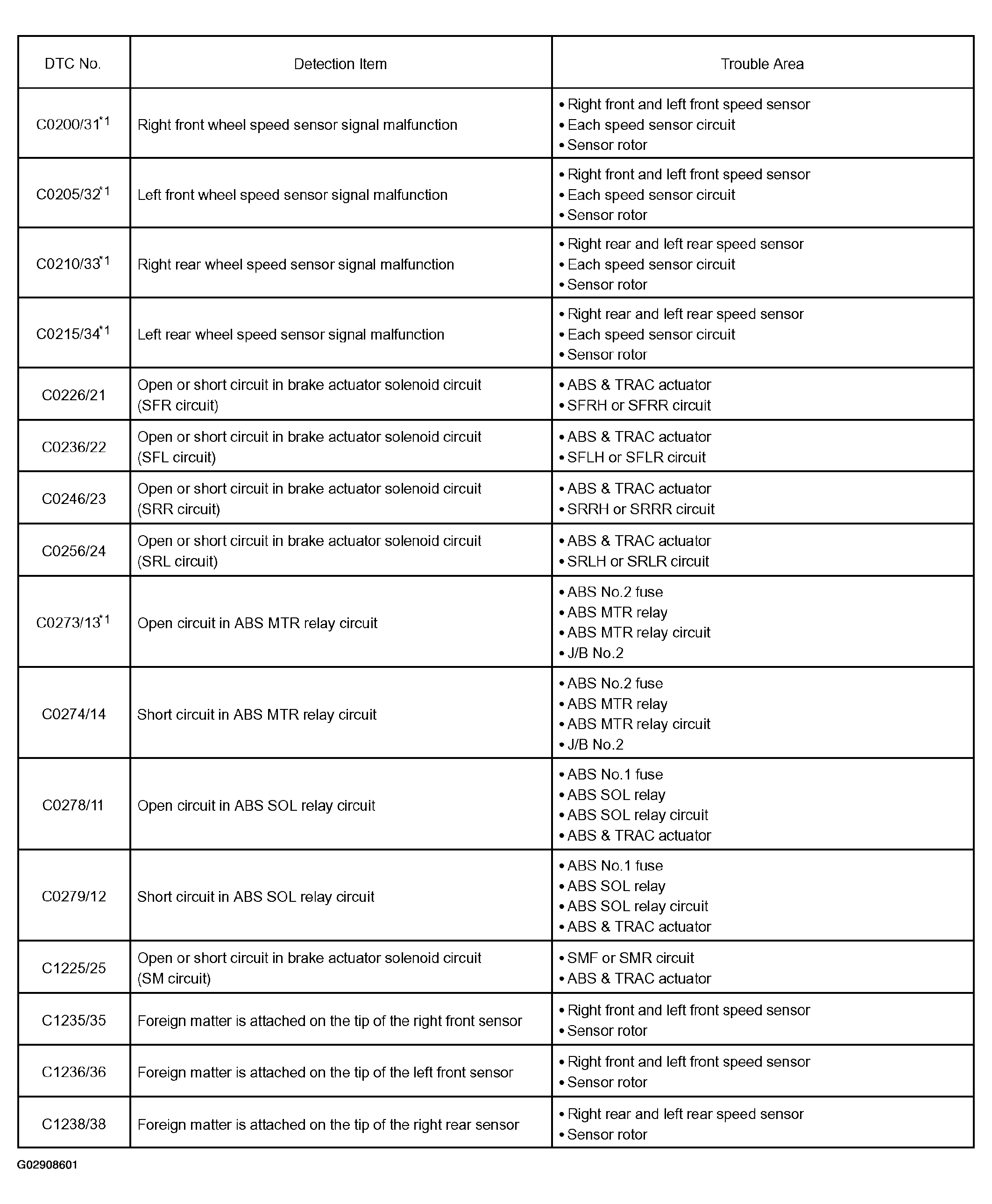

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C0200/31, C0205/32, C1235/35, C1236/36 | RIGHT/LEFT FRONT SPEED SENSOR & FOREIGN MATTER IS ATTACHED ON TIP OF RIGHT/LEFT FRONT SENSOR |
| DTC C0210/33, C0215/34, C1238/38, C1239/39 | RIGHT/LEFT REAR SPEED SENSOR & FOREIGN MATTER IS ATTACHED ON TIP OF RIGHT/LEFT REAR SENSOR |
| DTC C0226/21, C0236/22, C0246/23, C0256/24, C1225/25 | SFR/SFL/SRR/SRL/SMC SOLENOID CIRCUIT |
| DTC C0273/13, C0274/14, C1361/91 | OPEN/SHORT CIRCUIT IN ABS MOTOR RELAY CIRCUIT & SHORT CIRCUIT IN ABS MOTOR FAIL SAFE RELAY CIRCUIT |
| DTC C0278/11, C0279/12 | OPEN/SHORT CIRCUIT IN ABS SOLENOID RELAY CIRCUIT |
| DTC C1201/51 | ENGINE CONTROL SYSTEM MALFUNCTION |
| DTC C1203/53 | ECM COMMUNICATION CIRCUIT MALFUNCTION |
| DTC C1210/36, C1336/39 | ZERO POINT CALIBRATION OF YAW RATE SENSOR UNDONE |
| DTC C1223/43 | ABS CONTROL SYSTEM MALFUNCTION |
| DTC C1224/44 | NE SIGNAL CIRCUIT |
| DTC C1231/31 | MALFUNCTION IN STEERING ANGLE SENSOR CIRCUIT |
| DTC C1232/32, C1234/34, C1243/43, C1244/44, C1245/45, C1381/97 | MALFUNCTION IN DECELERATION SENSOR, MALFUNCTION IN YAW RATE SENSOR & MALFUNCTION IN POWER SUPPLY VOLTAGE YAW/DECELERATION SENSOR |
| DTC C1241/41 | LOW BATTERY POSITIVE VOLTAGE |
| DTC C1246/46 | MALFUNCTION IN MASTER CYLINDER PRESSURE SENSOR |
| DTC C1249/49 | OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT |
| DTC C1251/51 | PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN PUMP MOTOR GROUND |
| DTC C1267/67 | Brake Pedal Load Sensing Switch |
