Home >> Toyota >> 2004 >> Highlander Limited, FWD >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Abs With EBD & BA & TRAC & VSC System - Diagnostics >> DTC C1251/51: Pump Motor Is Locked/Open Circuit In Pump Motor Ground >> Wiring Diagram

DTC C1251/51: Pump Motor Is Locked/Open Circuit In Pump Motor Ground: Wiring Diagram

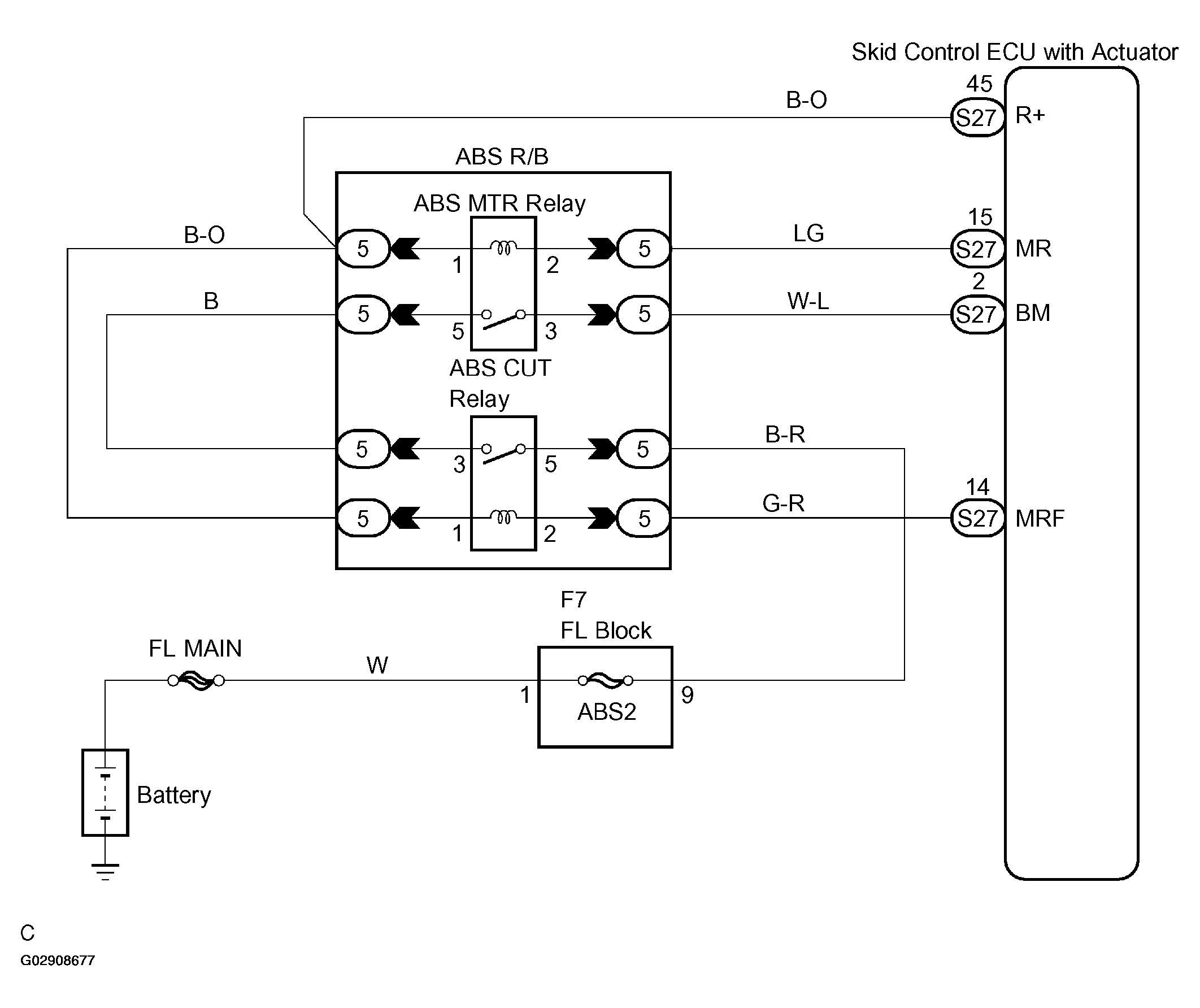

Fig 1: Identifying Wiring Diagram

G02908677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
