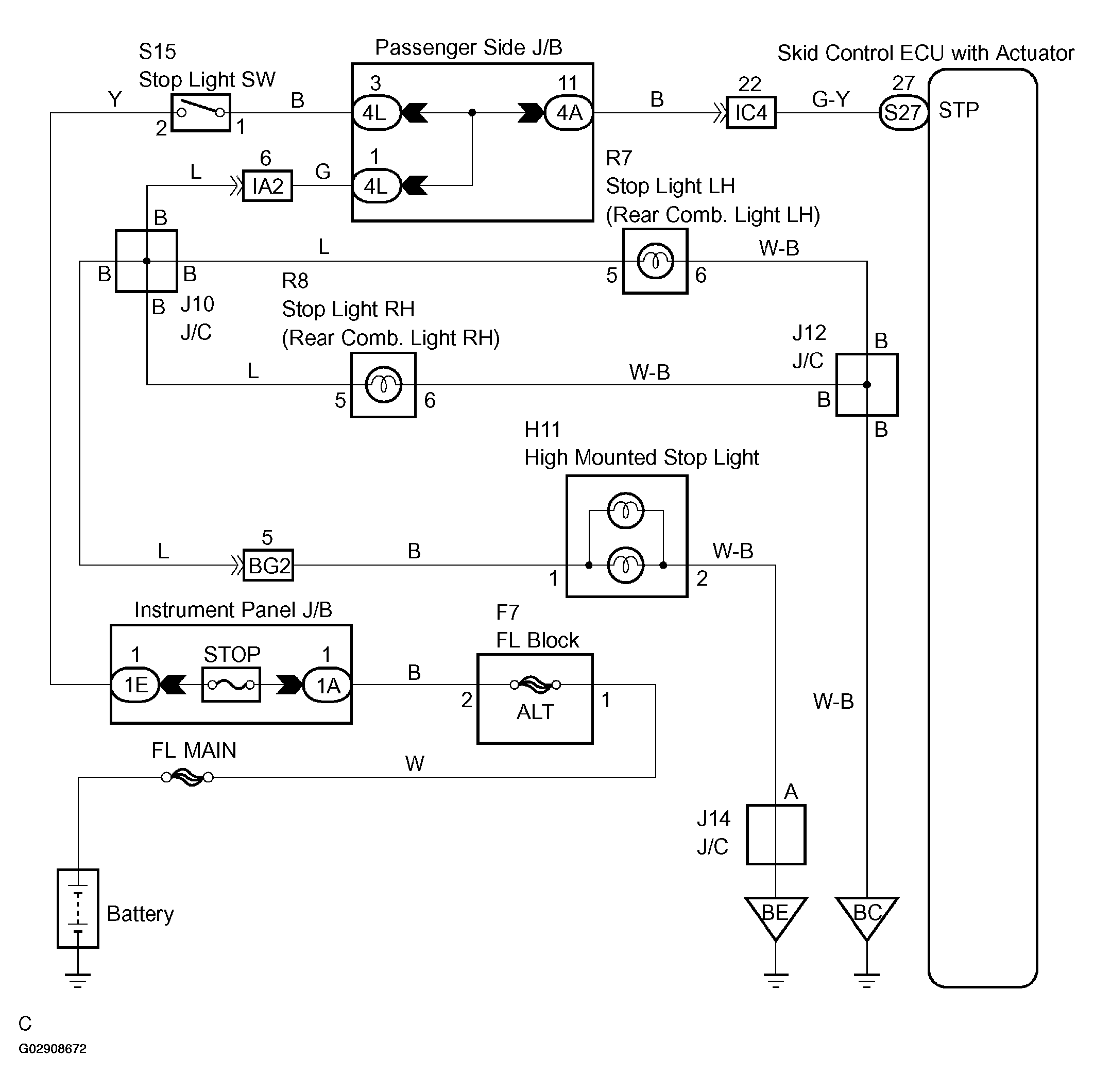

DTC C1249/49: Open Circuit In Stop Light Switch Circuit: Wiring Diagram

Fig 1: Identifying Wiring Diagram

G02908672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
