Inspection Procedure

HINT:

Start the inspection from step  1 when using the hand-held tester and start from step  2 when not using the hand-held tester.

1. READ VALUE OF HAND-HELD TESTER (MASTER CYLINDER PRESSURE SENSOR)
   1. Connect the hand-held tester to the DLC3.
   2. Start the engine.
   3. Select the DATA LIST mode on the hand-held tester.
      MEASUREMENT ITEM / RANGE (DISPLAY) CHART



      Item	Measurement Item / Range (Display)	Normal Condition
      MAS CYL PRS 1	Master cylinder pressure sensor 1 reading / min.: 0 V, max.: 5 V	When brake pedal is released: 0.3 to 0.9 V

   4. Check that the brake fluid pressure value of the master cylinder pressure sensor indicated on the hand-held tester, changes when the brake pedal is depressed.

      Standard:

      Brake fluid pressure value should change.

   1. NG: Go to step 2
   2. OK: REPLACE ABS & TRACTION ACTUATOR ASSY (See  REPLACEMENT  )
2. INSPECT SKID CONTROL ECU TERMINAL VOLTAGE (STP TERMINAL)
   1. Disconnect the skid control ECU connector.
   2. Measure the voltage according to the value (s) in the table below.

      Standard:

      SPECIFICATION TESTER CONNECTION



      Tester Connection	Switch condition	Specified Condition
      S27-27 (STP) -Body ground	Brake pedal depressed	8 to 14 V
      S27-27 (STP) -Body ground	Brake pedal released	Below 1 V

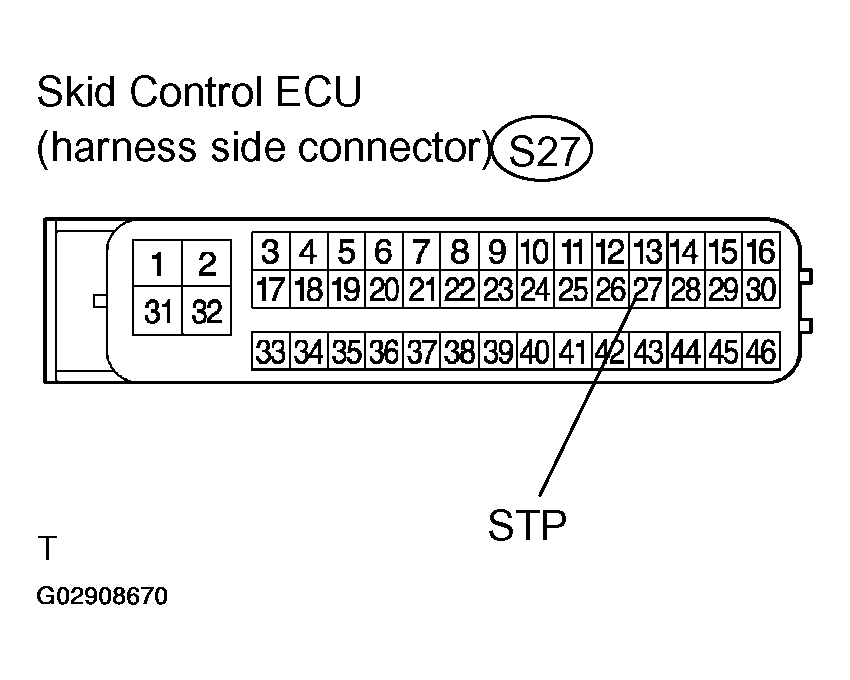

      Fig 1: Disconnecting Skid Control ECU Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG: CHECK AND REPLACE STOP LIGHT SWITCH CIRCUIT
   2. OK: REPLACE ABS & TRACTION ACTUATOR ASSY (See  REPLACEMENT  )
