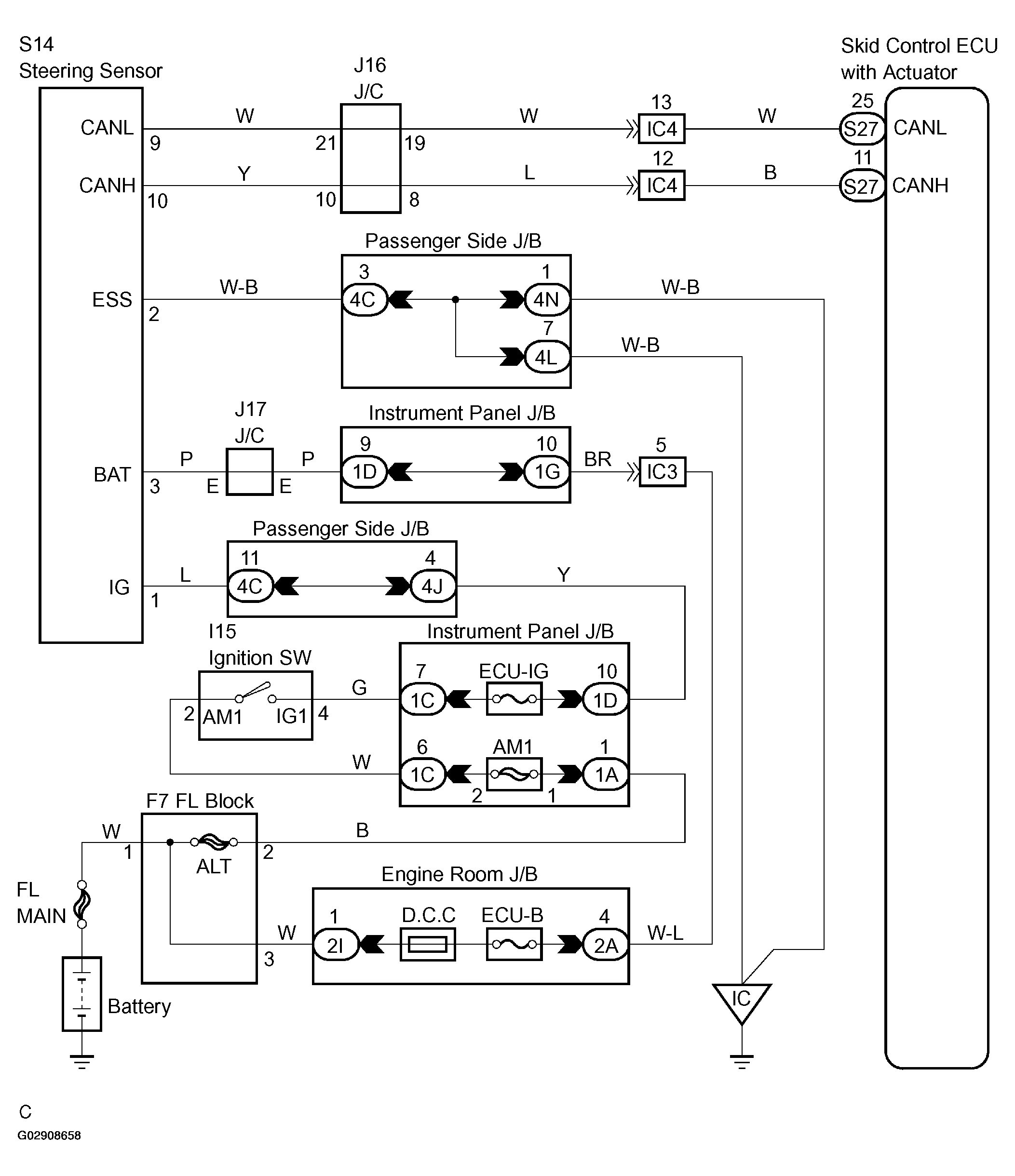

DTC C1231/31: Malfunction In Steering Angle Sensor Circuit: Wiring Diagram

Fig 1: Identifying Wiring Diagram

G02908658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
