DTC C1203/53: ECM Communication Circuit Malfunction: Wiring Diagram

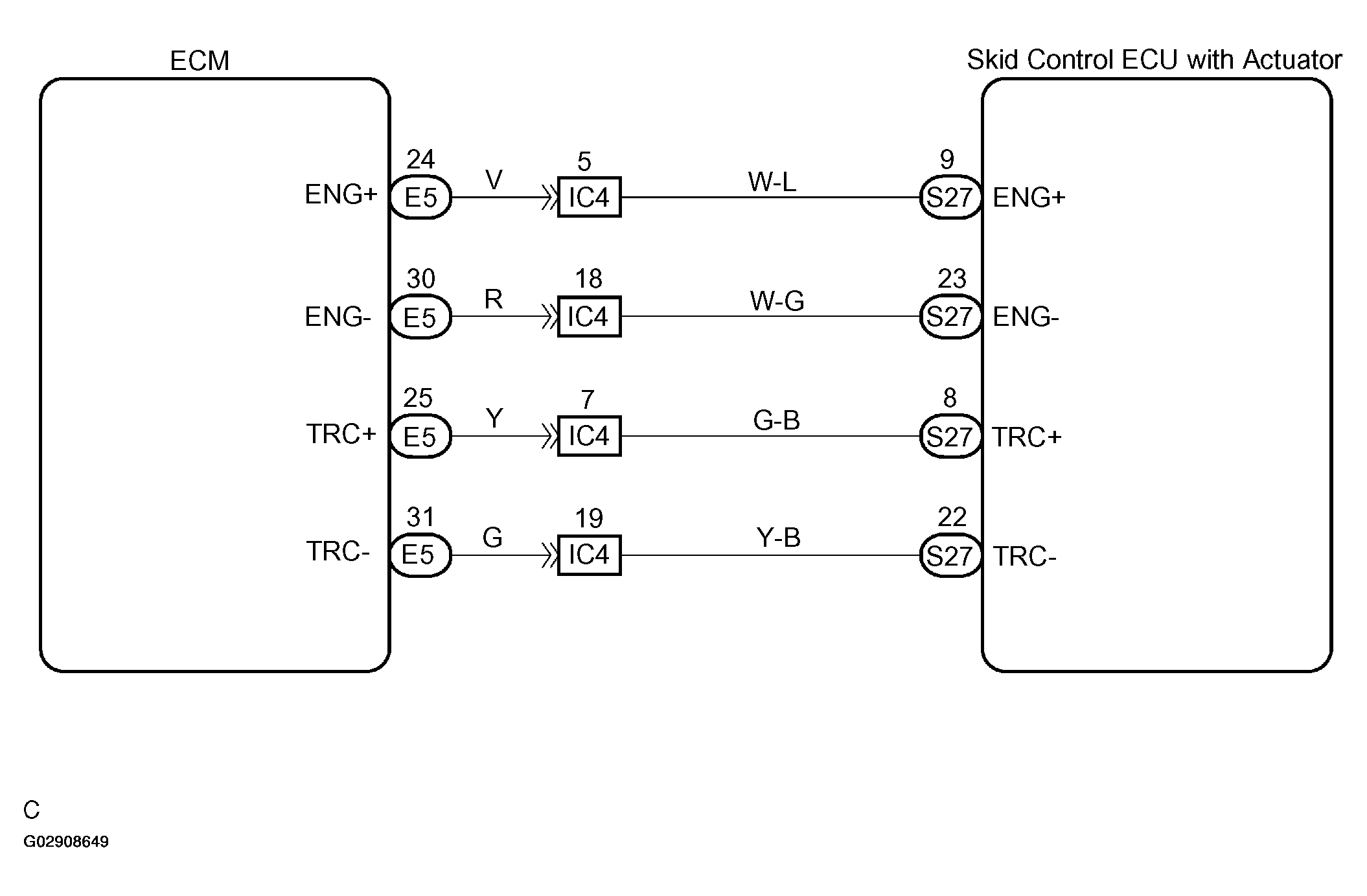

Fig 1: Identifying Wiring Diagram

G02908649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
