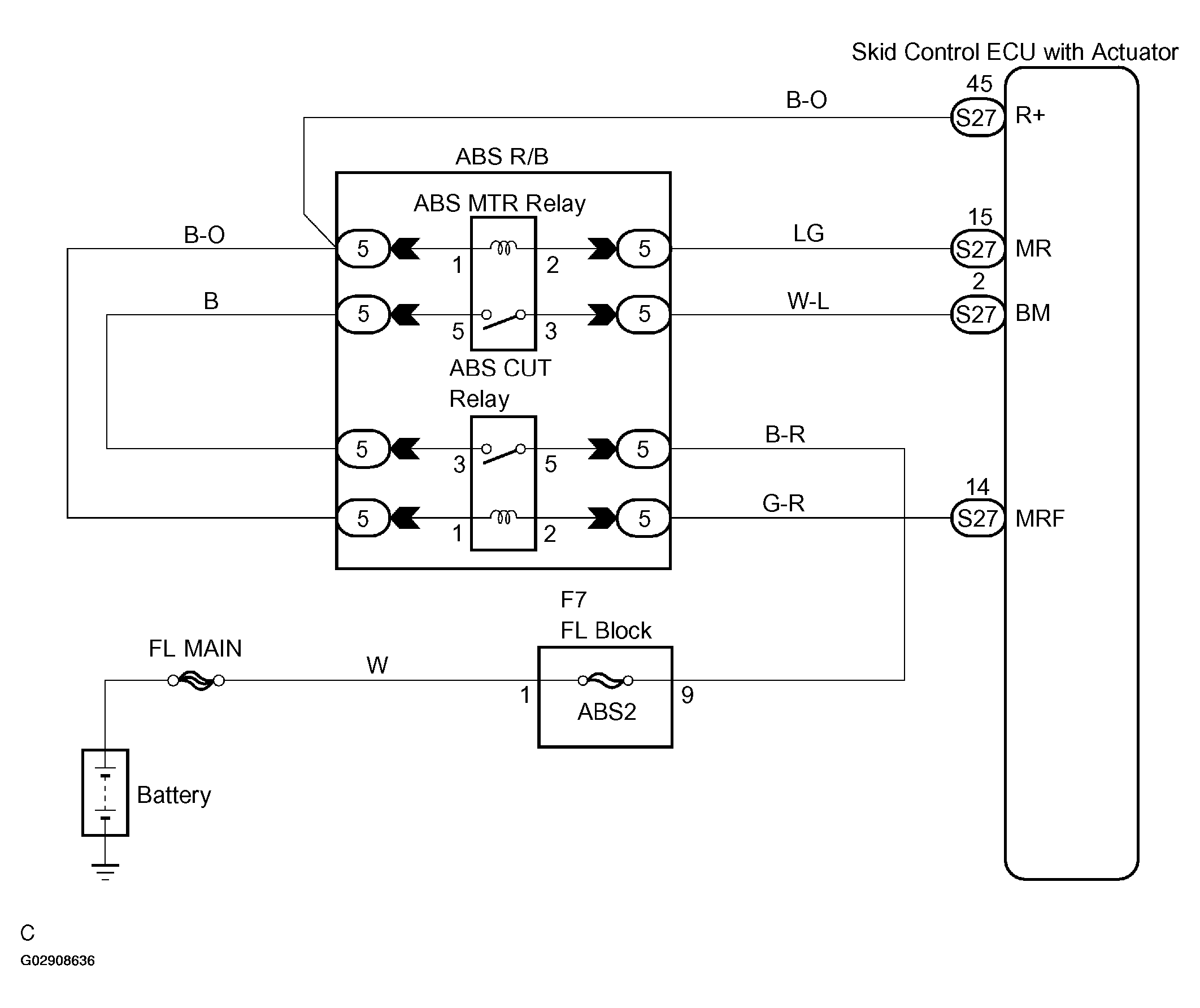

DTC C0273/13, C0274/14, C1361/91: Open/Short Circuit In Abs Motor Relay Circuit & Short Circuit In Abs Motor Fail Safe Relay Circuit: Wiring Diagram

Fig 1: Identifying Wiring Diagram
G02908636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
