DTC C0200/31, C0205/32, C1235/35, C1236/36: Right/Left Front Speed Sensor & Foreign Matter Is Attached On Tip Of Right/Left Front Sensor: Wiring Diagram

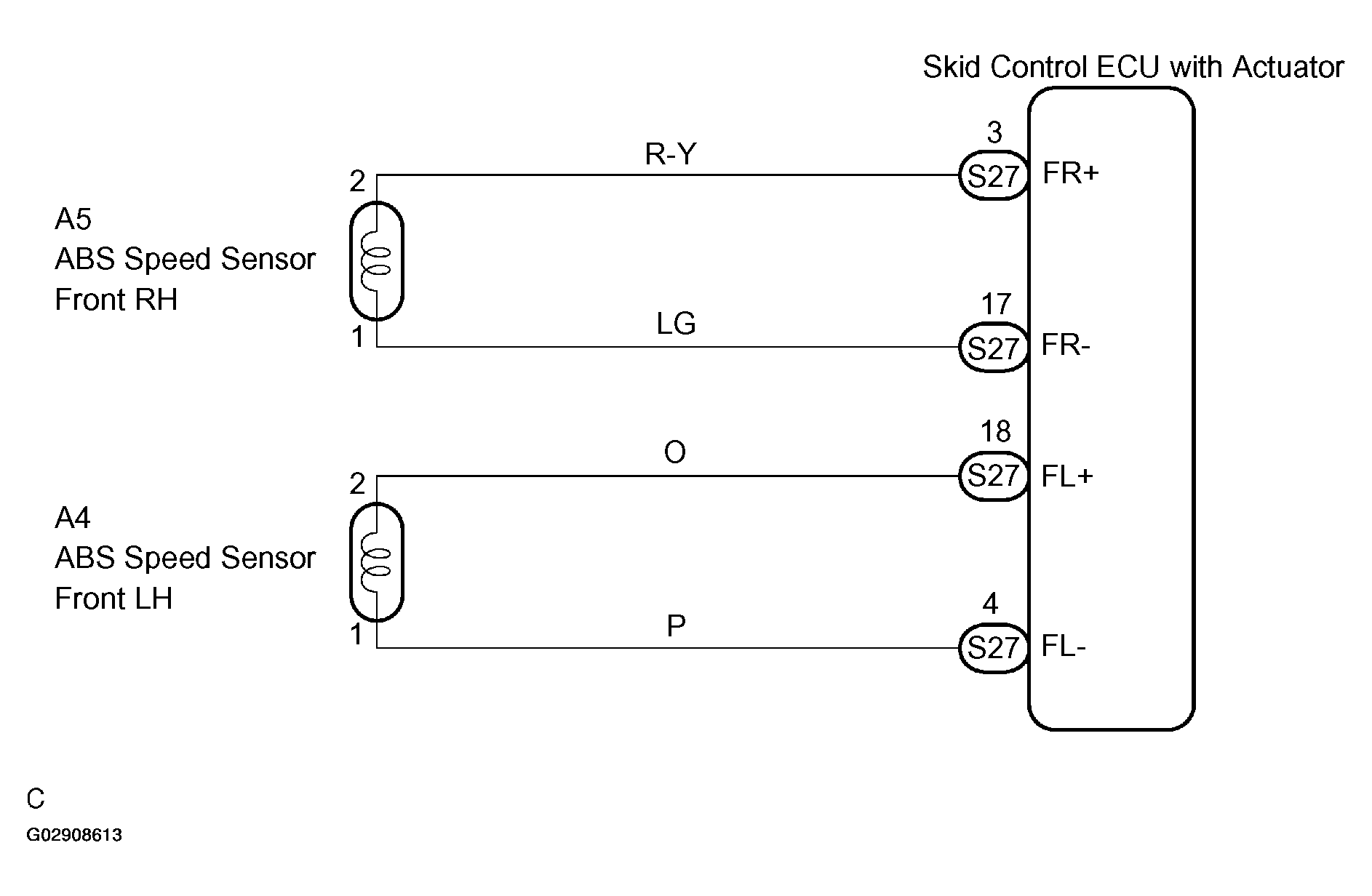

Fig 1: Identifying Wiring Diagram
