Brake Warning Light Circuit: Wiring Diagram

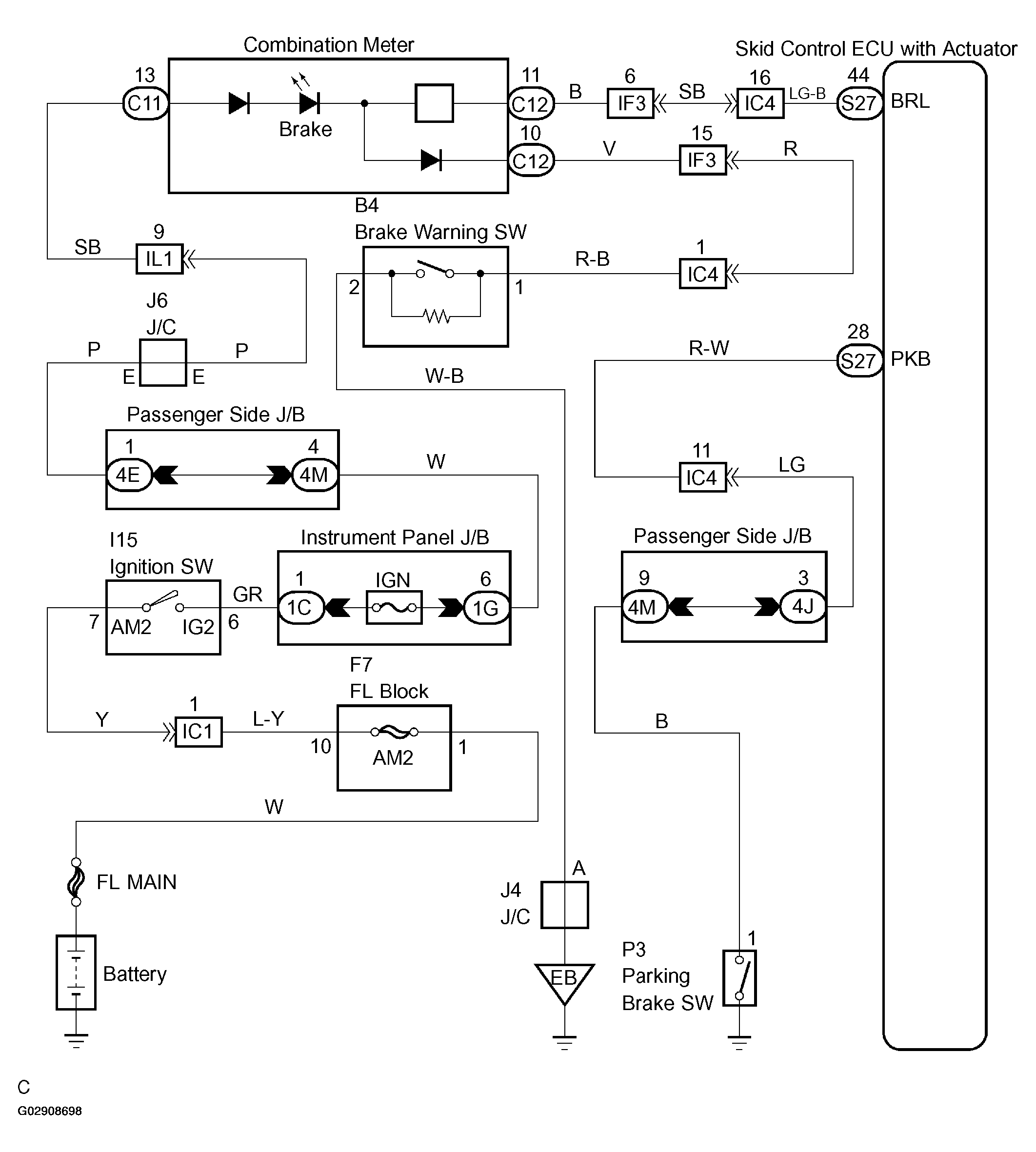

Fig 1: Identifying Circuit Description

G02908698

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
