Abs Warning Light Circuit (Does Not Light Up): Wiring Diagram

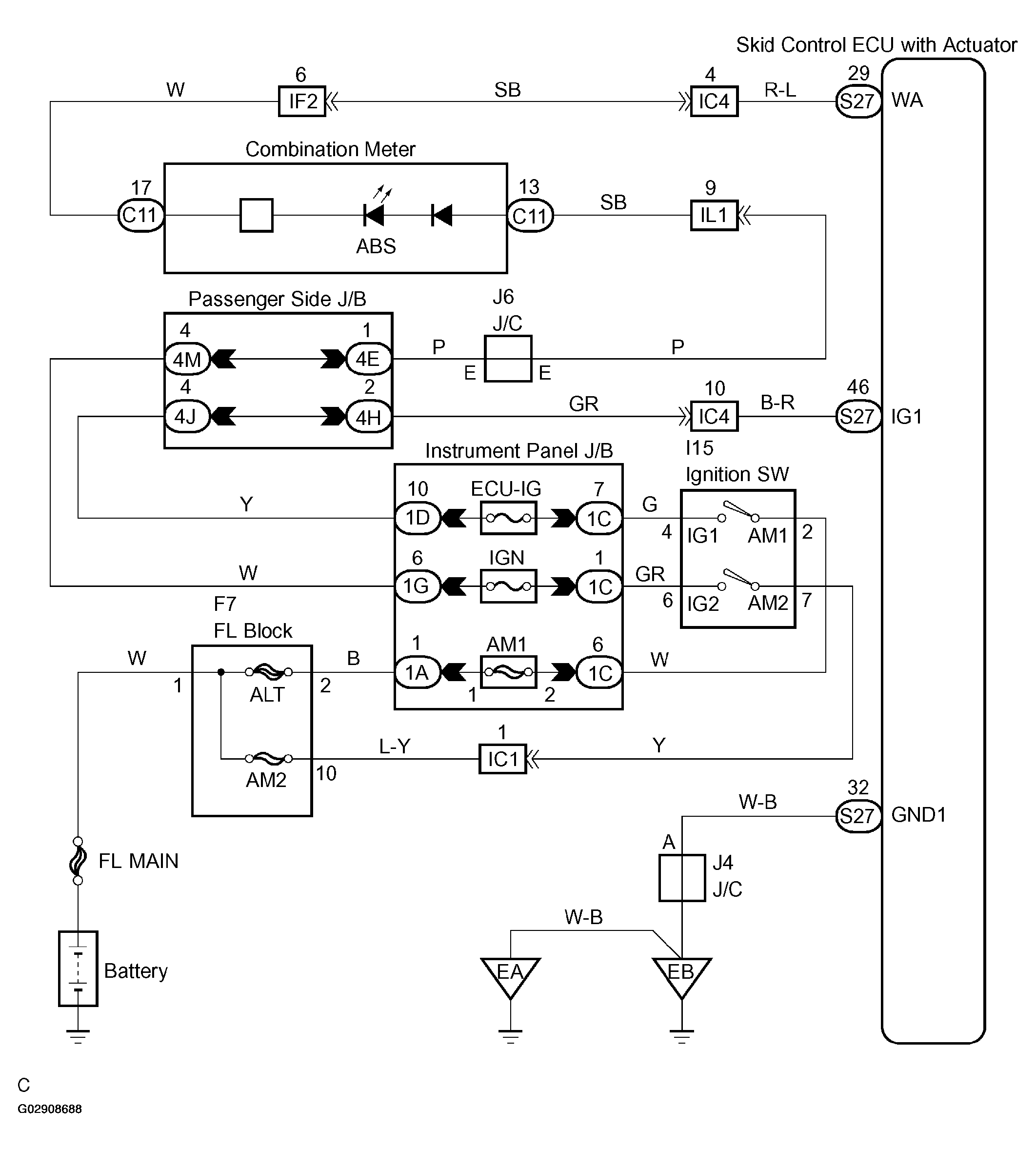

Fig 1: Identifying Wiring Diagram
G02908688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
