Windshield Wiper Switch ASSY: Replacement

HINT:

Installation is in the reverse order of removal.

1. REMOVE STEERING COLUMN COVER LWR (SEE  OVERHAUL  )
2. REMOVE STEERING COLUMN COVER UPR (SEE  OVERHAUL  )
3. REMOVE WINDSHIELD WIPER SWITCH ASSY
   1. Disconnect the connector.
   2. Using a screwdriver, disengage the claw, and remove the windshield wiper switch assy.
   NOTE: Pressing the claw hard breaks the claw.

   HINT:

   Tape the screwdriver tip before use.

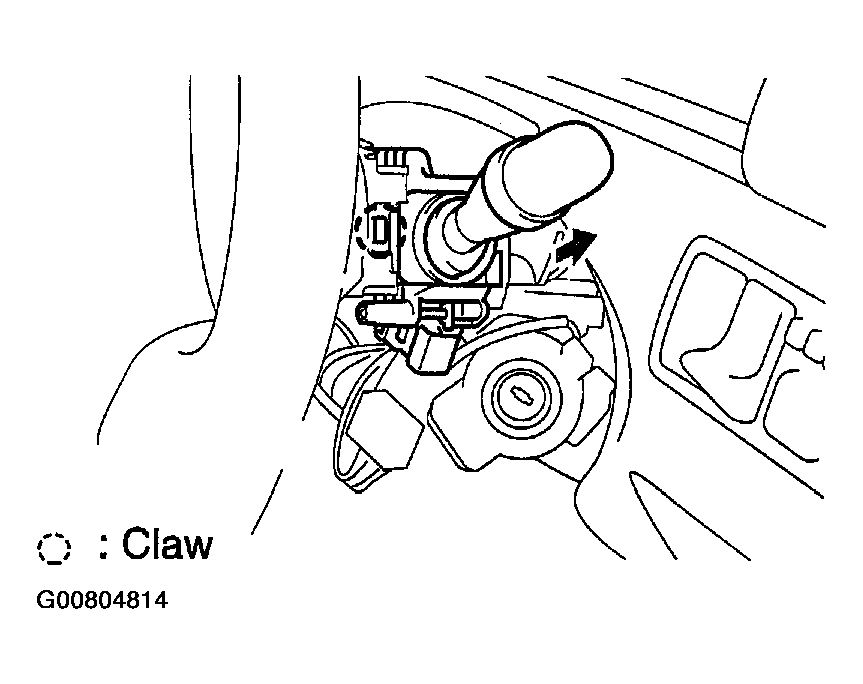

   Fig 1: Disengaging Claw & Removing Windshield Wiper Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
