Diagnostic Start-Up/Finish

HINT:

• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.
• After the ignition switch is turned on, check that the map is displayed before starting the diagnostic mode. Otherwise, some items cannot be checked.

1. There are 2 methods to start diagnostic mode. Start the mode by using one of them.
2. Method 1
   1. Start the engine.
   2. While pressing and holding "INFO" switch, operate light control switch, OFF --> TAIL --> OFF --> TAIL --> OFF --> TAIL --> OFF.
   3. The diagnostic mode starts and the service check screen ("System Check Mode") will be displayed. Service inspection starts automatically and the result will be displayed.
      Fig 1: Diagnostic Mode - Method 1

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Method 2
   1. Start the engine.
   2. Switch to the "Display Check" screen.
   3. From the display adjustment screen, touch the corners of the screen in the following order: upper left ? lower left ?upper left ? lower left ? upper left ? lower left.
   4. The diagnostic mode starts and "Service Check" screen will be displayed. Service inspection starts automatically and the result will be displayed.

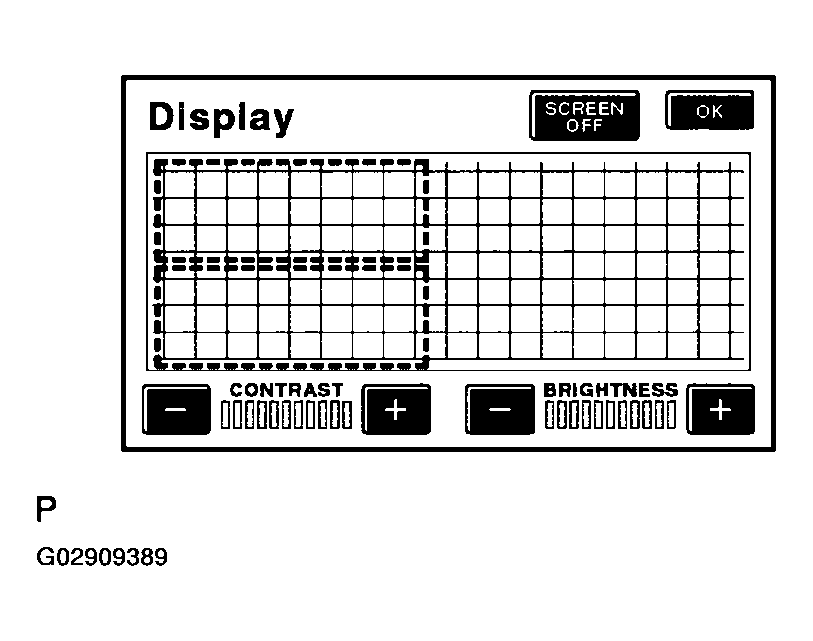

      Fig 2: Diagnostic Mode - Method 2

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Diagnosis MENU
   1. Diagnostic screen will be displayed by pressing the menu switch on the service check screen.

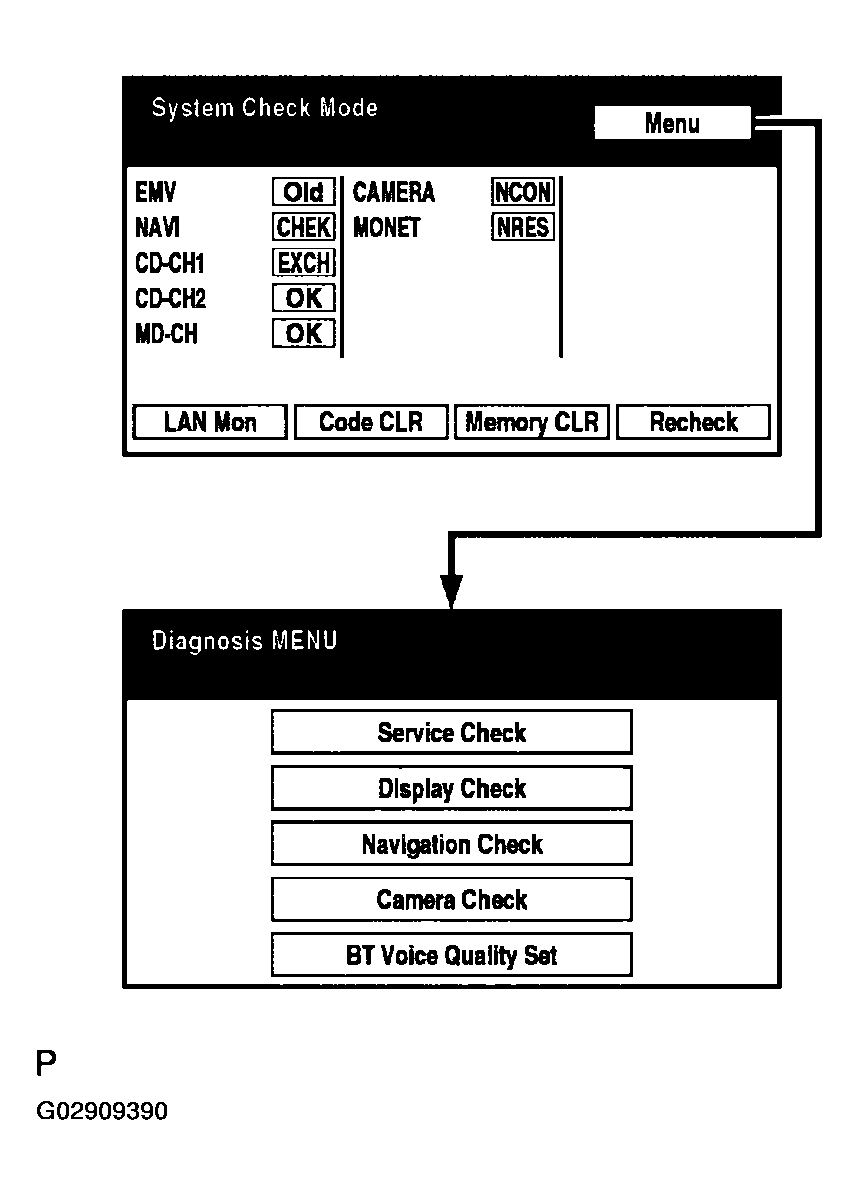

      Fig 3: Diagnostic Mode - Diagnosis Menu

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. There are 2 methods to exit. Use one of them.
   1. Turn the ignition switch off.
   2. Press the "Display" switch for 3 seconds.
