Seat Belt Warning Lamp For Driver's Seat Does Not Operate: Wiring Diagram

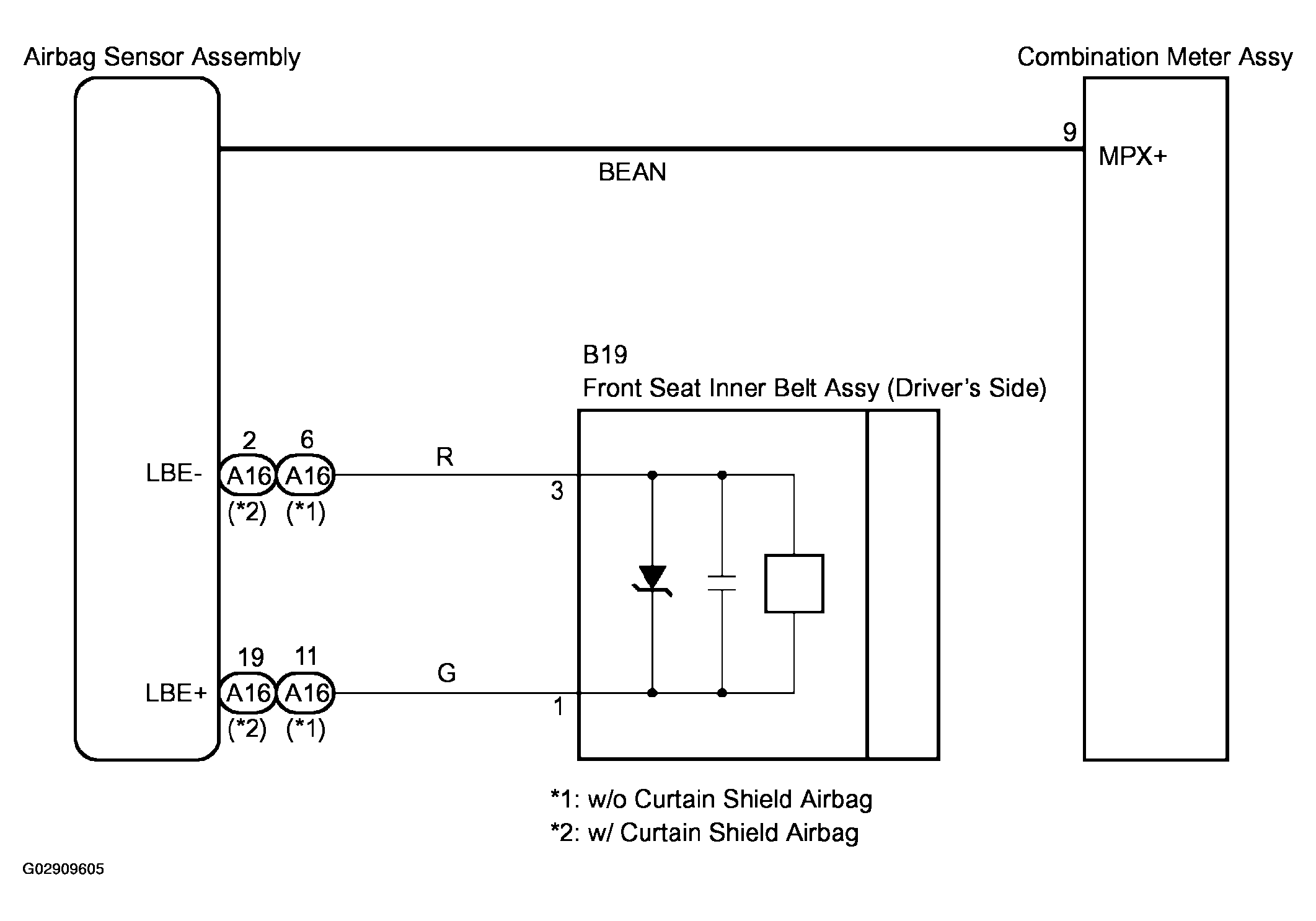

Fig 1: Identifying Seat Belt Warning Lamp Wiring Diagram

G02909605

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
