Malfunction In Water Temperature Receiver Gauge: Wiring Diagram

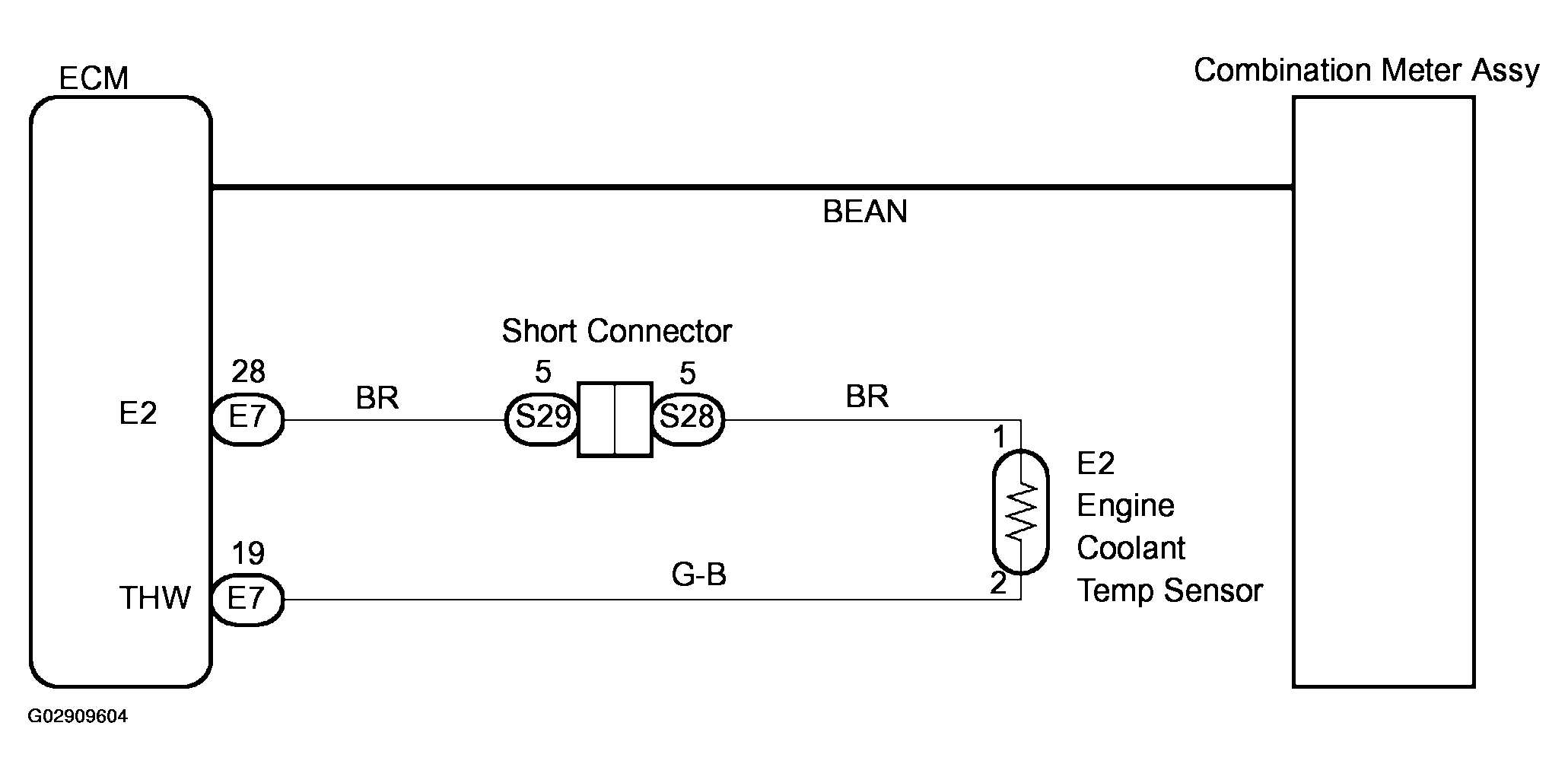

Fig 1: Identifying Malfunction In Water Temperature Receiver Gauge Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
