Malfunction In Tachometer: Wiring Diagram

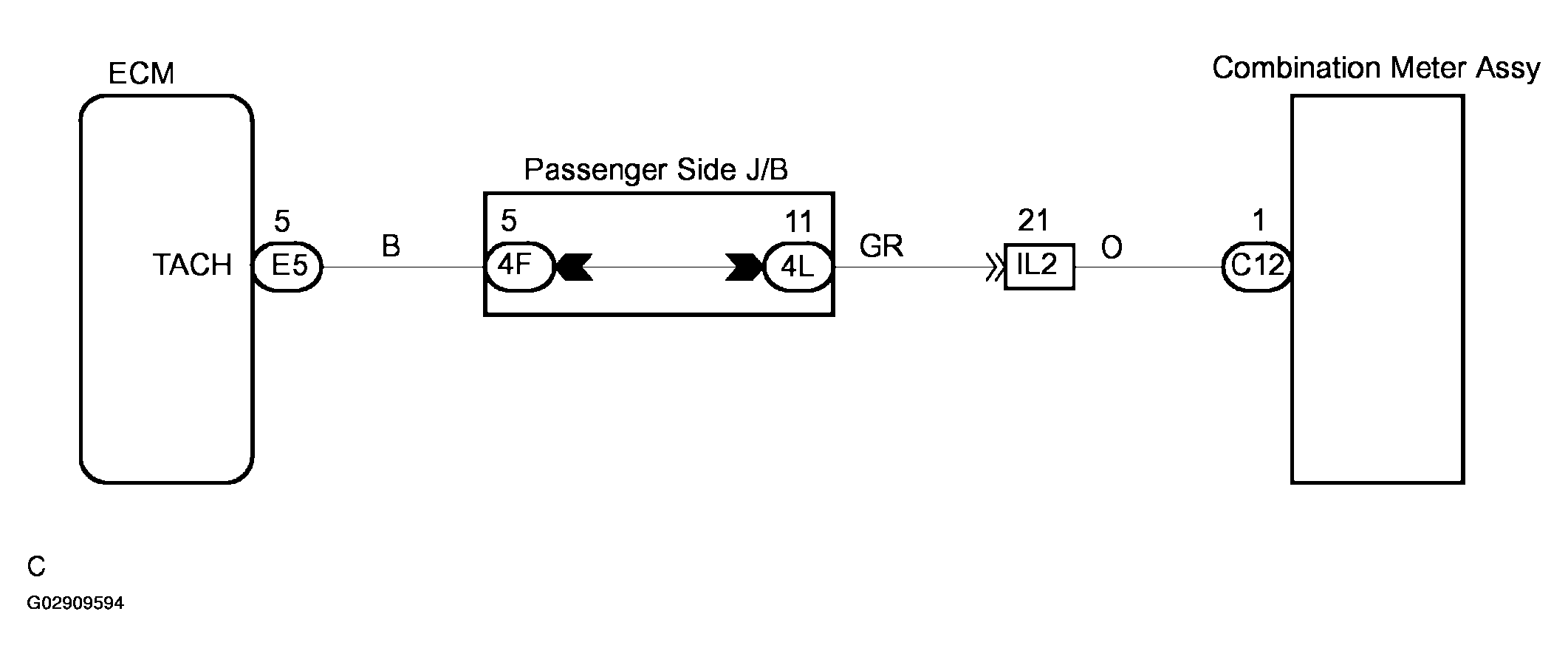

Fig 1: Identifying Malfunction In Tachometer Wiring Diagram

G02909594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
