Malfunction In Fuel Receiver Gauge: Wiring Diagram

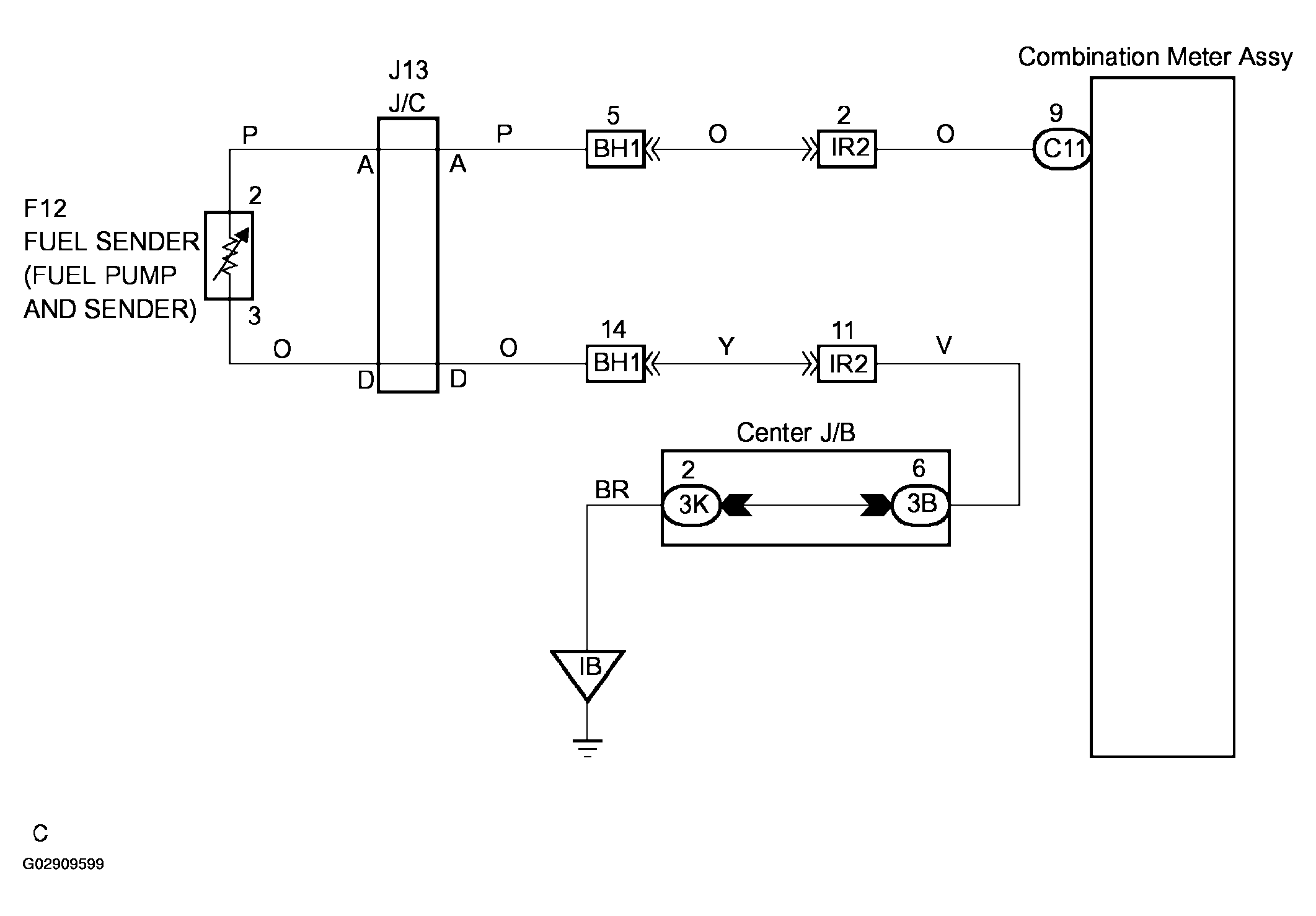

Fig 1: Identifying Malfunction In Fuel Receiver Gauge Wiring Diagram-

G02909599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
