Entire Combination Meter Does Not Operate: Wiring Diagram

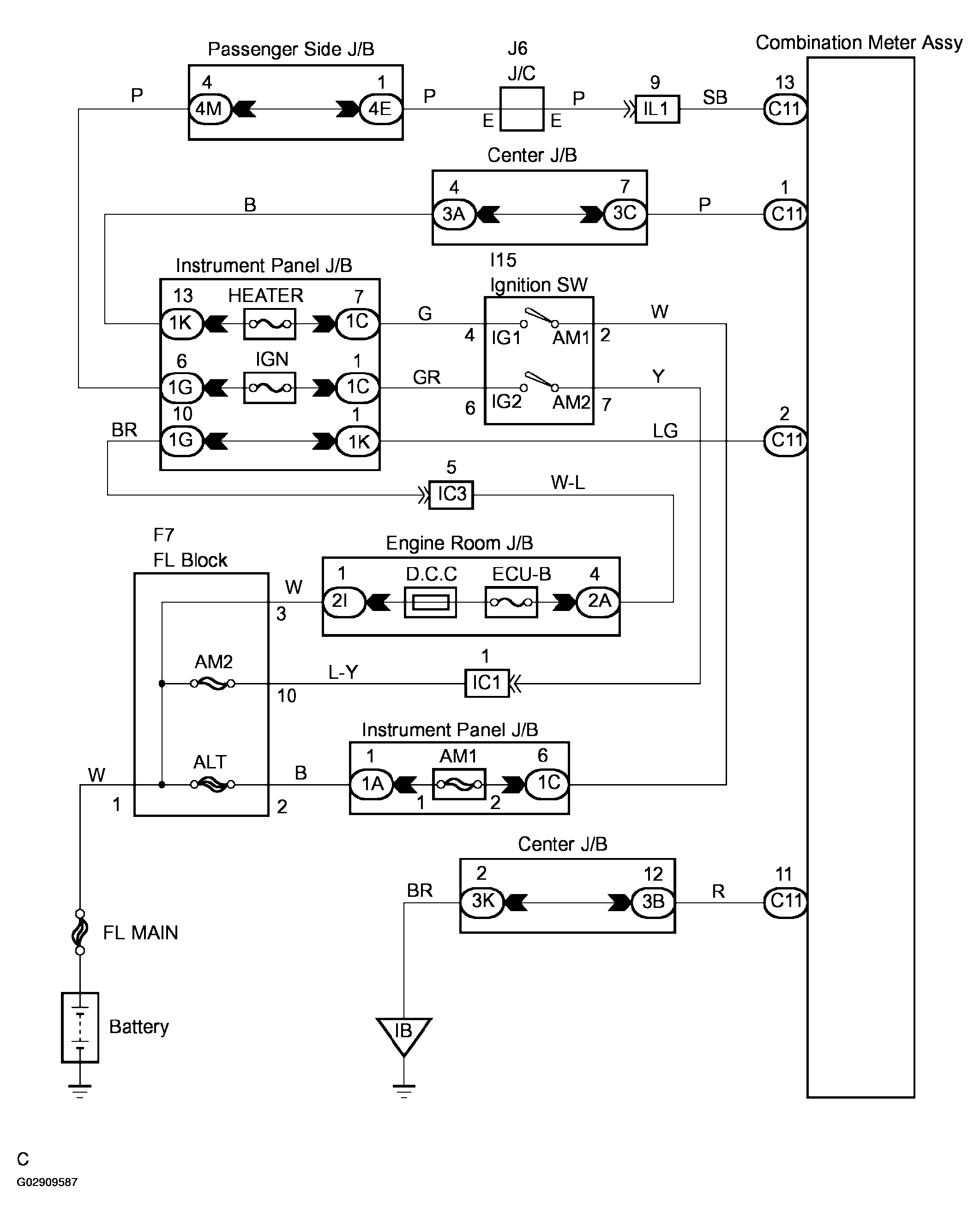

Fig 1: Identifying Combination Meter Wining Diagram

G02909587

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
