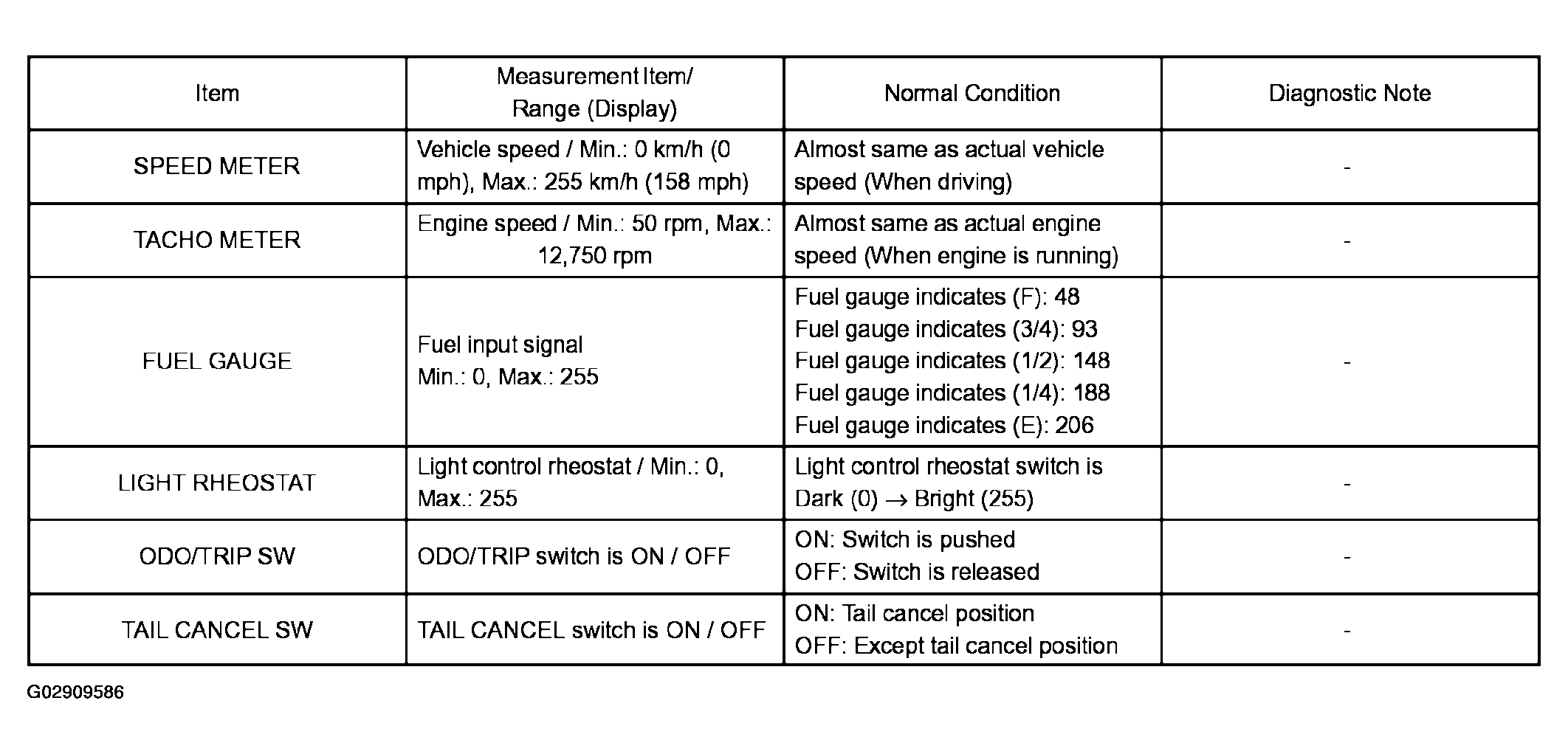

Data List/Active Test: Meter:
ACTION TEST DETAILS
| Item | Test Details | Diagnostic Note |
|---|---|---|
| SPEED METER | 0/40(25)/80(50)/120(75)/160(99)/200(124) km/h(mph) | - |
| TACHOMETER | 0rpm/1000rpm/2000rpm/3000rpm/4000rpm/5000rpm/6000rpm/7000rpm | - |
| FUEL GAUGE | OFF, METER F, 3/4, 1/2, 1/4, METER E, EMPTY | - |
| COOLANT TEMP | LOW, 60° C, 70° C, 80° C, NORMAL, 110°C, 120°C, HIGH | - |
| SHIFT INDIC | A/T indicator operation (P, R, N, D, S, 3, 2, L) | Confirm that the vehicle is stopped and engine idling |
| LOW FUEL WARN | Indicate. Lamp FUEL (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| D-BELT REMIND | Indicate. Lamp D-SEAT BELT (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| OIL PRESS WARN | Indicate. Lamp OIL (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| DISCHARGE WARN | Indicate. Lamp CHARGE (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| TAILLIGHT INDIC | Indicate. Lamp TAIL (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| CRUISE INDIC | Indicate. Lamp CRUISE (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| Rr FOG INDIC | Indicat3. Lamp Rr FOG (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| SRS WARN | Indicate. Lamp AIRBAG (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| TRC OFF INDIC | Indicate. Lamp TRAC (TRC) OFF (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| SLIP INDIC | Indicate. Lamp SLIP (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| O/D OFF INDIC | Indicate. Lamp O/D OFF (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| ODO/TRIP DISP | Indicate. ODOATRIP DISPLAY (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| A/T OIL TEMP | A/T OIL temperature operation (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| Fr FOG INDIC | Indicate. Lamp Fr FOG (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| TIRE PRESS WARN | Indicate. Lamp TIRE PRESS (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| DOOR WARN | Indicate. Lamp DOOR (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| ECT SNOW WARN | Indicate. Lamp ECT SNOW (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| KEY REMND BUZZR | Key remained buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| SEAT BELT BUZZR | Seat Belt buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| REVERSE BUZZER | Reverse buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| SSHFTRJCTBUZ | Sports Shift reject buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| SPEED BUZZER | Speed buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| WARNING BUZZER | Warning buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
