The Ambient Temperature Does Not Display: Wiring Diagram

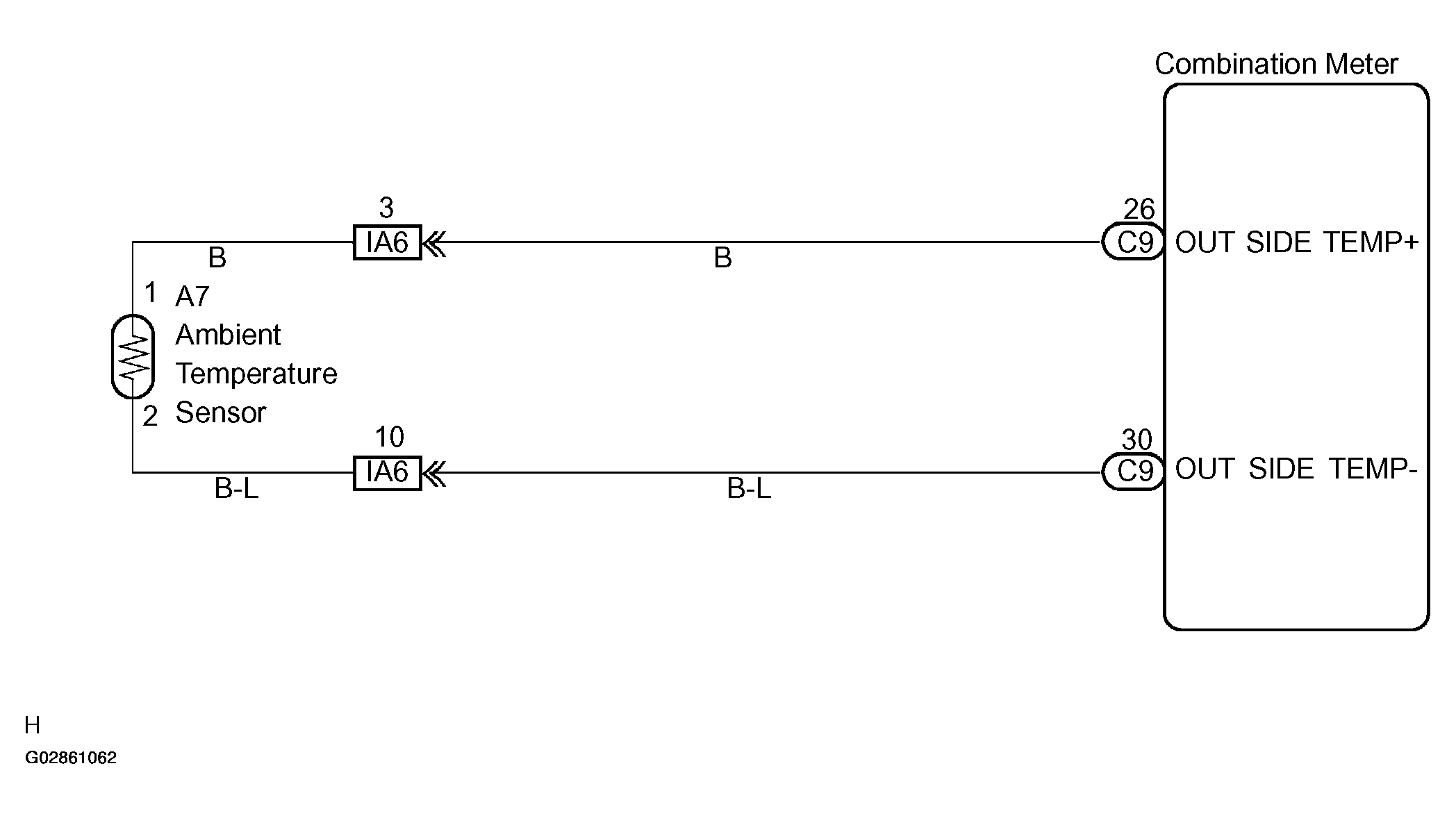

Fig 1: Wiring Diagram - Ambient Temperature Sensor

G02861062

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
