Terminals Of Ecu

Fig 1: Locating Terminals Of ECU
G02861027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

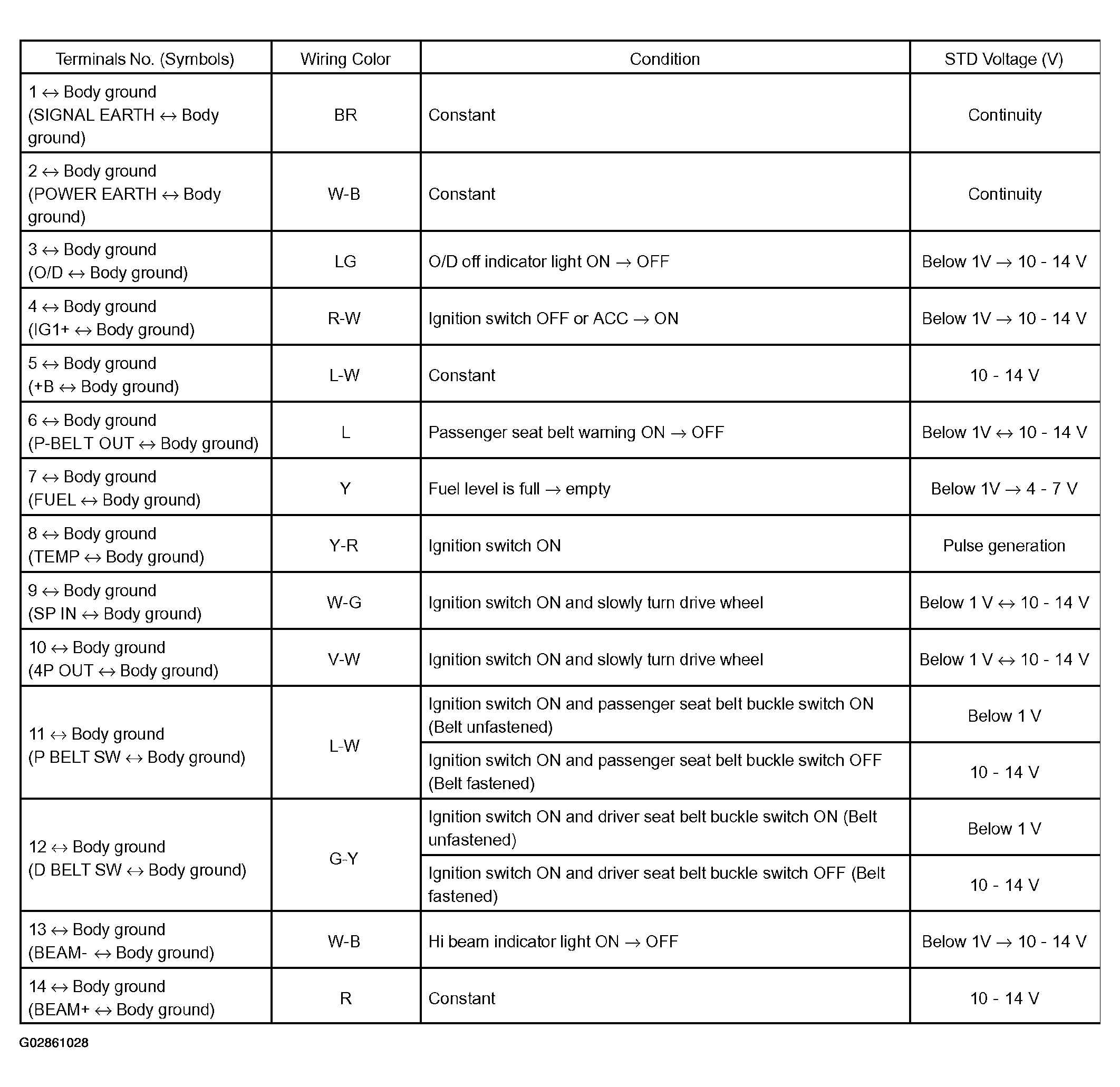

Fig 2: Terminals Of ECU Connectors Voltage And Continuity Chart (1 Of 2)
G02861028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

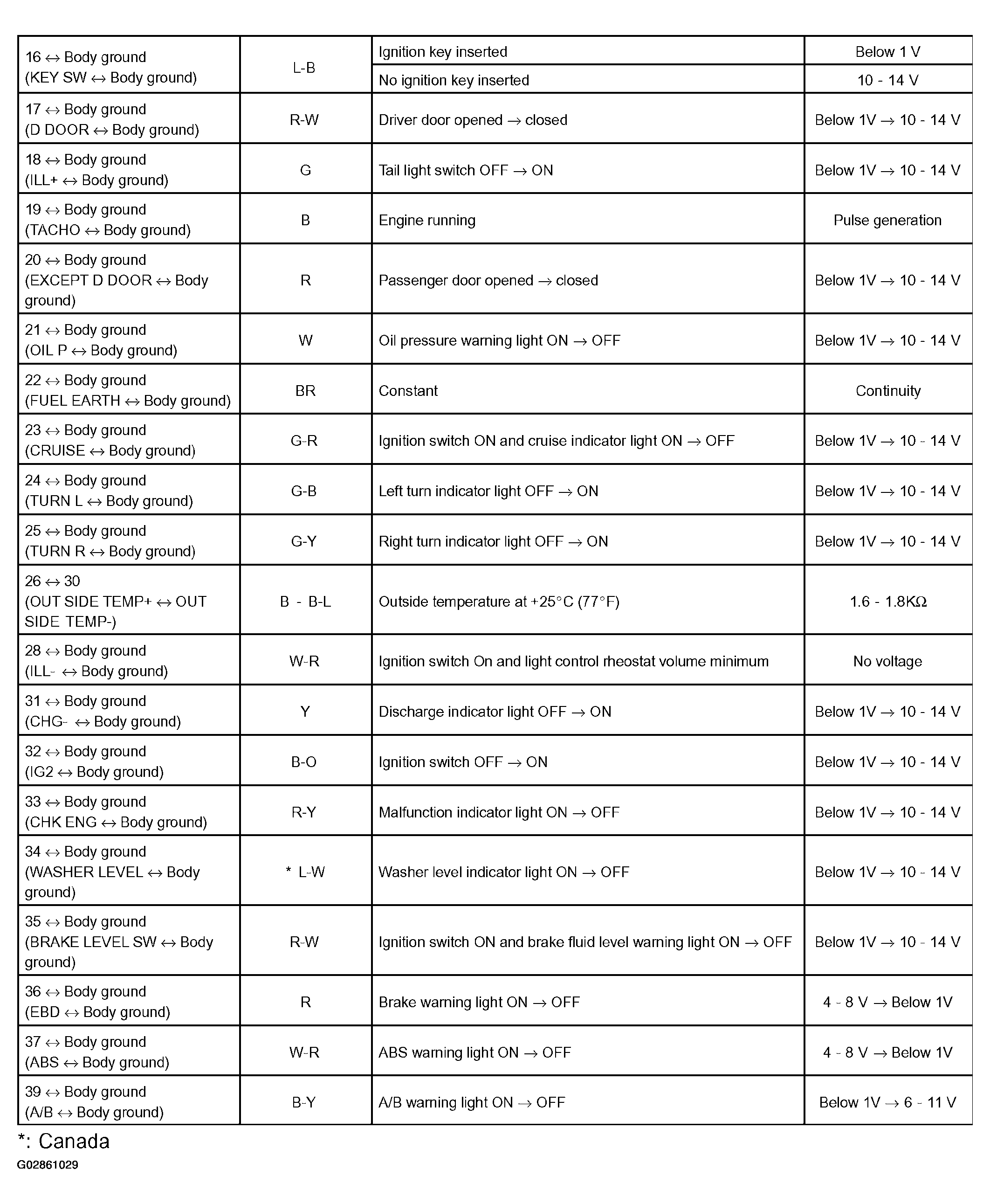

Fig 3: Terminals Of ECU Connectors Voltage And Continuity Chart (2 Of 2)
G02861029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
