Malfunction In Speedometer: Wiring Diagram

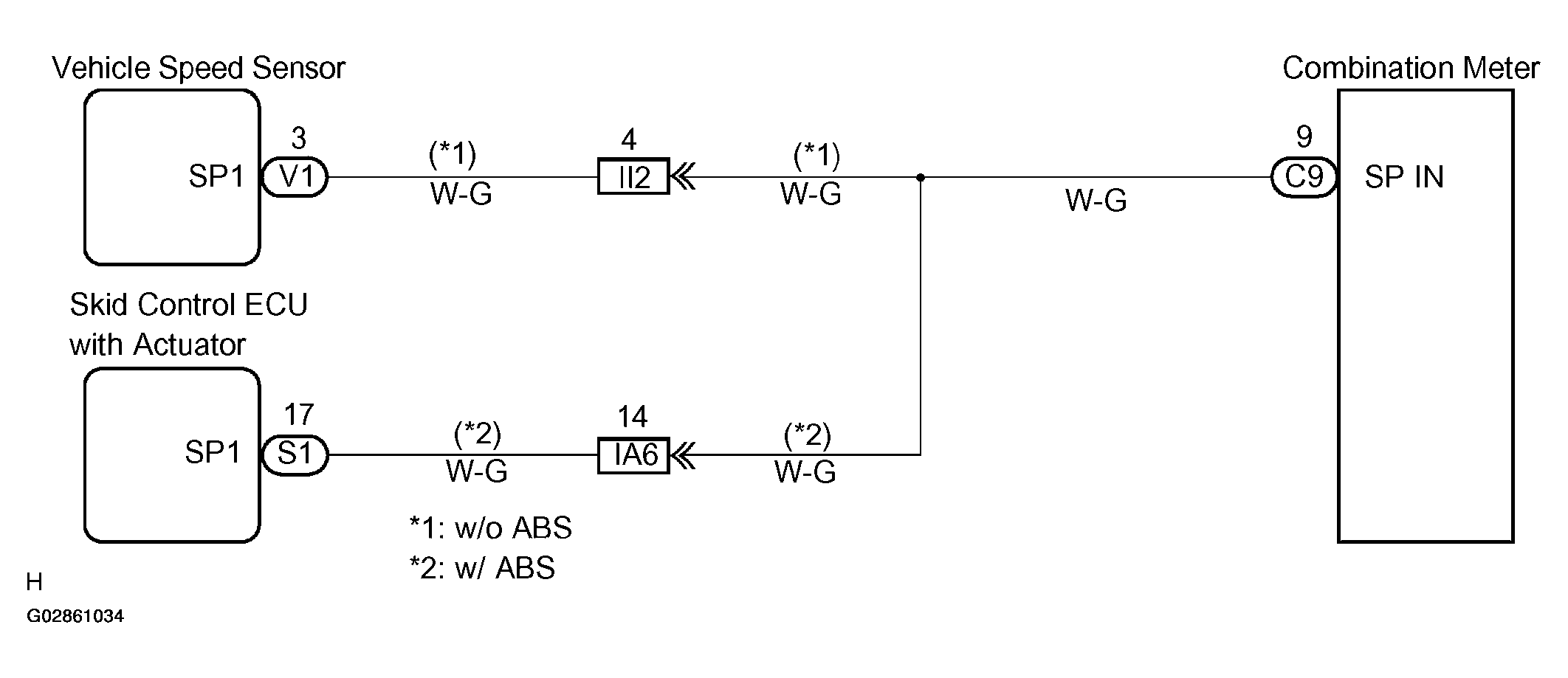

Fig 1: Wiring Diagram - Speedometer
G02861034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
