Malfunction In Clock: Wiring Diagram

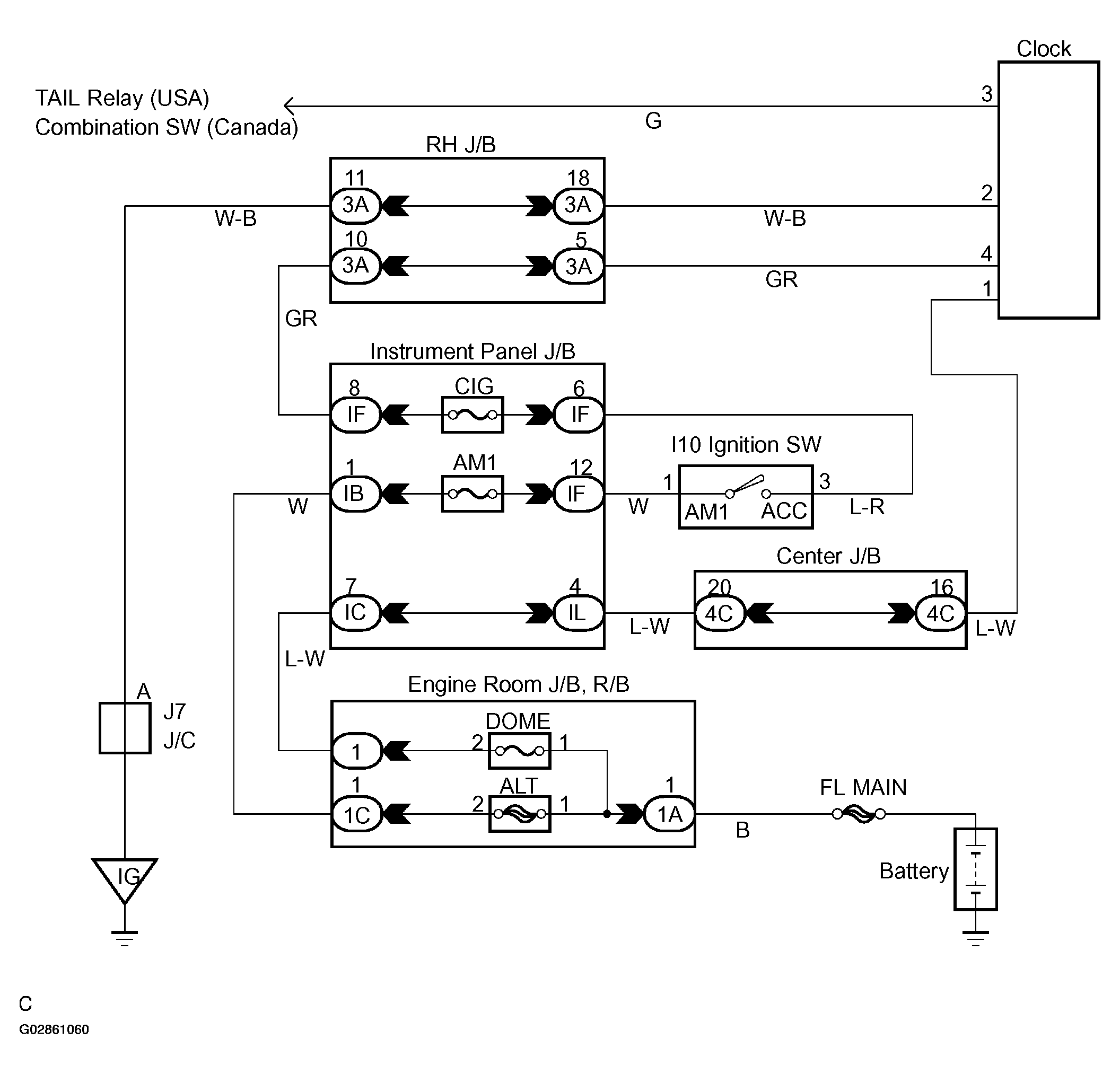

Fig 1: Wiring Diagram - Clock

G02861060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
